SOCIETY of MINIATURE RIFLE CLUBS

MINIATURE CALIBRE TARGETRY


....... Please be aware that specialist imagery on many of these pages may take longer than usual to load ..

TRAINING & SOLANO TARGETS..... LANDSCAPE TARGETS

SWIFT TRAINING RIFLE TARGETS ..... NOVELTY TARGETS ..... LEAGUES TARGETRY

Note the annual "SMRC" Historic Arms Matches
held during the first week of the NSRA August Bisley National Rifle Meeting


See also a comprehensive illustrated listing of "BRITISH TARGETS" from 1850 to 2000


The A.G. Parker catalogue of 1920 illustrated a page of the targets available for the Society of Miniature Rifle Clubs. Barely eighteen months after the end of the Great War, these targets included military style types in addition to the usual civilan club targets.

This catalogue is available on site in its entirety from the link on the CATALOGUES PAGE

By 1940, under the threat of a German invasion early in the Second World War,

the Society of Miniature Rifle Clubs issued their own catalogue of shooting accessories.

(Note that the sale public sale of rifles had been all but brought to a halt
by the requisitioning of all arms for military use)

Hereon are illustrated a representative few images of the range

of S.M.R.C. military style and civilian training targets.



The above target is more or less self explanatory, being shot at a

The "Codrington House" address of the S.M.R.C., at the time the above card was printed, indicates that it dates prior to 1943.

The " Mayleigh" address on the targets below shows they are post 1943 but pre-1947 when the S.M.R.C. became the N.S.R.A.

See the Chronology of the movement of the SMRC offices

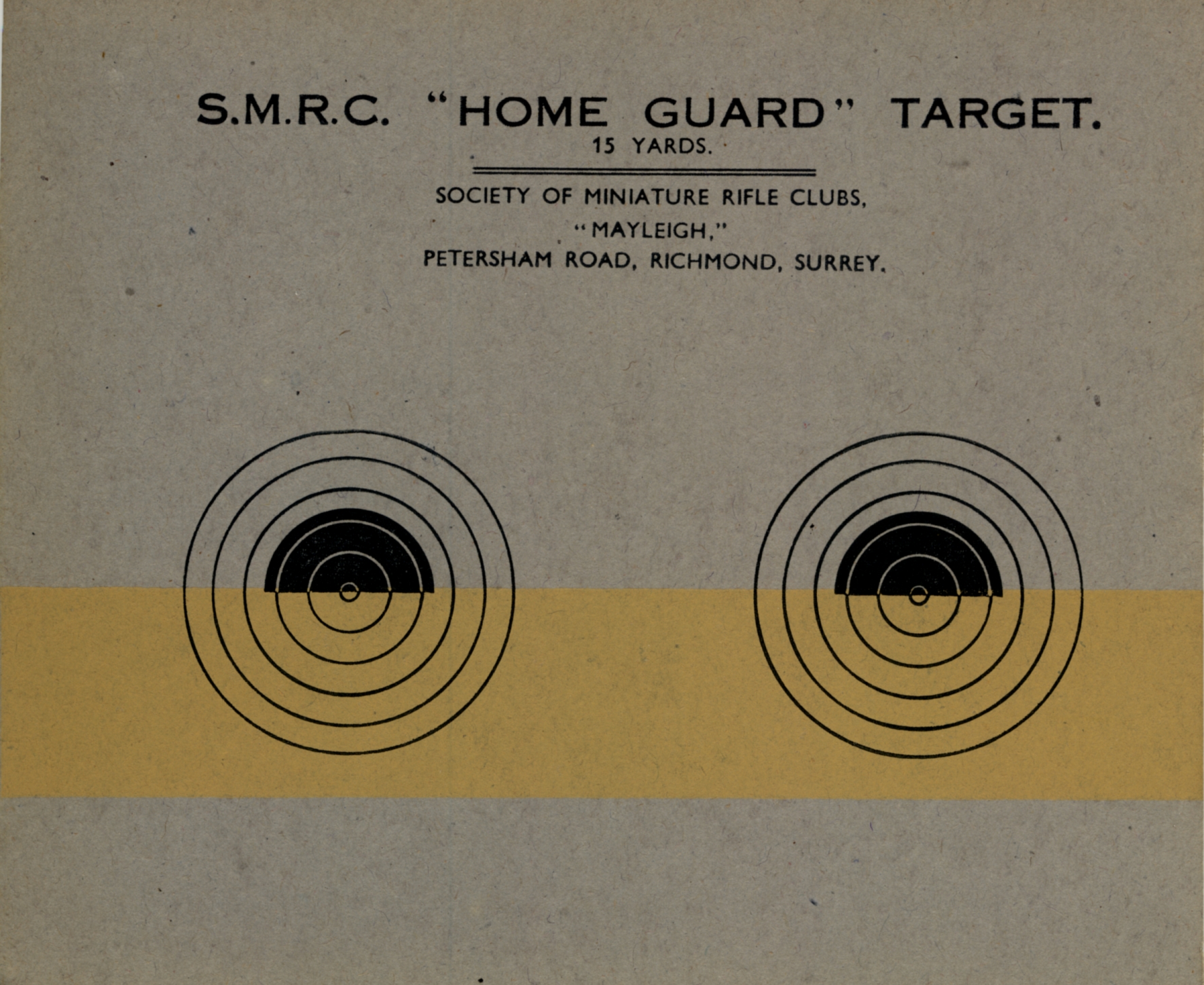

The " HOME GUARD" twin diagram 25 yard target; equivalent to the then standard military "Sand & Sky" targets. Printed for 15, 20 and 25 yard ranges;

Click the above image to access a downloadable high resolution JPG file of the 15 yard target. For scaling, the actual size of the printed card should be 149 x 125 mm.

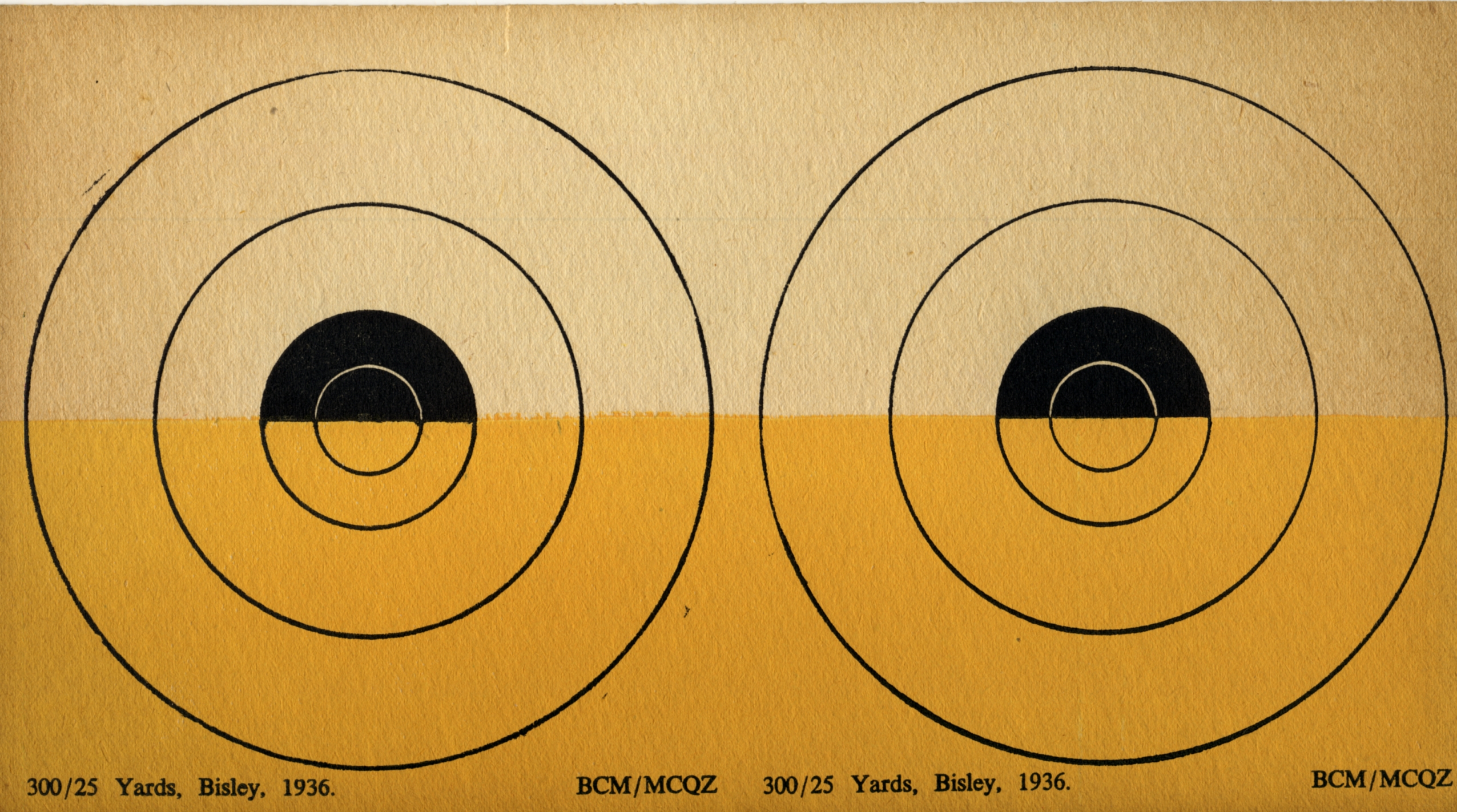

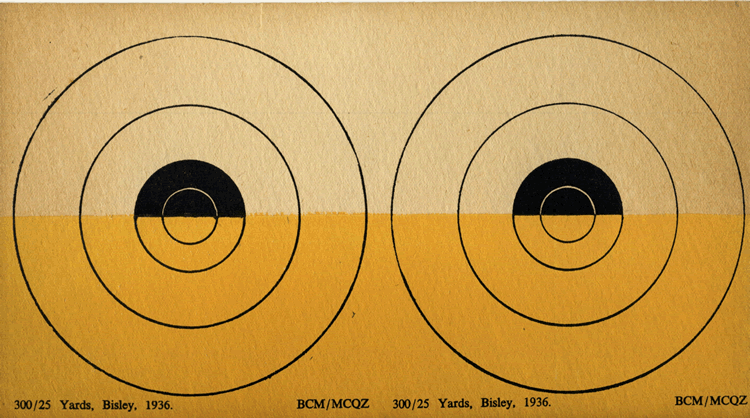

and below, the 1936 Bisley equivalent coded BCM/MCQZ to be shot at 25 yards, but representing 300 yards full-bore (.303") distance.

Click the above image to access a downloadable high resolution JPG file. For scaling, the actual size of the printed card should be 219 x 120 mm.

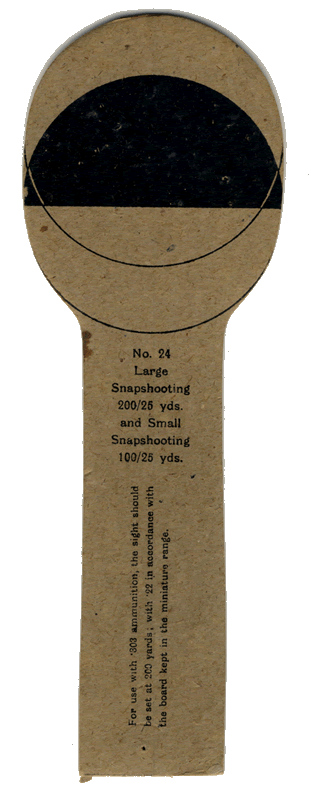

and below, a commonly used "Snapshooting" target oft seen on schools and cadets ranges of the period into the 1960s and beyond.

Five rounds were usually fired, on this 'Tin-Hat" target, in a time selected by the Range Officer to suit the capabilities of the cadets.

This 25 yard target is intended to be representative of 200 yards on a full-bore range.

Click the above image to access a downloadable high resolution JPG file. For scaling, the actual height of the printed card should be 216 mm.

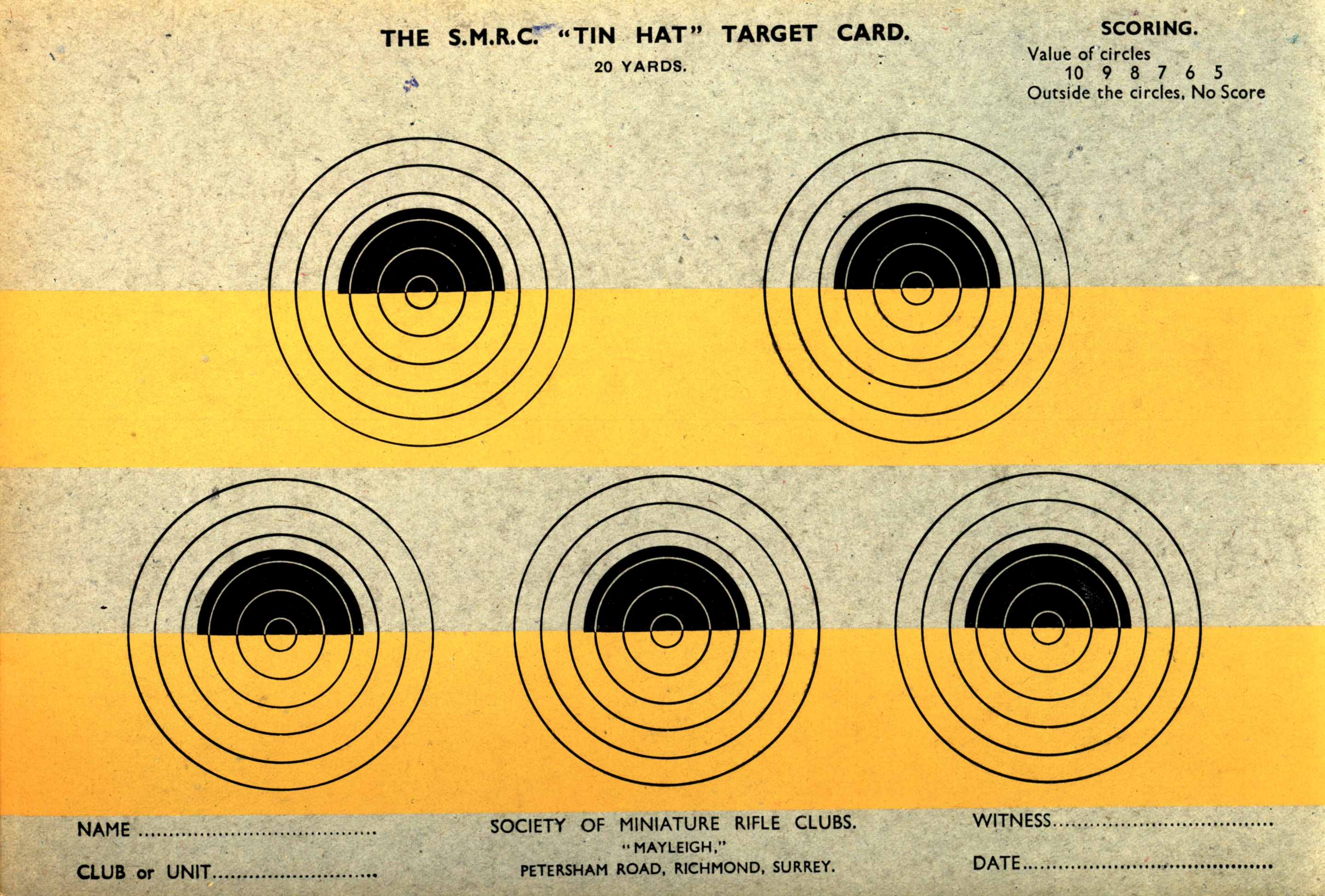

Below is the S.M.R.C. 20 yard "TIN HAT" target with 5 aiming marks - for two shots per diagram.

Click the above image to access a downloadable high resolution JPG file. For scaling, the actual size of the printed card should be 247 x 165 mm.

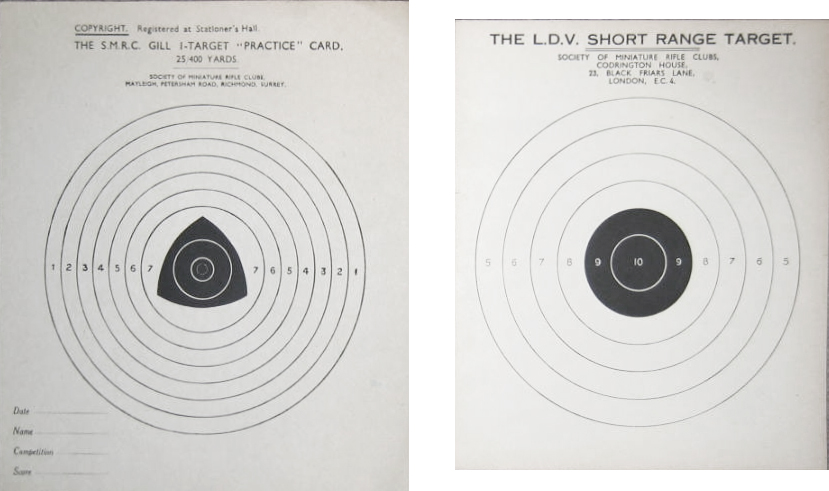

Above on the left is the "Gill" target to represent 400 yds range at 25 yds.

Above to the right is the LDV wartime target (the Local Defence Volunteers - later becoming the Home Guard).

-

NON MILITARY BASED TARGETS

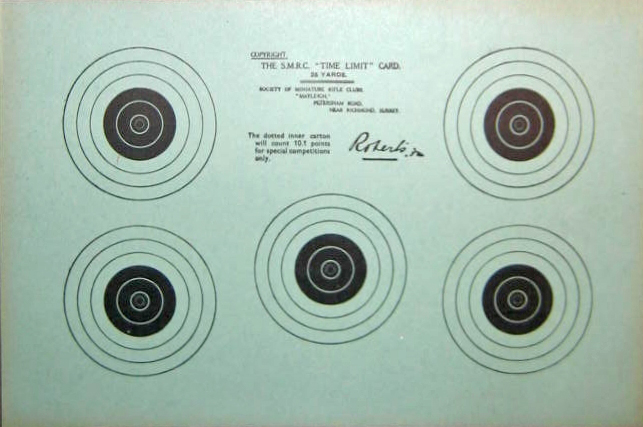

Below is the rapid shooting "Timed Limit" card.

Ten rounds were shot - usually in ninety seconds - two shots per aiming mark

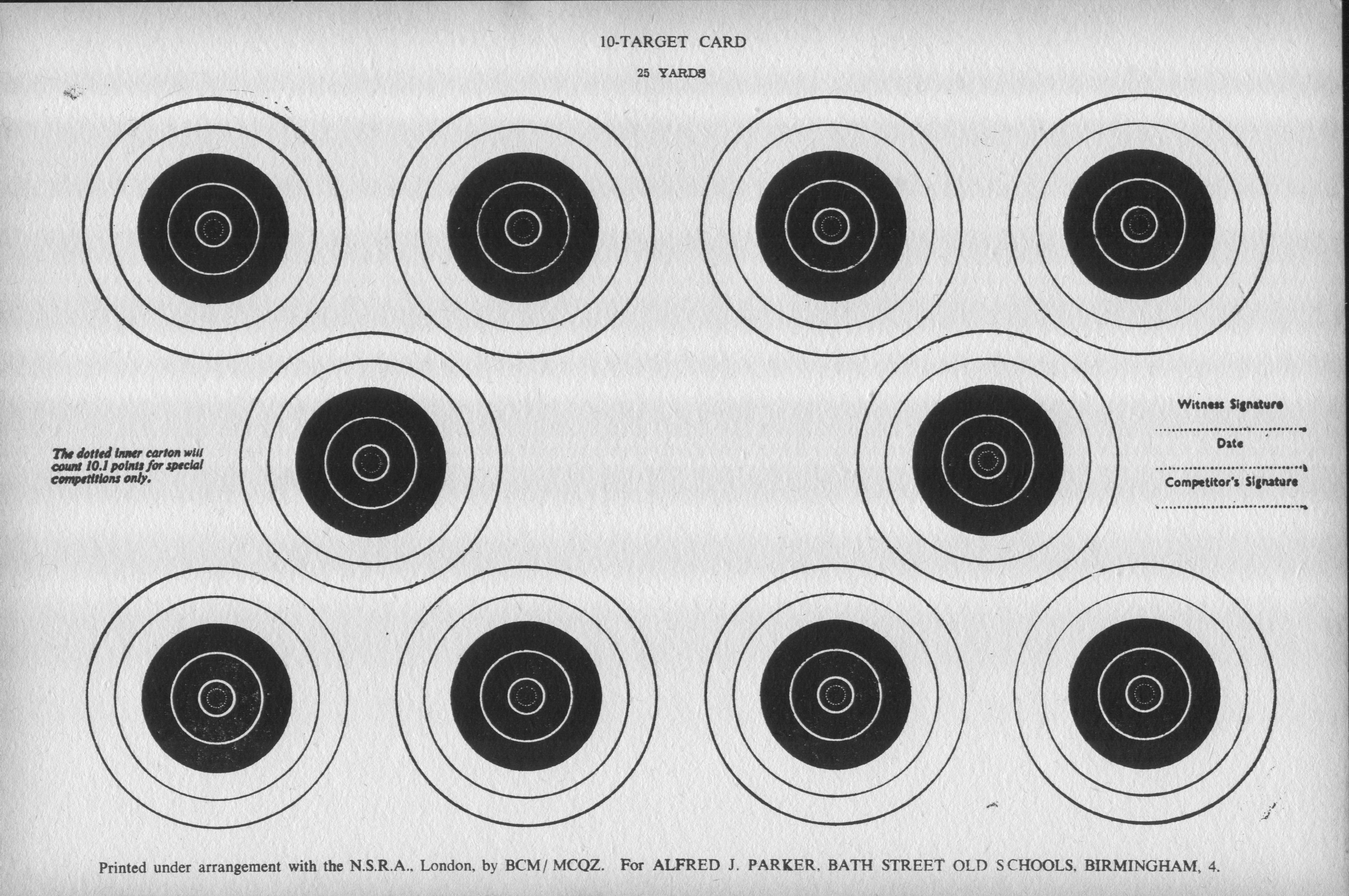

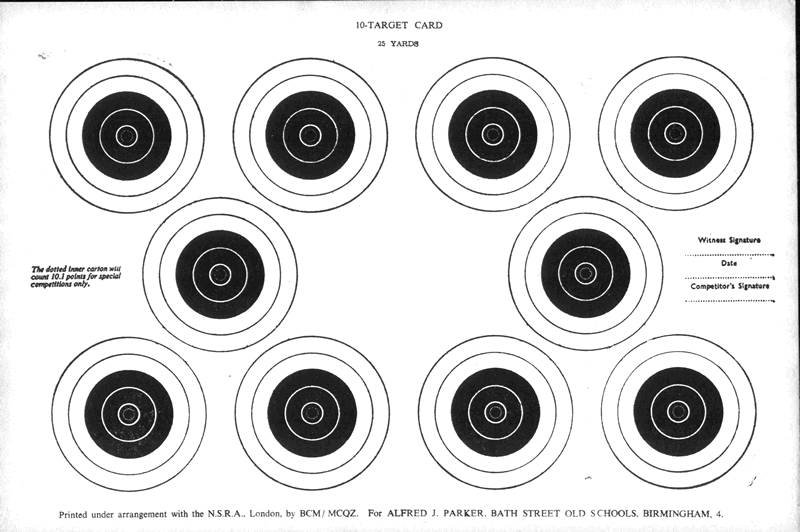

Below is a 1950 era NSRA card for 25 yards, with 10 Targets each diagram with a Carton ( X- ring) printed with a dotted line.

The "Carton" affords scoring to include points similar to decimal places, i.e., 10.1 per diagram, giving a maximum possible of 100.10

This is particularly useful for tie-breaking, especially on an inwrad gauging target such as this where simply touching a scoring line (on the inward side of the bullet hole) gives the higher score. Thus, if your .22 inch bullet gauge touches the dotted carton line, the score will be 10 points for a bull - plus 0.1 point for the carton. Obviously, ten shots are to be fored onto this target, one on each diagram.

You may view and download/save a 1.35 MB file of this target by clicking on the image.


FOR A REALLY USEFUL CATALOGUED & HEAVILY COLOUR ILLUSTRATED

HISTORY OF BRITISH MILITARY & CIVILIAN TARGETS

from 1850 to 2000

both SMALL-BORE & FULL-BORE RIFLE

See Dave Clark's "BRITISH TARGETS from the mid 19th. Century"




Return to: SITE MAP or MENU PAGE or < face="Verdana, Arial, Helvetica, sans-serif">TOP of PAGE

***********************************************

Below is a miniaturised version of the 1899 Military fullbore TARGETS
depicted at Bisley. It is designed for modern use on a  fifteen, twenty
 or twenty-five yard range. Copies may be obtained by contacting the editor
The target is simply a representation of the original for use on
a smallbore range with early training rifles.
