Instructions for Armourers - 1931

Complete text and illustrated plates

See also the INSTRUCTIONS for ARMOURERS 1897 and the INSTRUCTIONS for ARMOURERS 1912

The manual covers all British standard issue small-arms of the time,

as well as machine guns, general accessories, and the military bicycle.

It was issued to each unit's trained armourer, whose task was to maintain, repair

and update British made small arms wherever they (and the armourer) were in the World.



INSTRUCTIONS for ARMOURERS - 1931

This is in the form of a text-searchable flip-page document that may take a few moments to load.

Double tap tablet or click for full page display.


An amendment sheet dated for March 1940 covering a number of changes
issued with Drawing No. 2332 below for an alteration to the auxiliary spring of the Bren LMG.





Each manual was accompanied by a separate box containing the relevant drawings listed below:

D.D(E) are Enfield Royal Small Arms Factory design drawings,

and S.A.I.D. are Small Arms Identification Drawings.

PLATES

INSTRUCTIONS for ARMOURERS - 1931

Drawing No. D.D(E)871     Repair, Mountings, Tripod .303in M.G., Mk.IV
Drawing No. D.D(E)1000   Modification, Elevation Wheel, Mountings, Tripod .303in M.G., Mk.IV
Drawing No. D.D(E)1923   Sheet 1 of 2; Gun, Machine, Bren, .303in. Mk.I
Drawing No. D.D(E)1923   Sheet 2 of 2; Gun, Machine, Bren, .303in. Mk.I - Parts
Drawing No. D.D(E)1926  ; Rifle, Boys Anti-Tank, Mk.I
Drawing No. D.D(E)2029  ; Rifle, Boys Anti-Tank, Mk.I - Accessories
Drawing No. D.D(E)2029  ; Rifle, Boys Anti-Tank, Mk.I - Accessories
Drawing No. D.D(E)2254   Magazine – bottom plate & retainer
Supplement No.2 Amendments Gun, Machine, Bren, .303in. Mk.I
Drawing No. D.D(E)2318   Breech block
Drawing No. D.D(E)2332   Magazine – auxiliary spring -  Sheet 1 of 2
Drawing No. D.D(E)2332   Magazine – auxiliary spring – Sheet 2 of 2
Drawing No. D.D(E)1725   Pistol, Revolver No.2. Mk.I .38 inch with 5-inch barrel
Drawing No.    A.I.D. 1711 Guns, Machine Lewis, .303in; Eliminator, Flash, Mk.I/C/
Drawing No. S.A.I.D. 2053 Pistols, Revolver, No.1, Mks.III, IV, V & VI
Drawing No. S.A.I.D. 2058 Rifle, No.3, MARK I*(F) & No.3, MARK I*(T)
Drawing No. S.A.I.D. 2059 Rifle, No.3, MARK I*(F) & No.3, MARK I*(T) – components
Drawing No. S.A.I.D. 2062 Gun, Machine, Vickers, .303in., Mk.I
Drawing No. S.A.I.D. 2063 Gun, Machine, Lewis, .303in, Mk.I
Drawing No. S.A.I.D. 2064 Guns, Machine, Hotchkiss, .303in, MARK I* Nos.1 & 2
Drawing No. S.A.I.D. 2081 Mounting, Tripod, .303in, M.G. Mk.IV
Drawing No. S.A.I.D. 2267 Rifles, No.1 Mk.III, No.1 Mk.III*, No.2 Mk.IV*
Drawing No. S.A.I.D. 2268 Rifles, No.1 Mk.III, No.1 Mk.III*, No.2 Mk.IV* - components
Drawing No. S.A.I.D. 2269 Rifles, No.1 Mk.III, No.1 Mk.III*, No.2 Mk.IV* - components
Drawing No. S.A.I.D. 2270 Bicycle, Mark IV
Drawing No. S.A.I.D. 2271 Bicycle, Mark IV – components and accessories
Drawing No. S.A.I.D. 2272 Bicycle, Mark IV – components and accessories
Drawing No. S.A.I.D. 2273 Bicycle, Mark IV – components and accessories
Drawing No. S.A.I.D. 2474 Bayonets, Dirks, Swords & Scabbards
Drawing No. S.A.I.D. 2530 Pistol – Signal, No.1 Mk.III
Drawing No. D.D(E) 2631  Sheet 1 of 2; Gun, Machine, BESA. 7.92mm, Mk.II  (double-sided)
Drawing No. D.D(E) 2631  Sheet 2 of 2; Gun, Machine, BESA. 7.92mm, Mk.II    (on reverse)
Drawing No. D.D(E) 2644  Sheet 1 of 2; Gun, Machine, BESA.  15mm, Mk.I      (double-sided)
Drawing No. D.D(E) 2644  Sheet 2 of 2; Gun, Machine, BESA.  15mm, Mk.I        (on reverse)
Drawing No. D.D(E) 2649  Gun, Machine, BESA.  7.92mm, Mk.II – accessories  (double-sided)
Drawing No. D.D(E) 2660  Gun, Machine, BESA.  15mm, Mk.I – accessories         (on reverse)

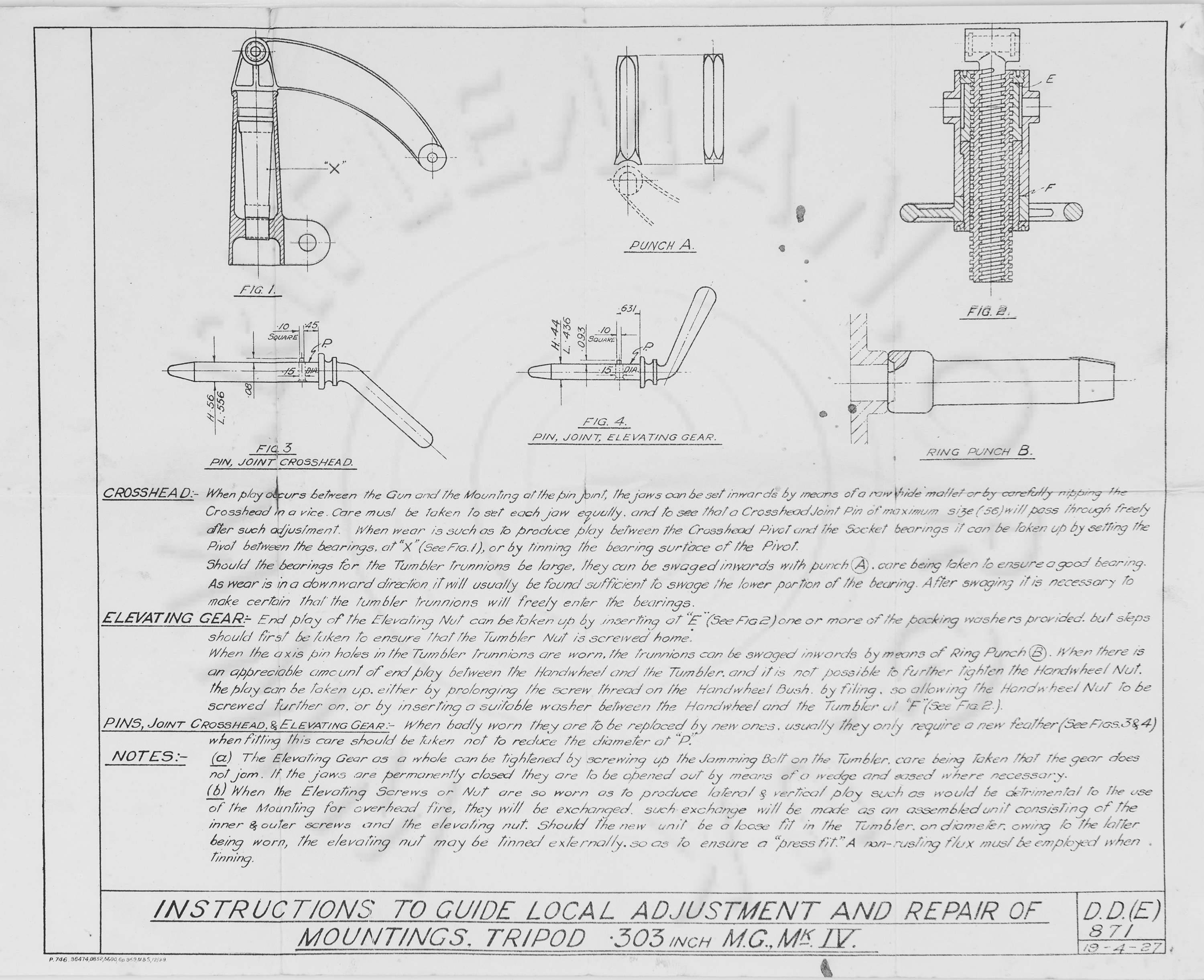

PLATE D.D.(E) 871 - Repair, Mountings, Tripod .303 Machine Gun Mk.IV

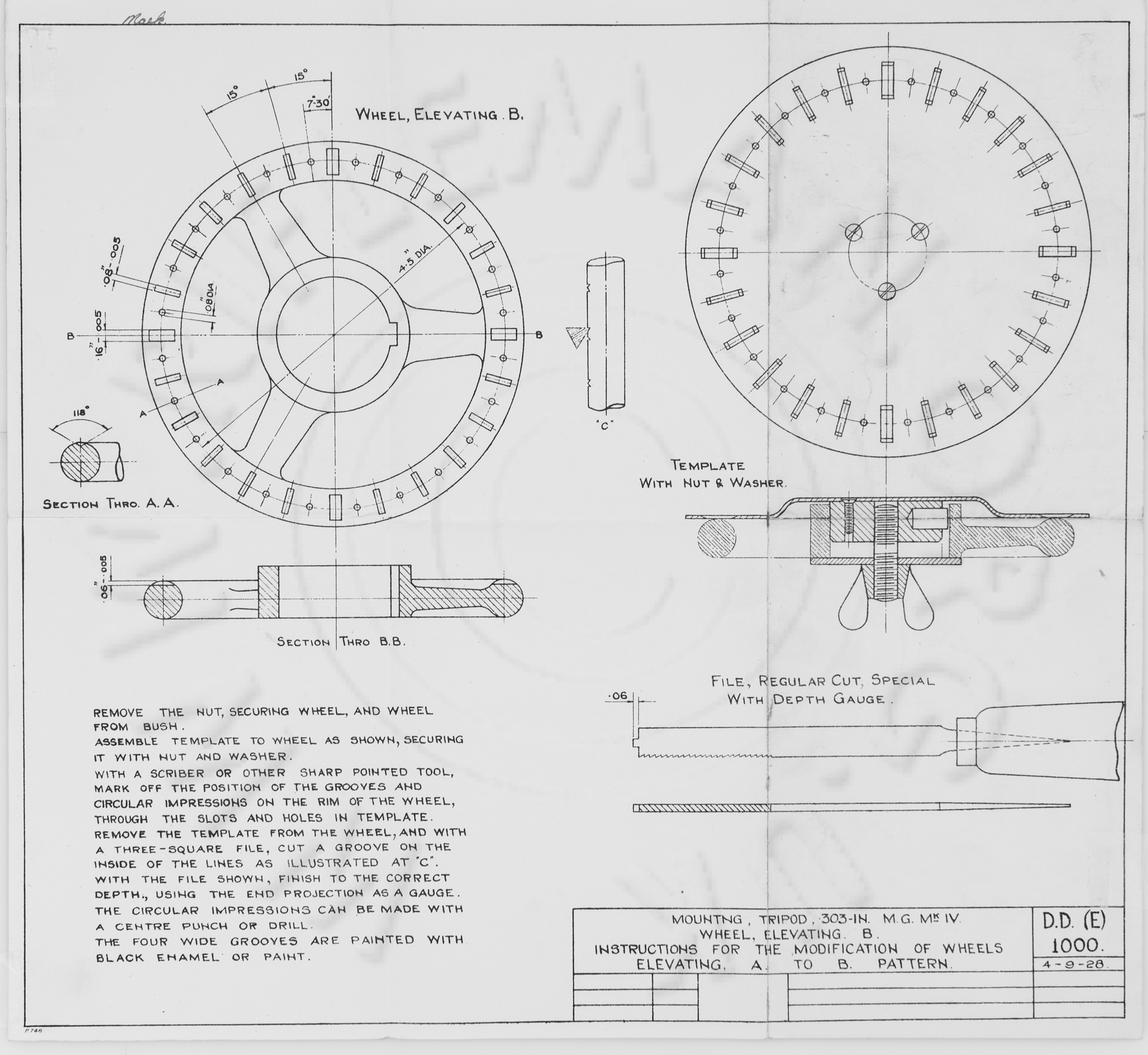

PLATE D.D.(E) 1000 - Modification, Elevation Wheel, Mountings, Tripod .303in M.G., Mk.IV

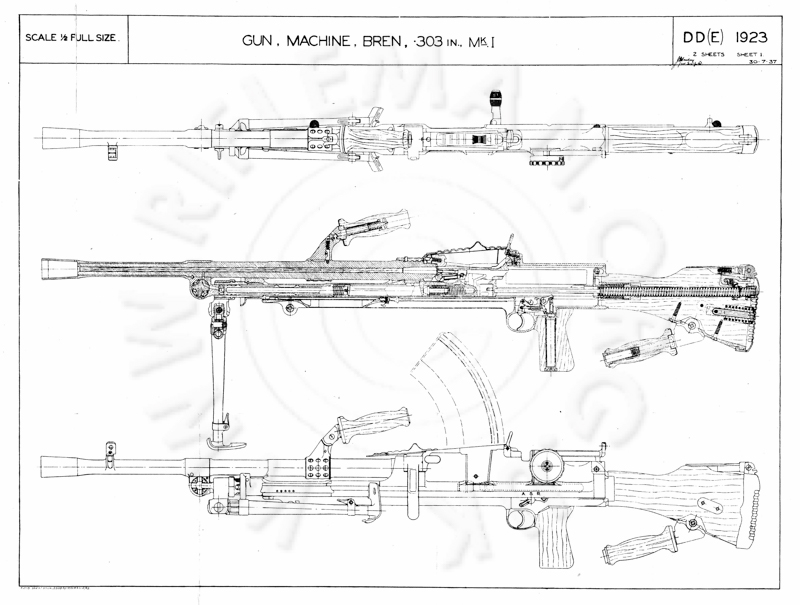

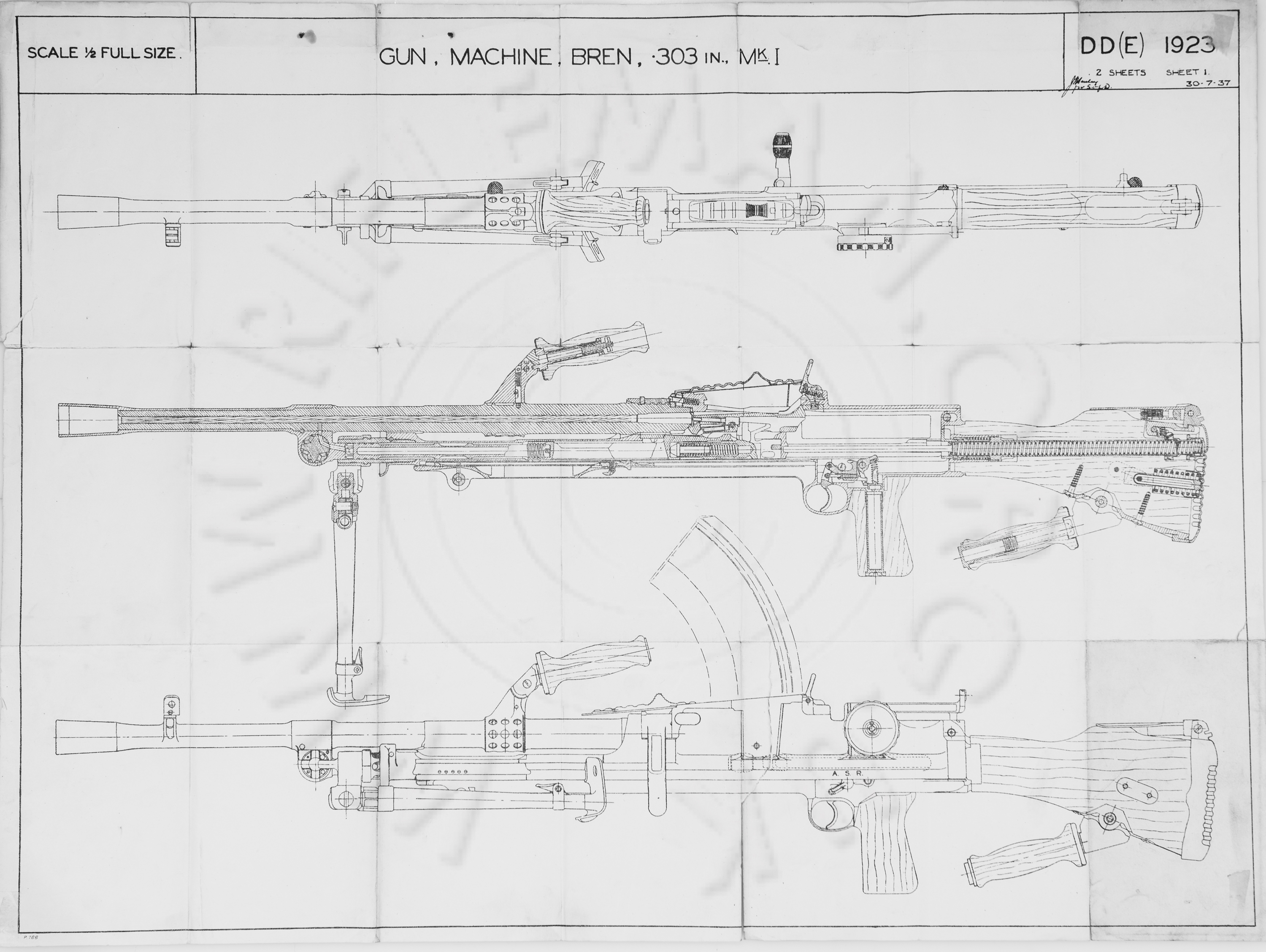

PLATE Drawing No. D.D(E)1923   Sheet 1 of 2; Gun, Machine, Bren, .303in. Mk.I

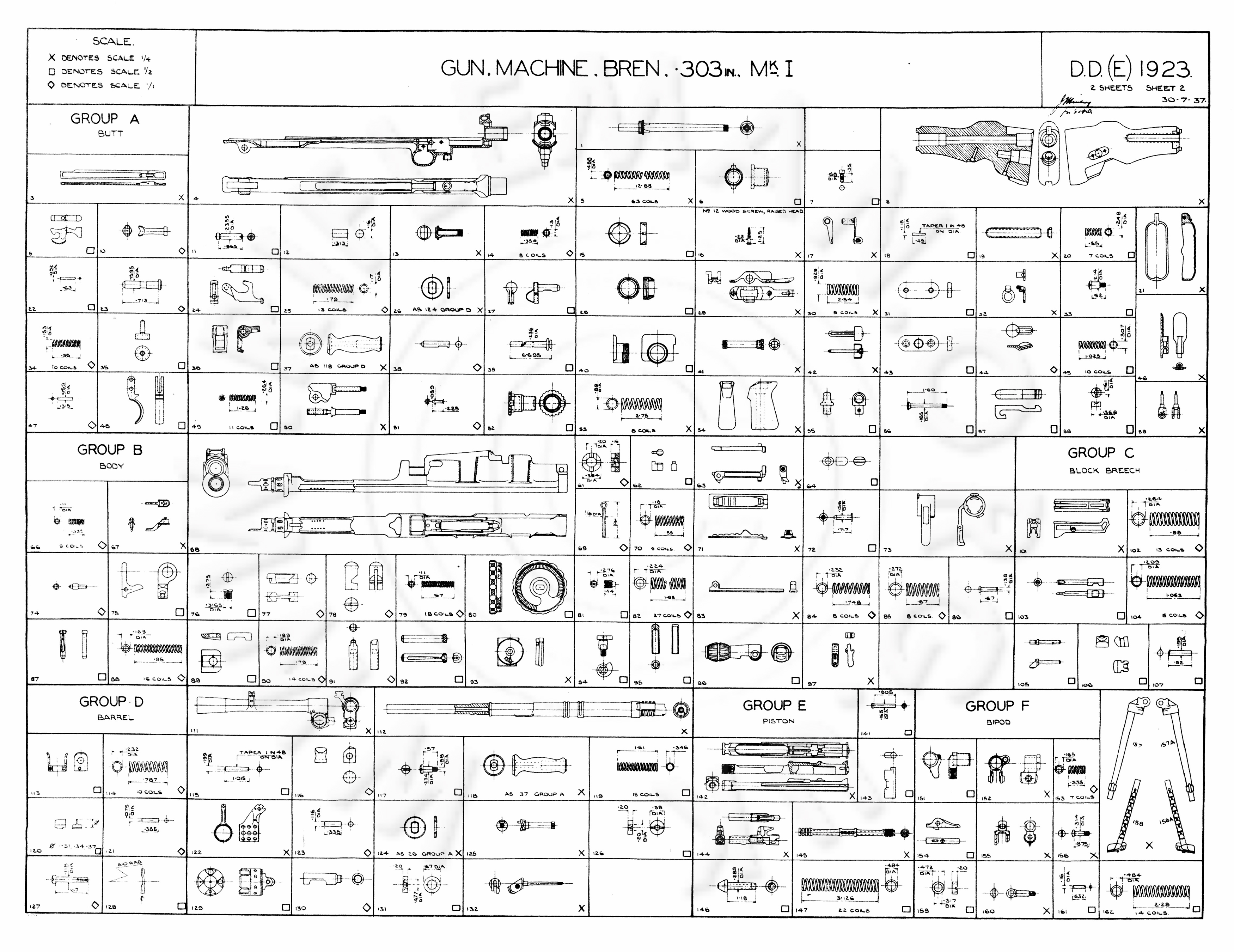

PLATE Drawing No. D.D(E)1923   Sheet 2 of 2; Gun, Machine, Bren, .303in. Mk.I - Parts

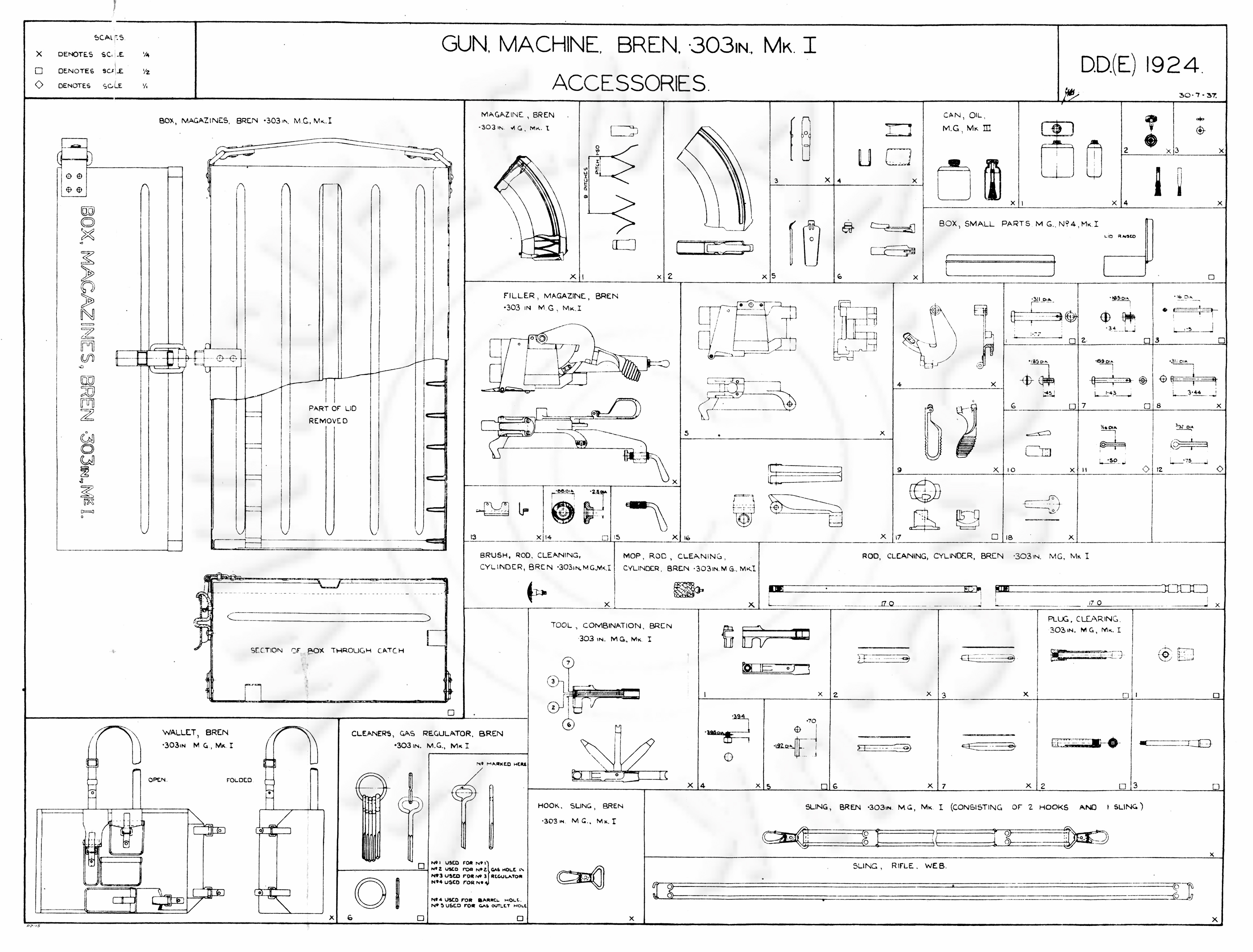

PLATE Drawing No. D.D(E)1924   Gun, Machine, Bren, .303in. Mk.I - Accessories

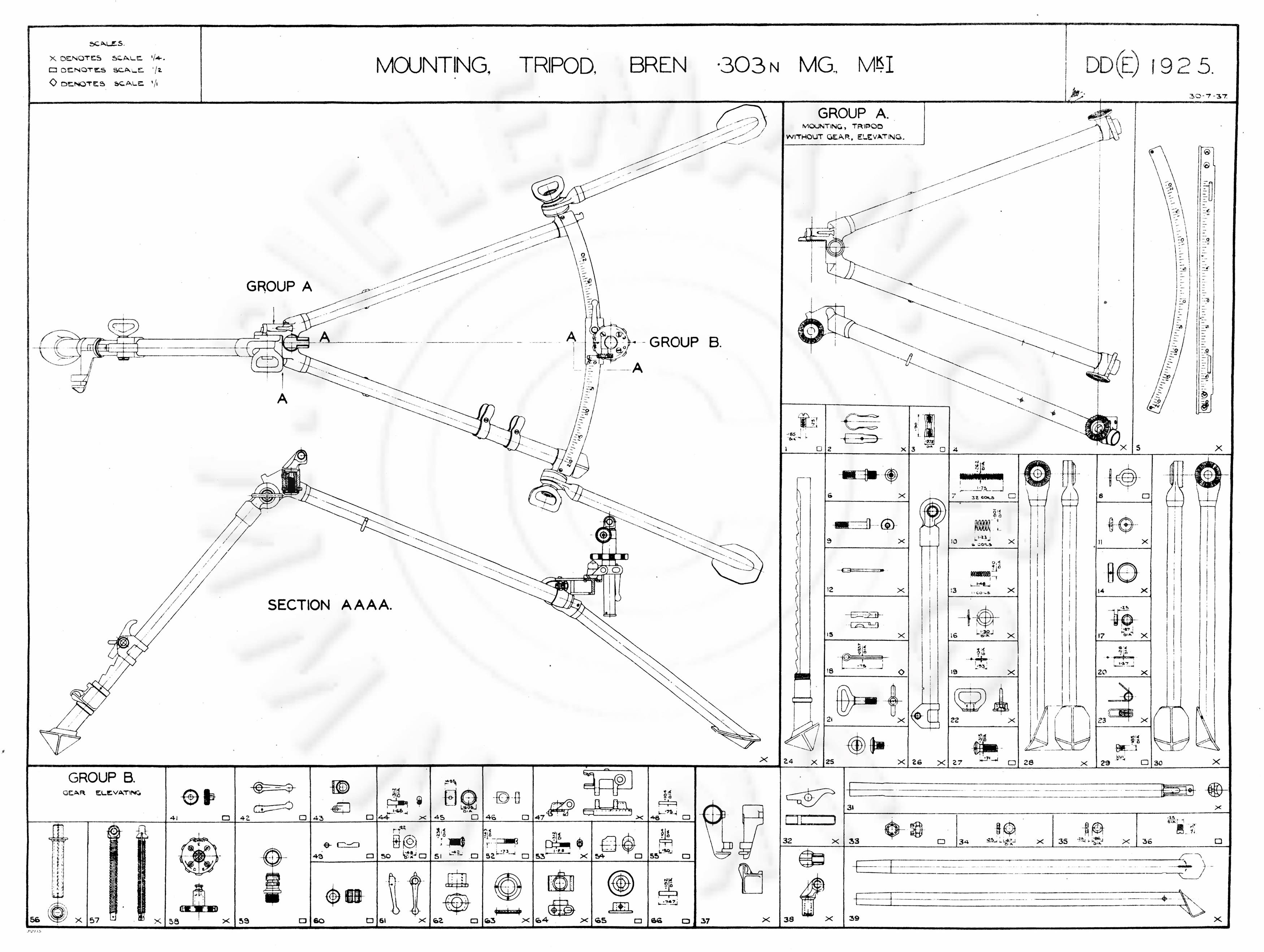

PLATE Drawing No. D.D(E)1925   Mounting Tripod; Gun, Machine, Bren, .303in. Mk.I



PLATE Drawing No. D.D(E)1926 ;   Rifle, Boys Anti-Tank, Mk.I

The above link is to multi-page comprehensive coverage of this rifle.

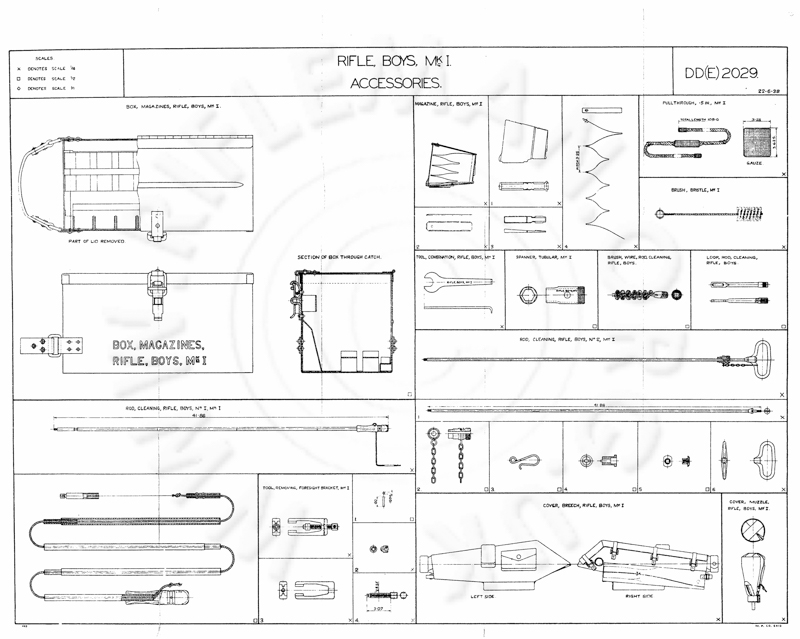

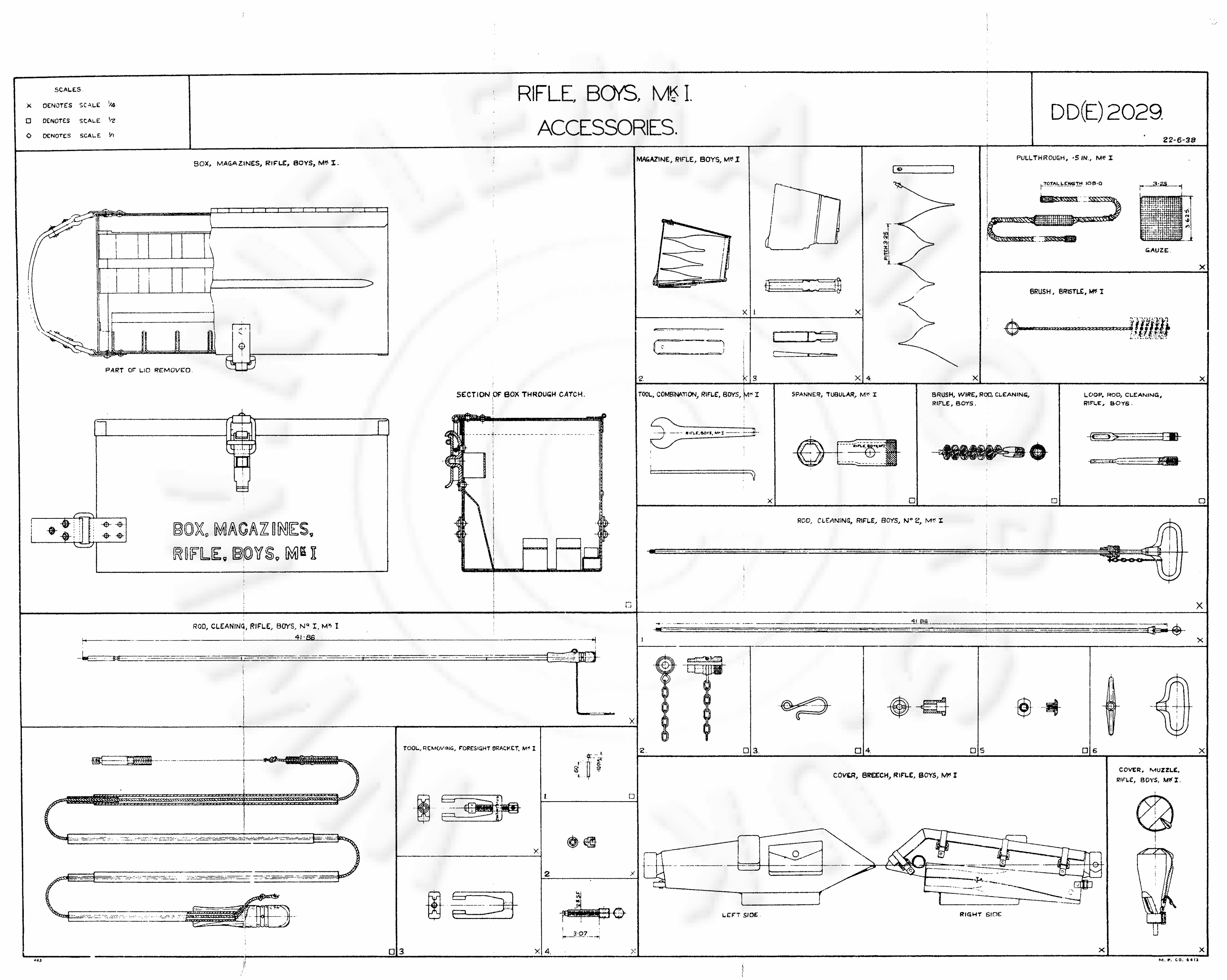

PLATE Drawing No. D.D(E)2029  ; Rifle, Boys Anti-Tank, Mk.I - Accessories

The above link is to multi-page comprehensive coverage of this rifle.

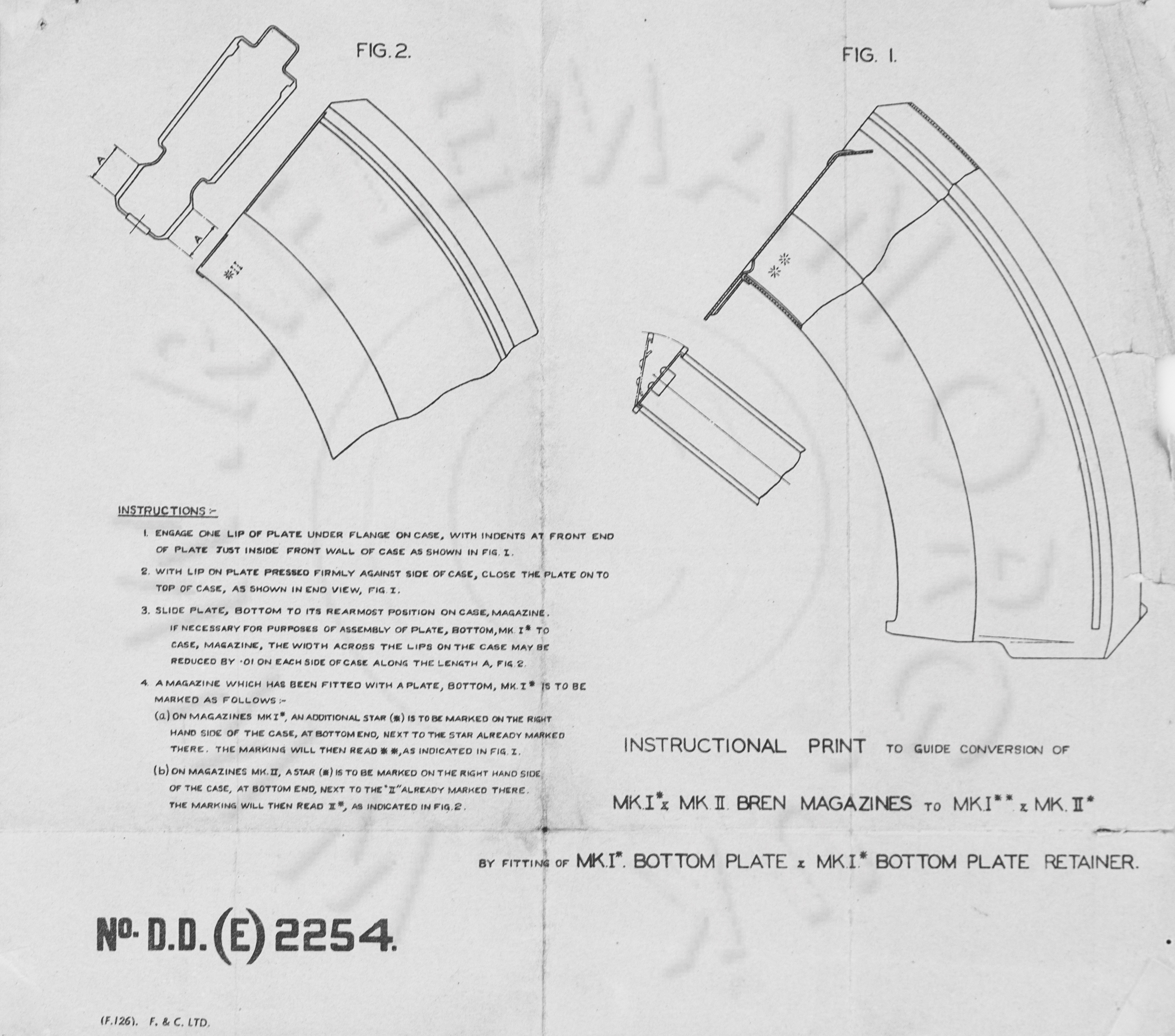

PLATE Drawing No. D.D(E)2254   Magazine – bottom plate & retainer

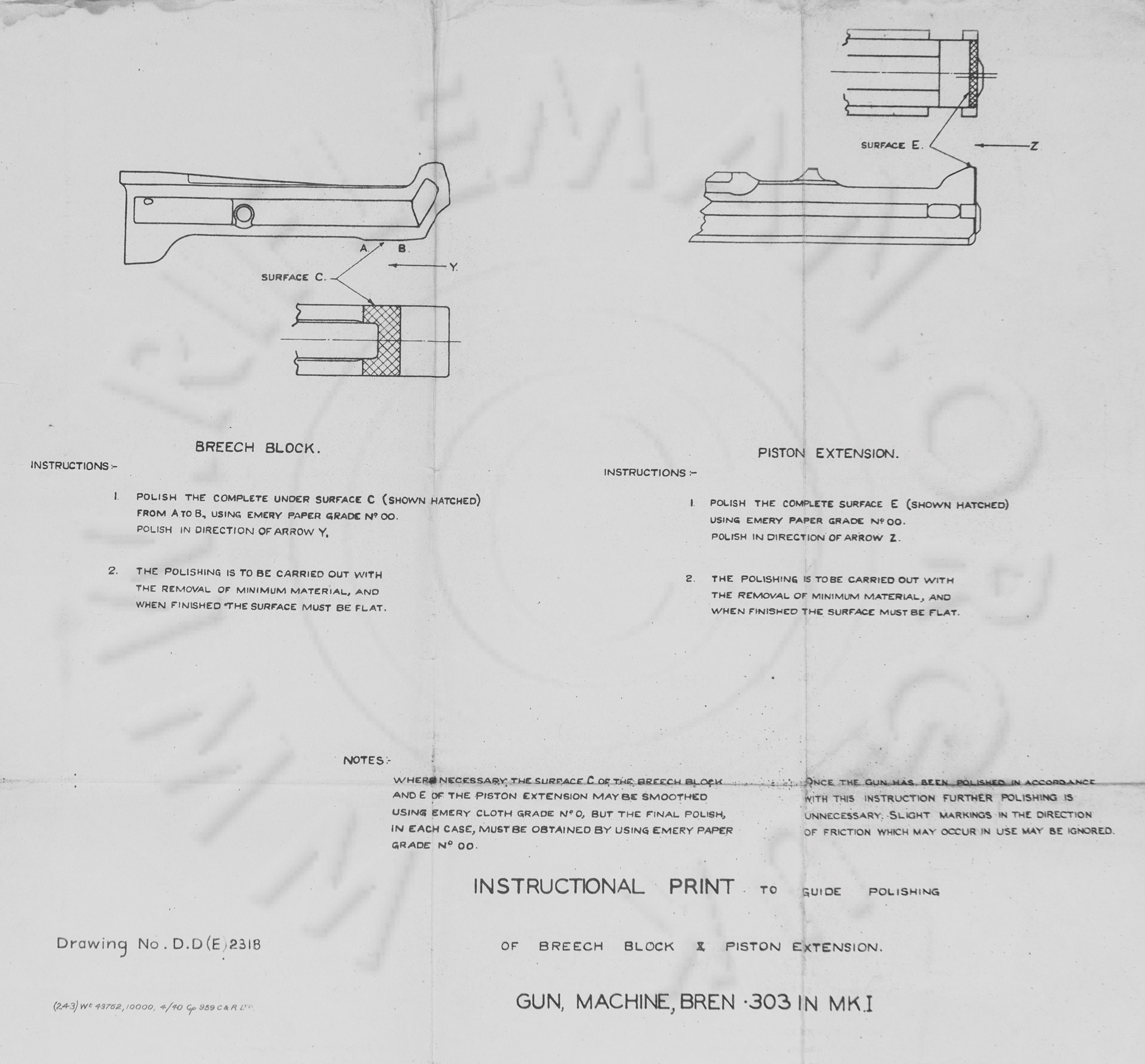

PLATE Drawing No. D.D(E)2318   Breech block

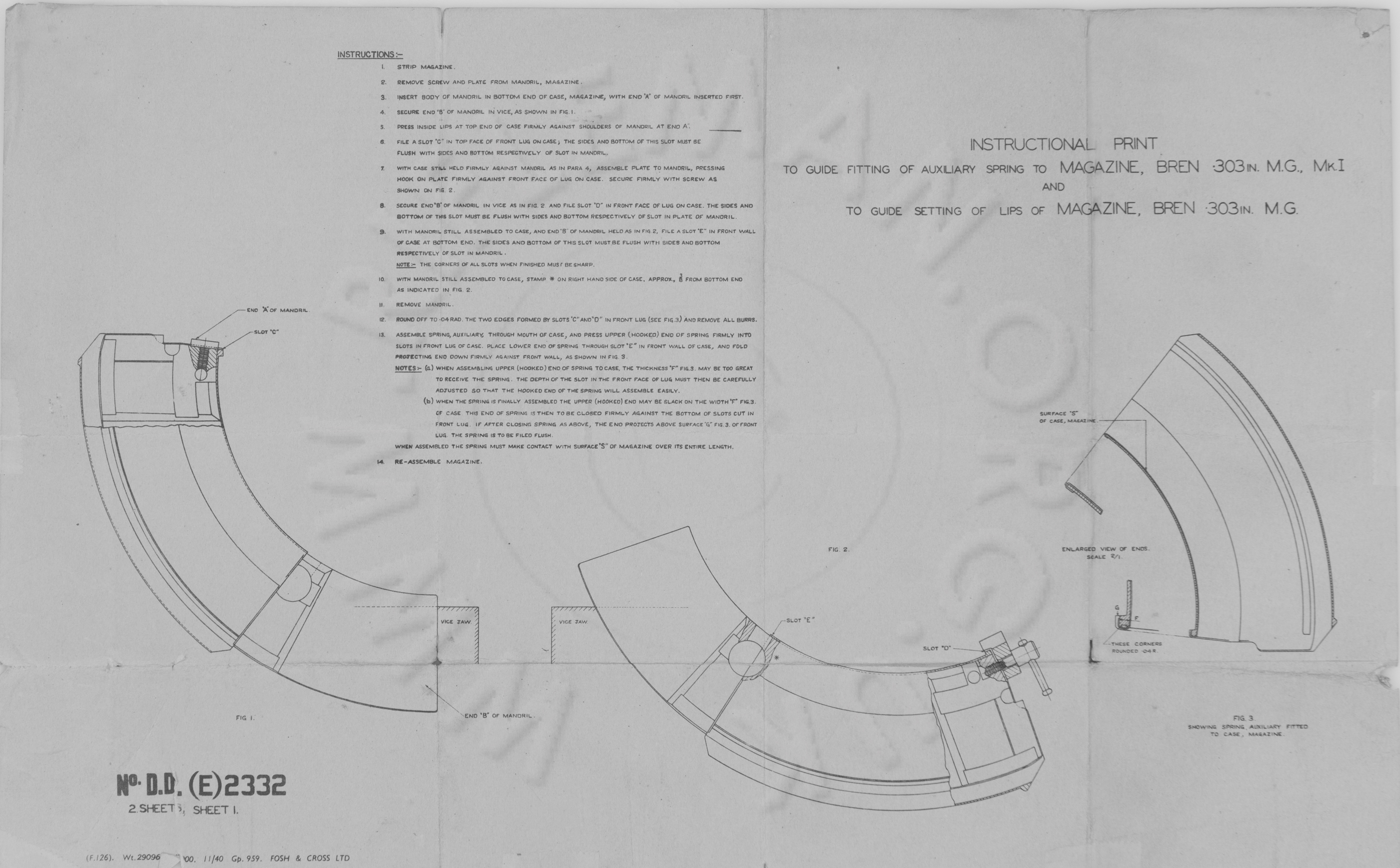

PLATE Drawing No. D.D(E)2332   Magazine – auxiliary spring -  Sheet 1 of 2

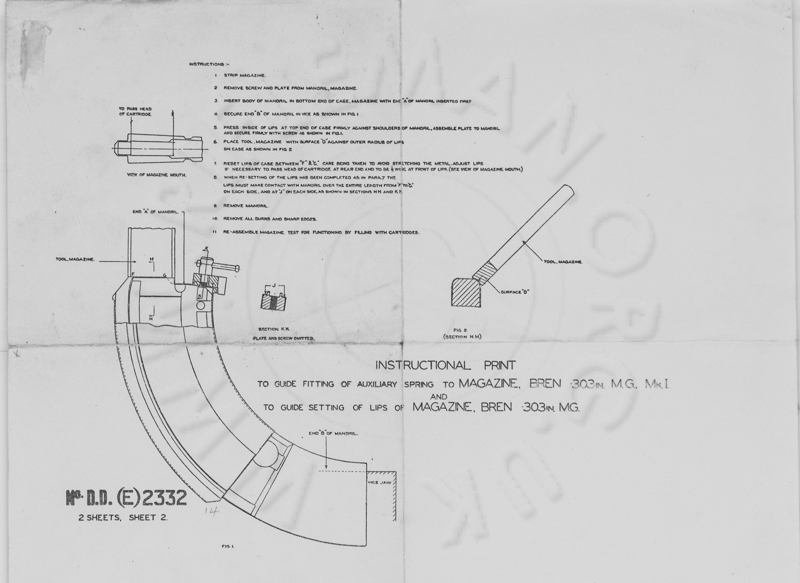

PLATE Drawing No. D.D(E)2332   Magazine – auxiliary spring -  Sheet 2 of 2

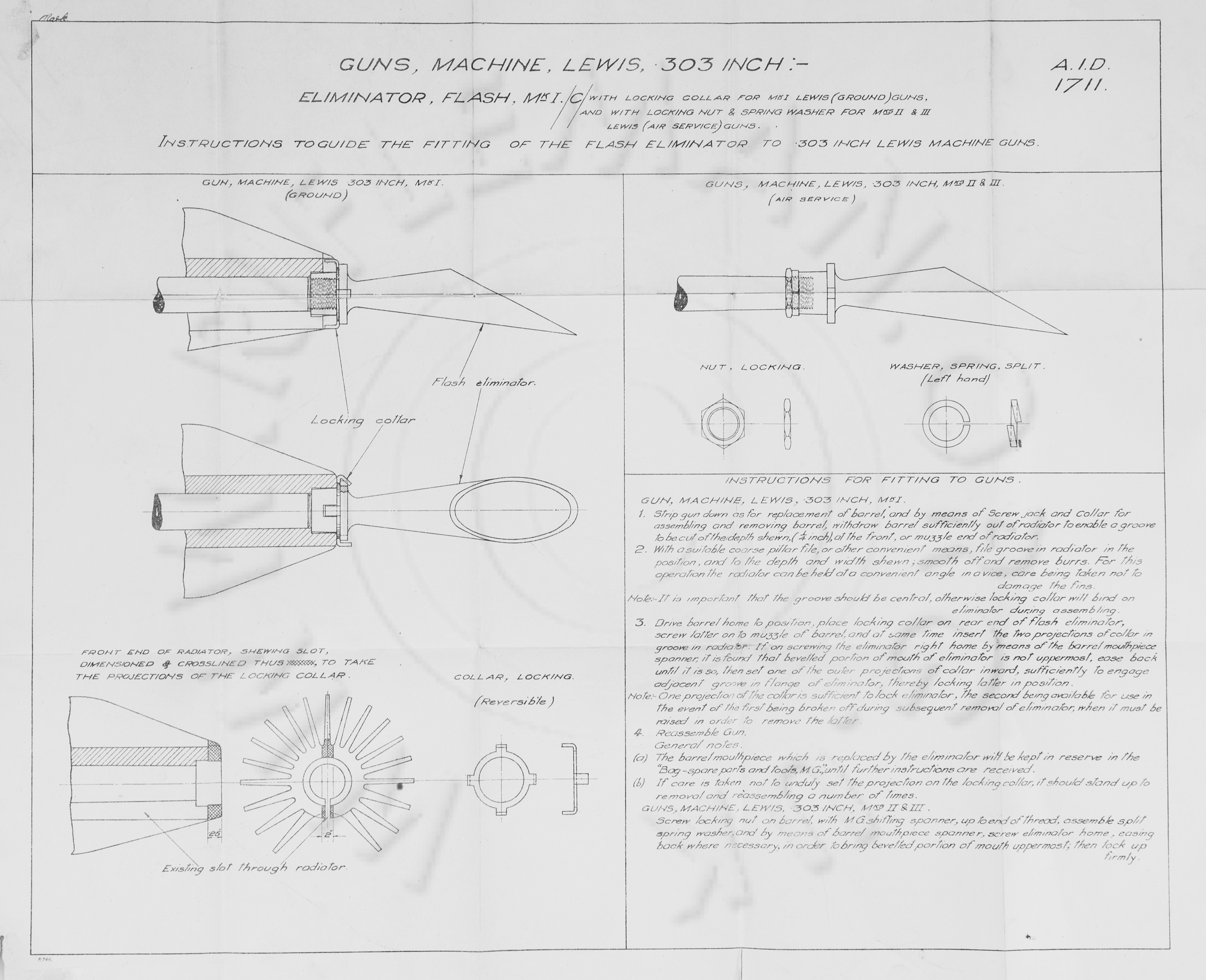

PLATE Drawing No.    A.I.D. 1711 Guns, Machine Lewis, .303in; Eliminator, Flash, Mk.I/C/

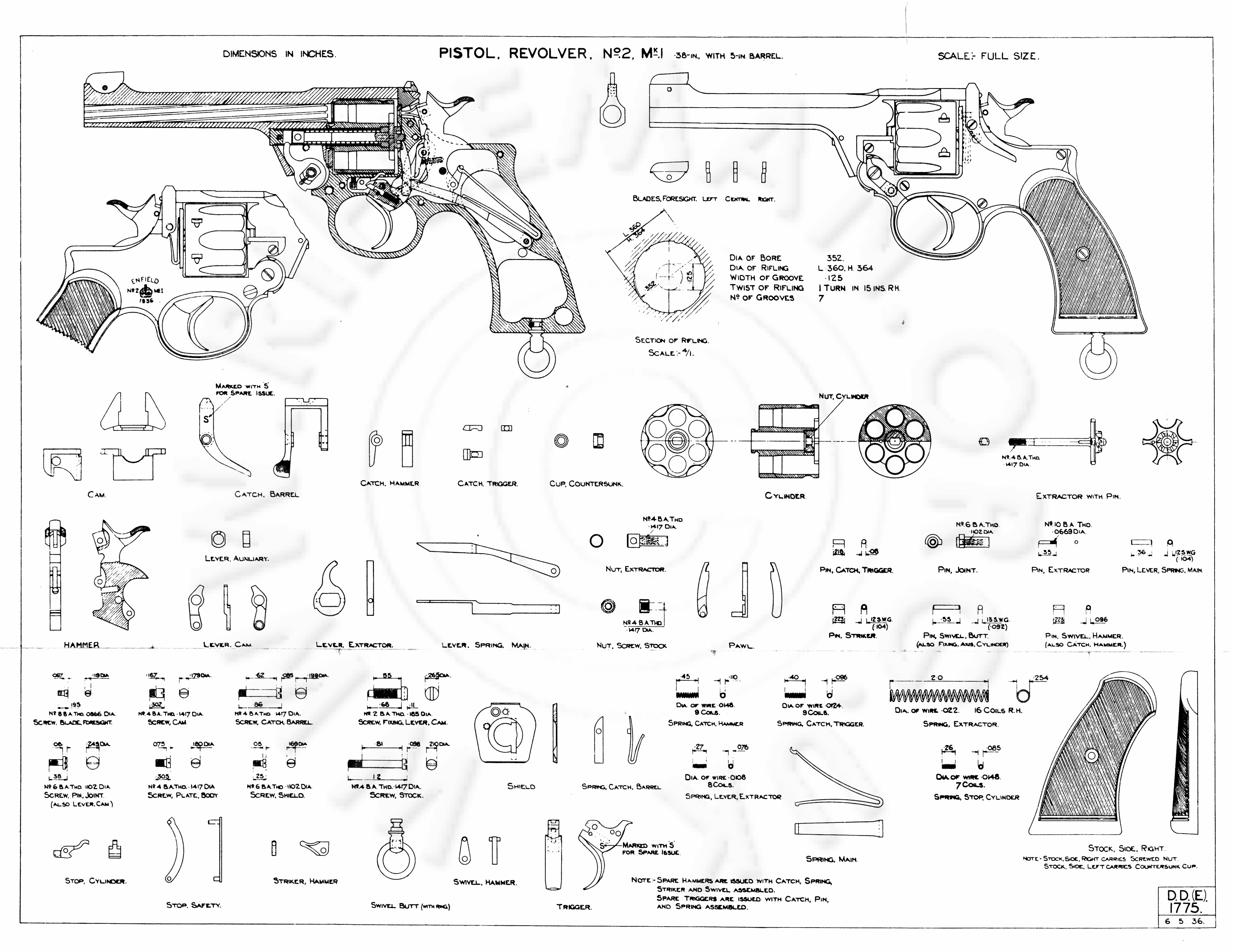

PLATE Drawing No. D.D(E)1775   Pistol, Revolver No.2. Mk.I .38 inch with 5-inch barrel

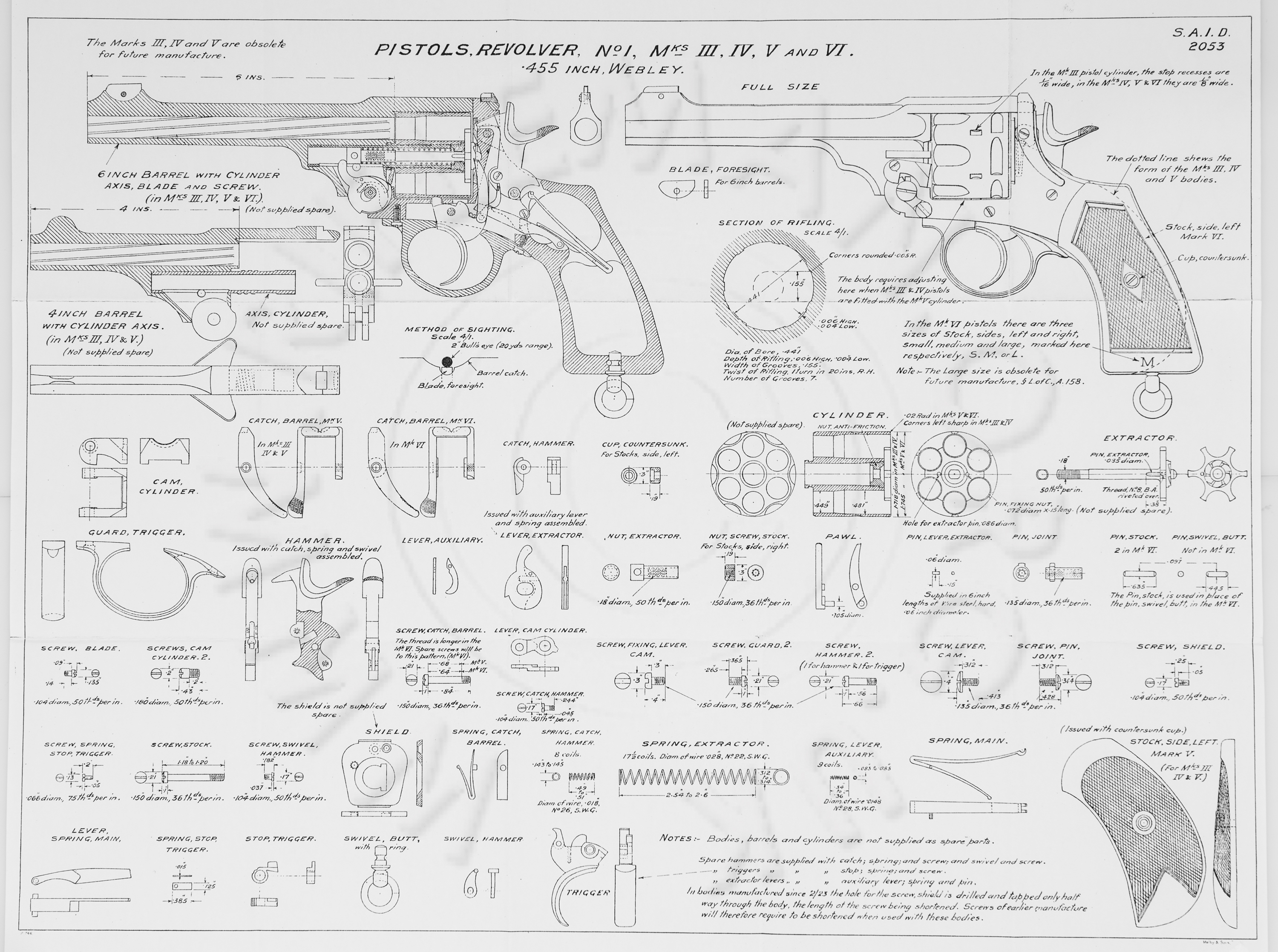

PLATE Drawing No. S.A.I.D. 2053 Pistols, Revolver, No.1, Mks.III, IV, V & VI

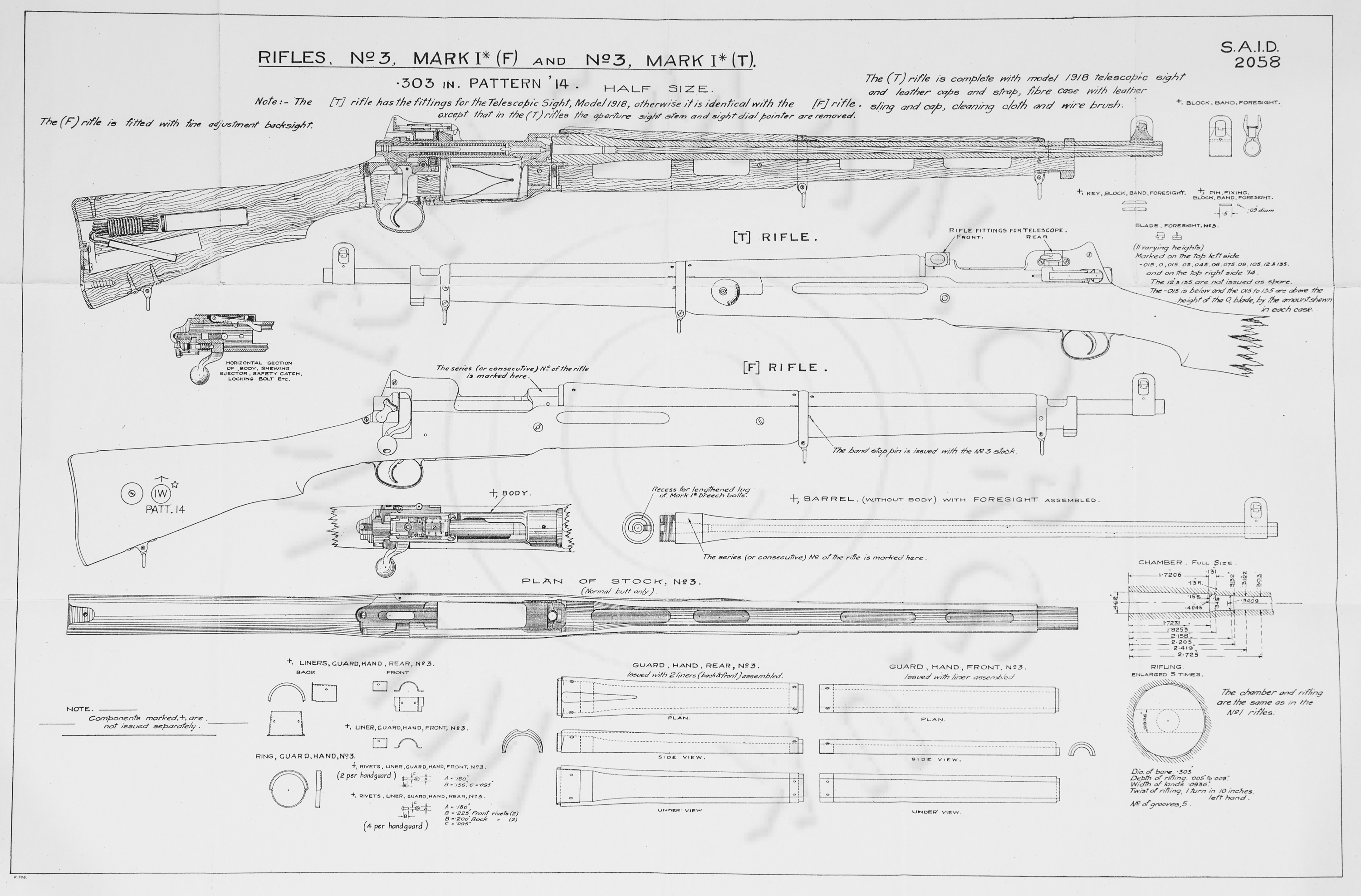

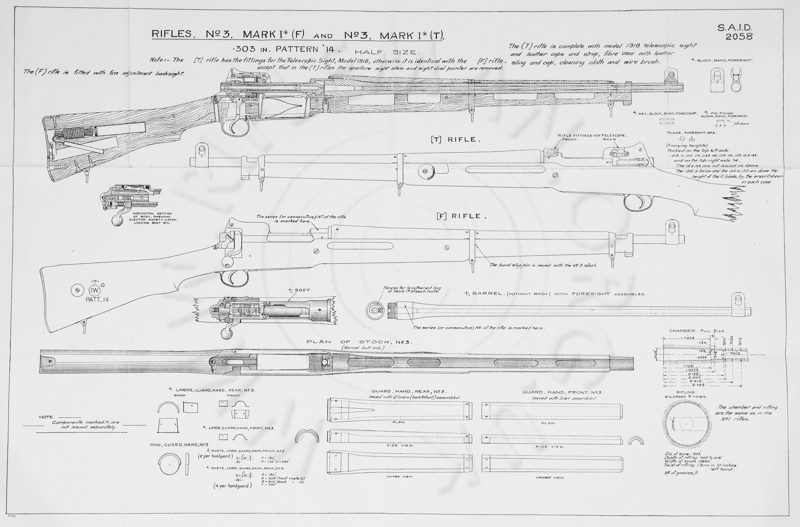

PLATE Drawing No. S.A.I.D. 2058 Rifle, No.3, MARK I*(F) and No.3, MARK I*(T)

See also: the training Enfield Rifle No.3 (.22RF Pattern 1914), the trials Enfield Rifle Pattern 1913, and the U.S. Pattern 1917 sniper rifle

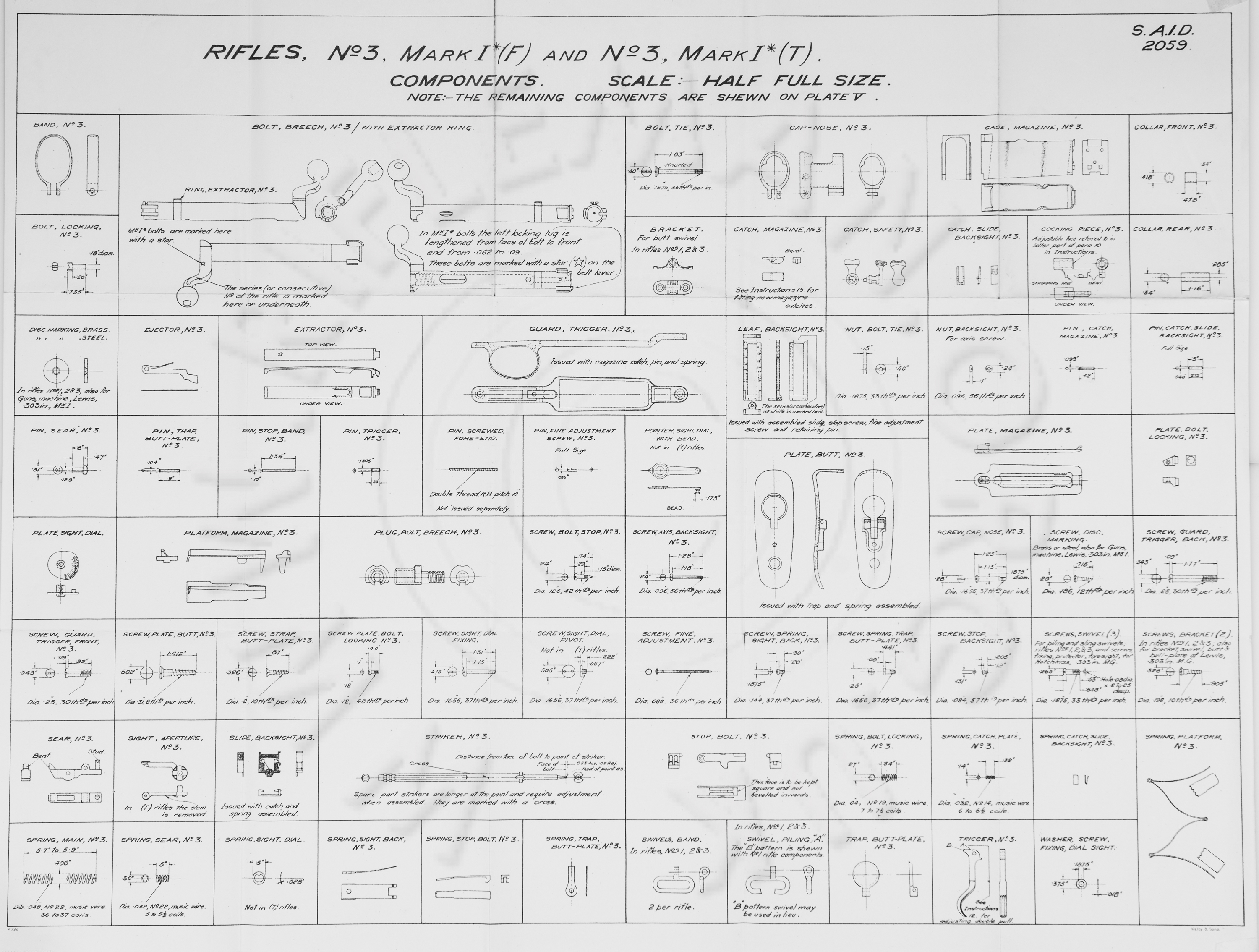

PLATE Drawing No. S.A.I.D. 2059 Rifle, No.3, MARK I*(F) and No.3, MARK I*(T) – components

See also: the training Enfield Rifle No.3 (.22RF Pattern 1914), the trials Enfield Rifle Pattern 1913, and the U.S. Pattern 1917 sniper rifle

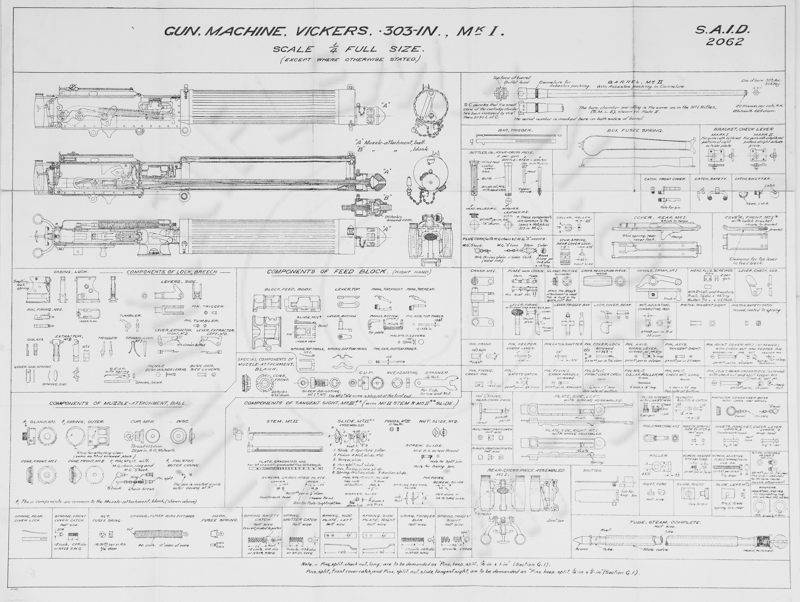

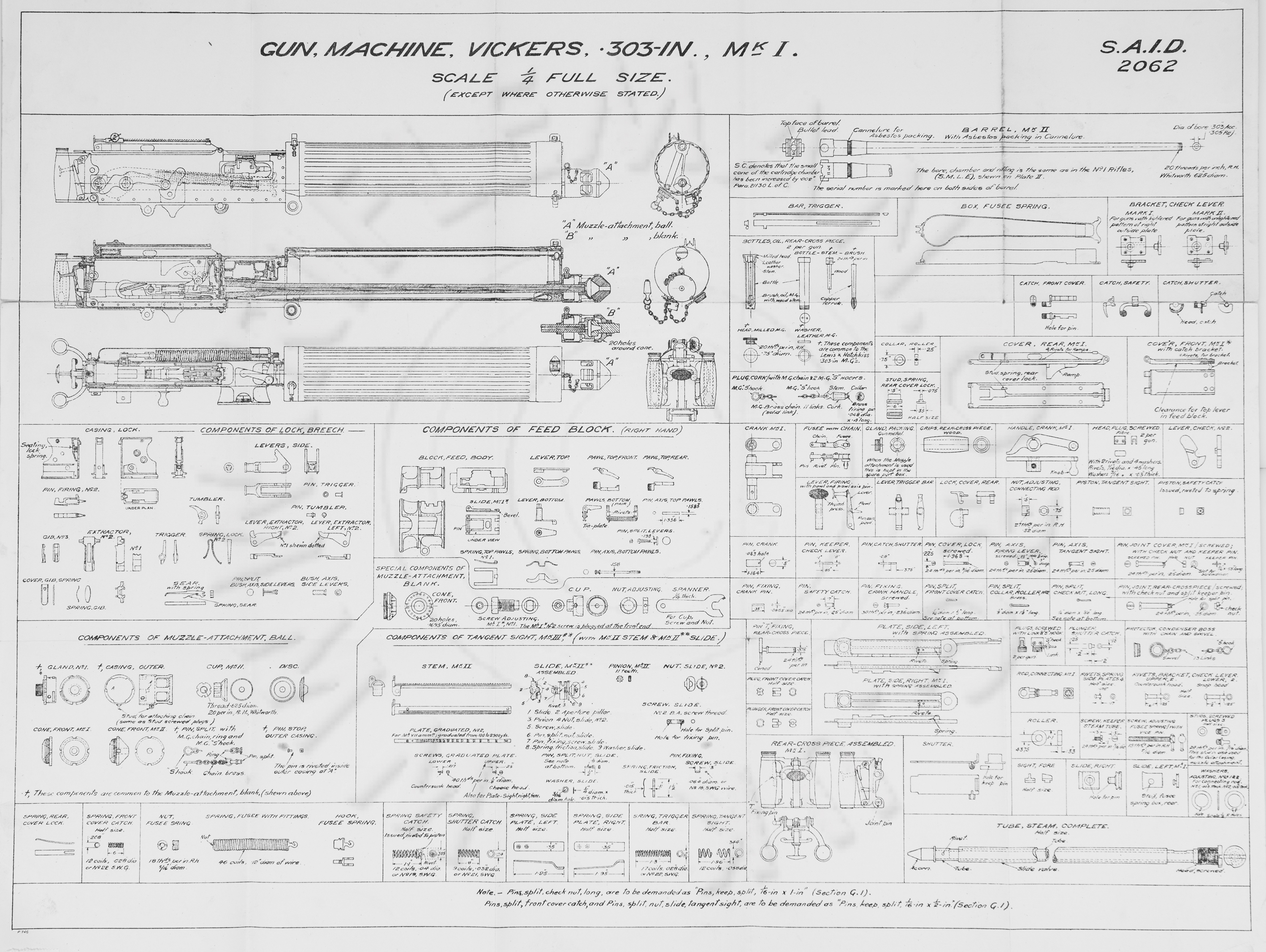

PLATE Drawing No. S.A.I.D. 2062 Gun, Machine, Vickers, .303in., Mk.I

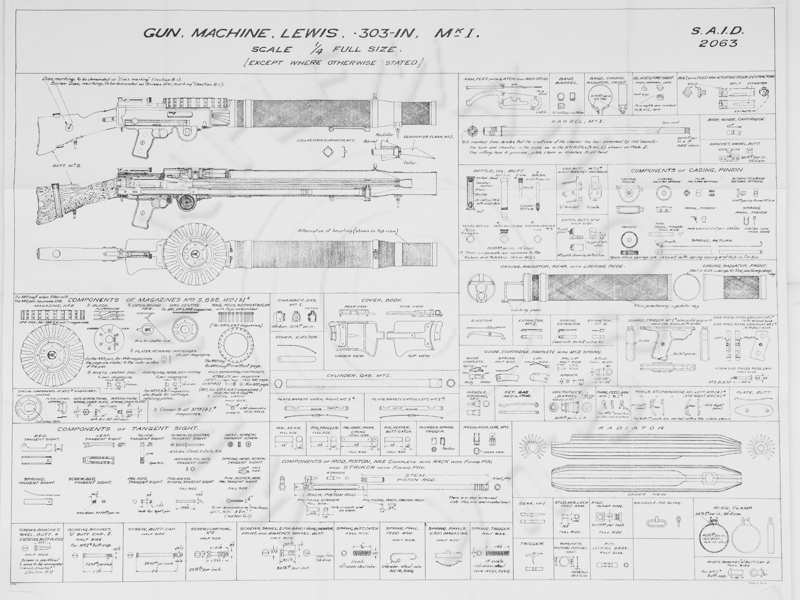

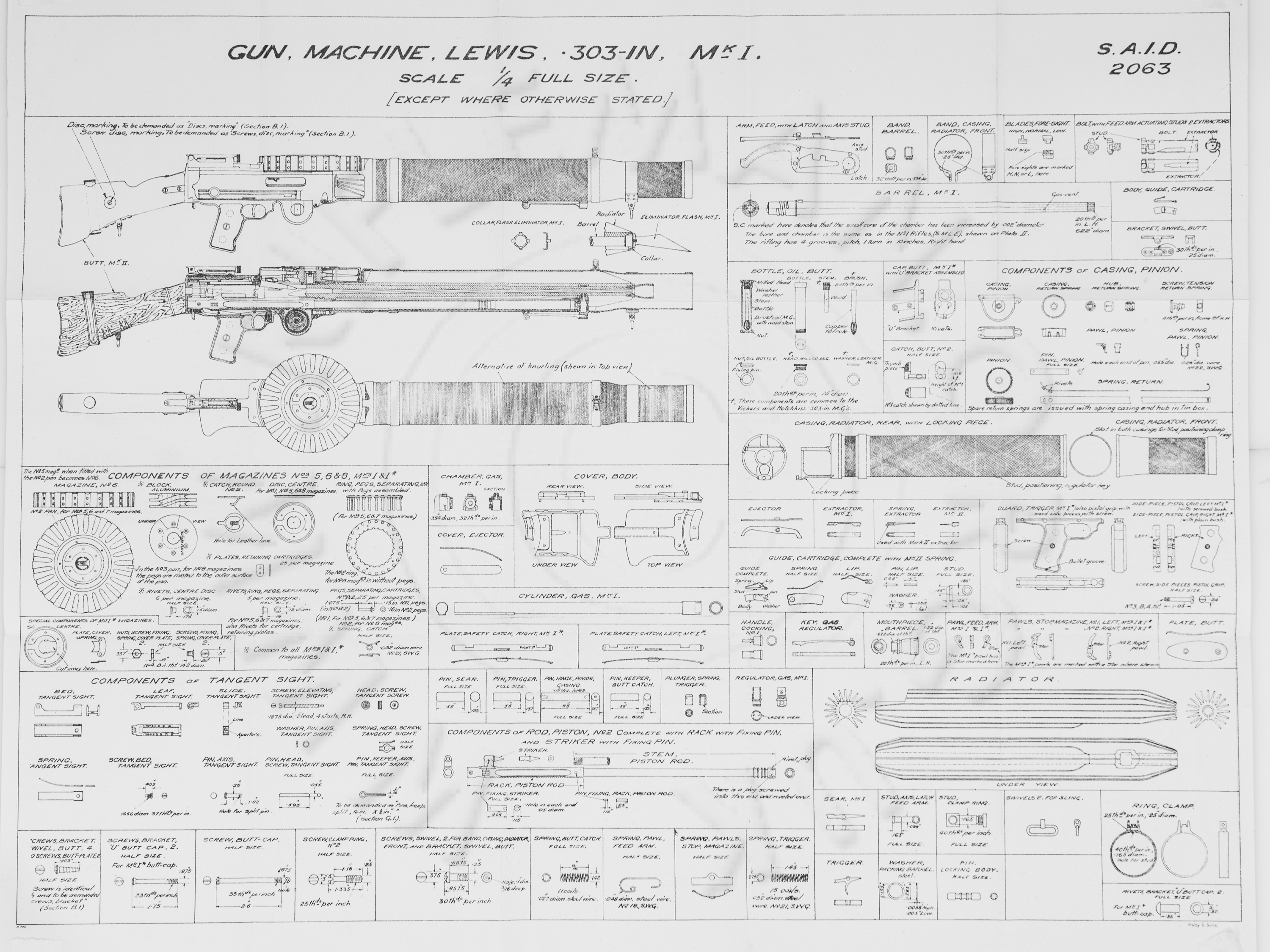

PLATE Drawing No. S.A.I.D. 2063 Gun, Machine, Lewis, .303in, Mk.I

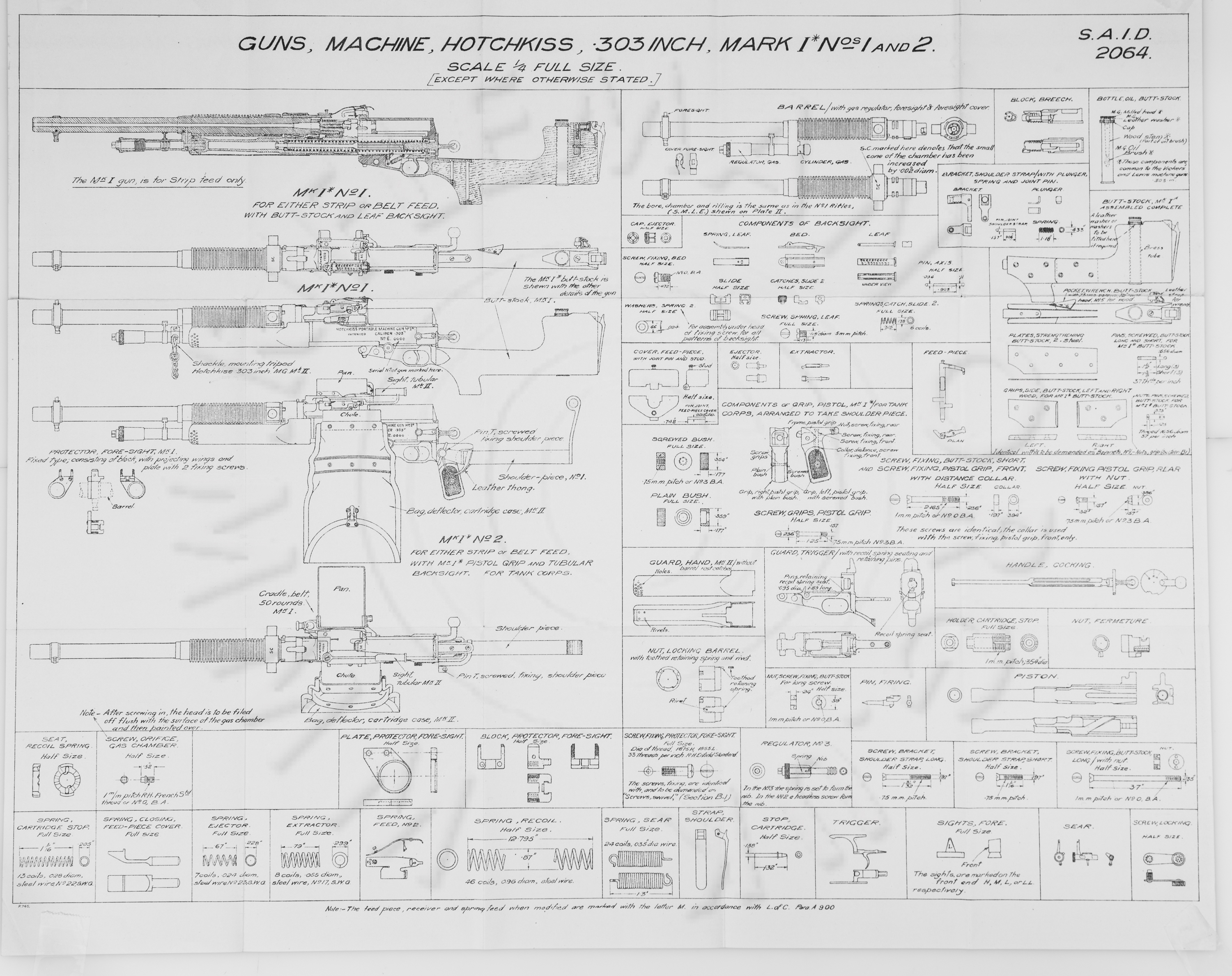

PLATE Drawing No. S.A.I.D. 2064 Guns, Machine, Hotchkiss, .303in, MARK I* Nos.1 & 2

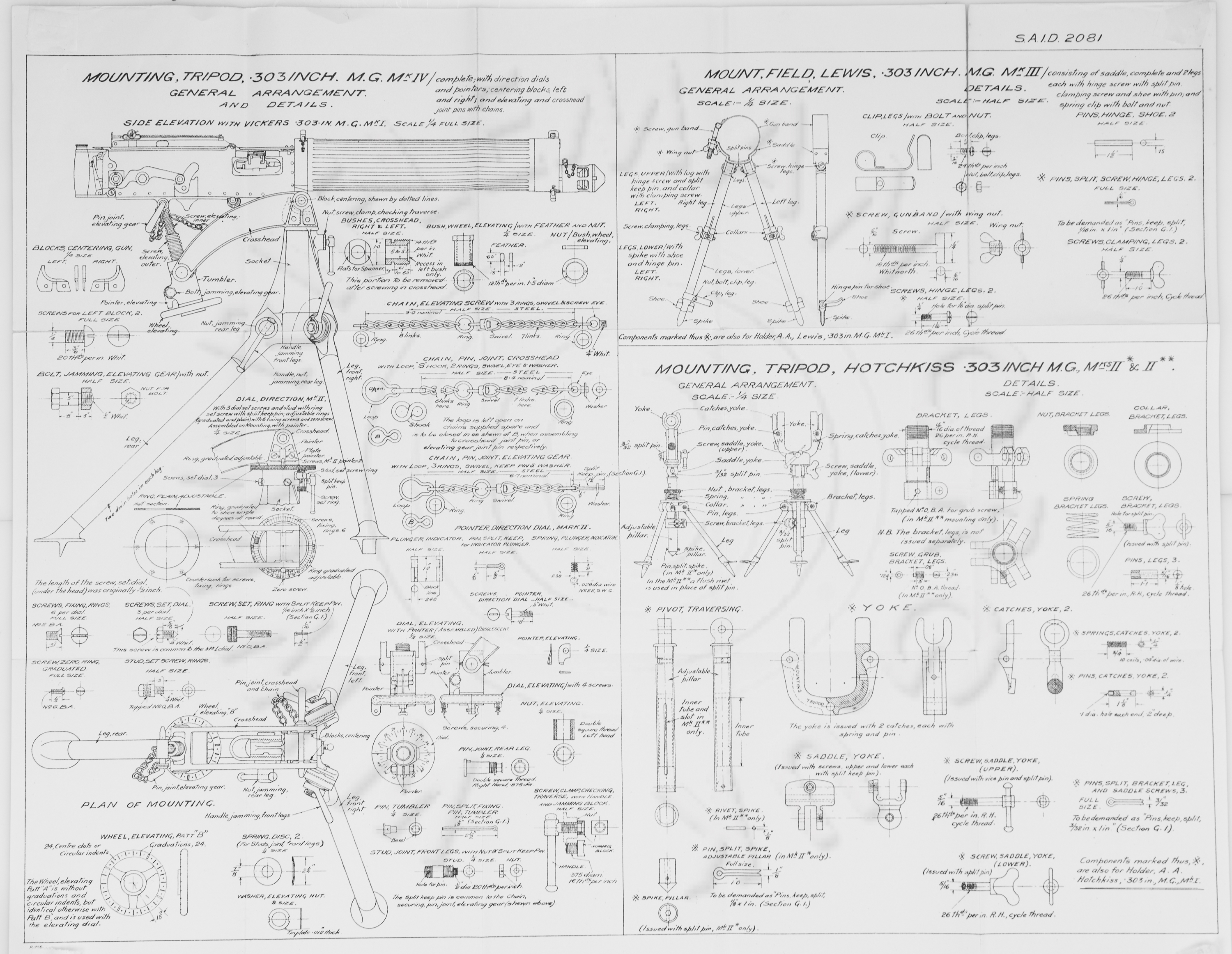

PLATE Drawing No. S.A.I.D. 2081 Mounting, Tripod, .303in, M.G. Mk.IV

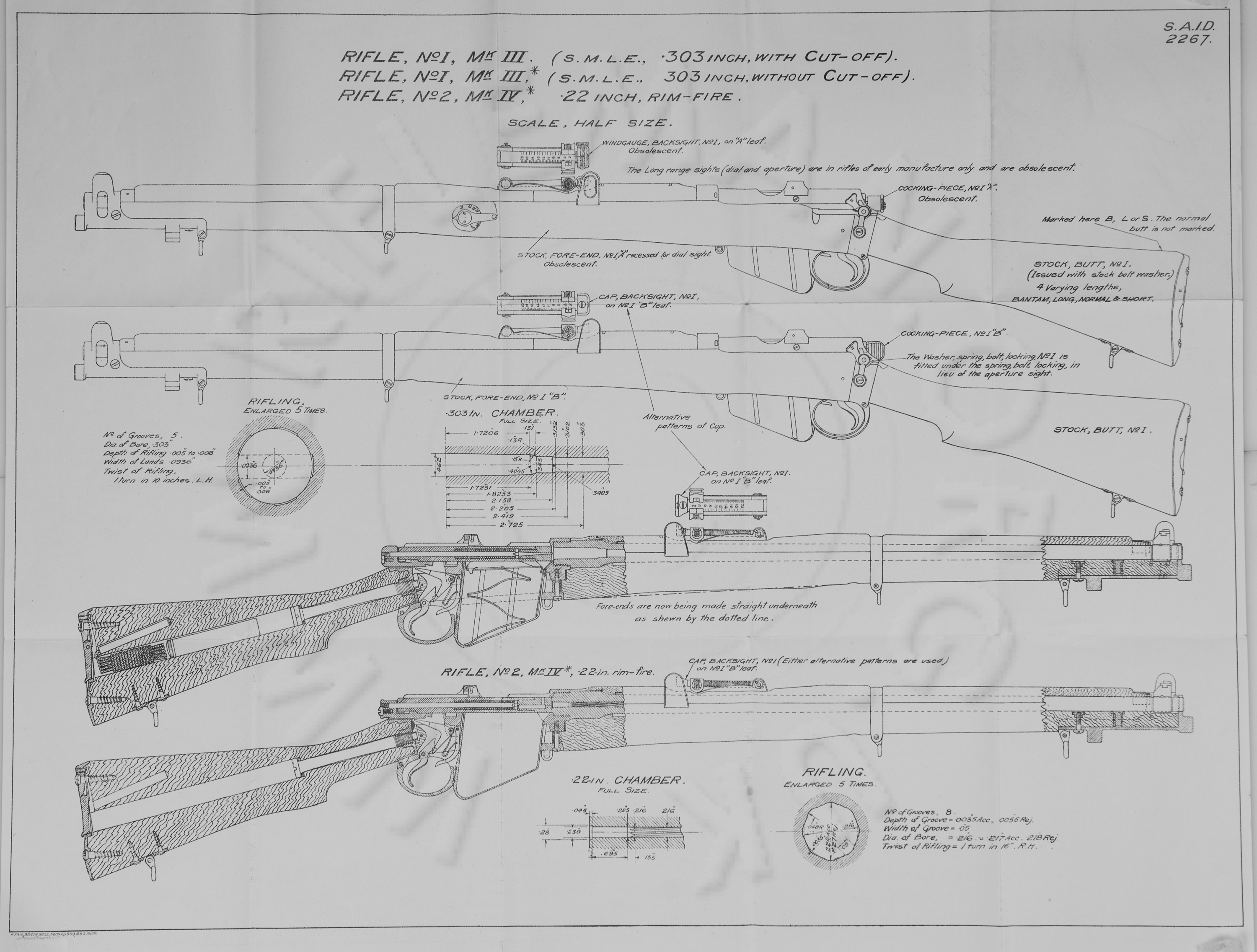

PLATE Drawing No. S.A.I.D. 2267 Rifles, No.1 Mk.III, No.1 Mk.III*, No.2 Mk.IV*

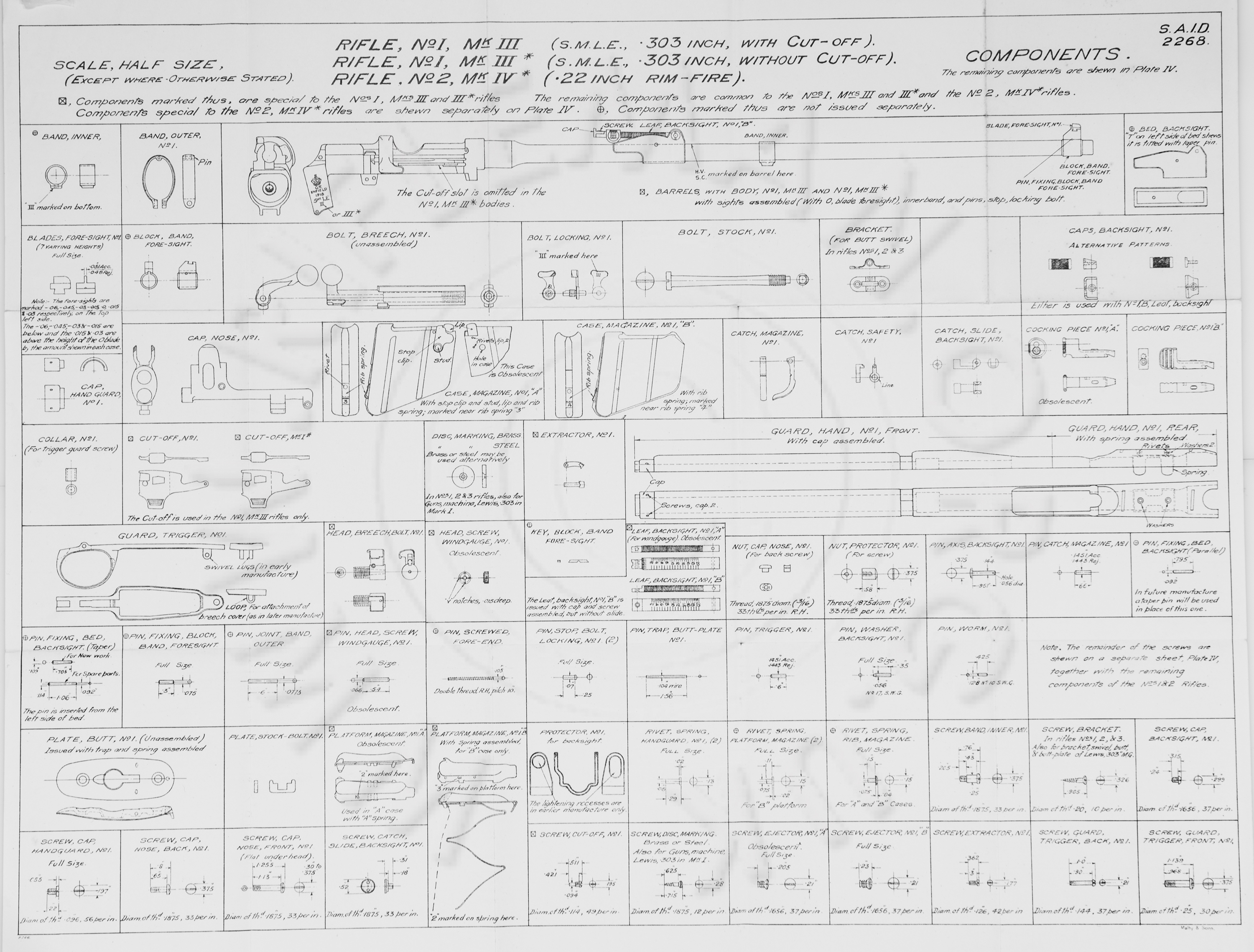

PLATE Drawing No. S.A.I.D. 2268 Rifles, No.1 Mk.III, No.1 Mk.III*, No.2 Mk.IV* - components



PLATE Drawing No. S.A.I.D. 2269 Rifles, No.1 Mk.III, No.1 Mk.III*, No.2 Mk.IV* - components

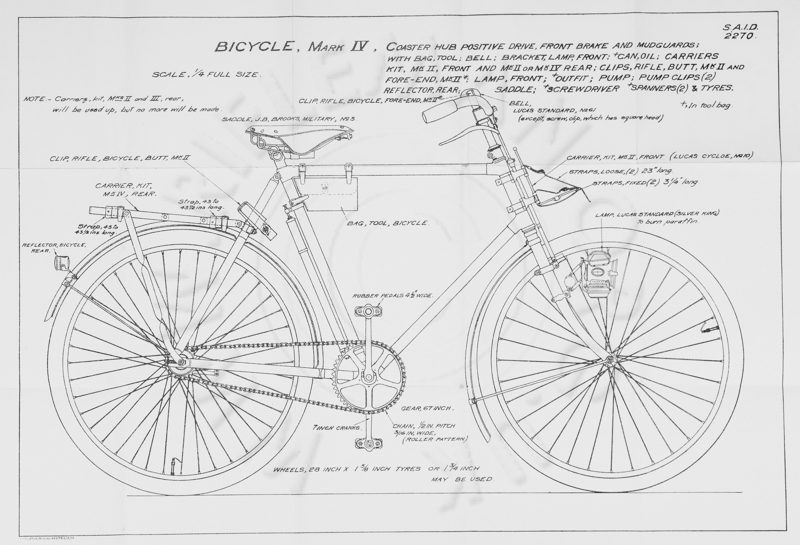

PLATE Drawing No. S.A.I.D. 2270 Bicycle, Mark IV

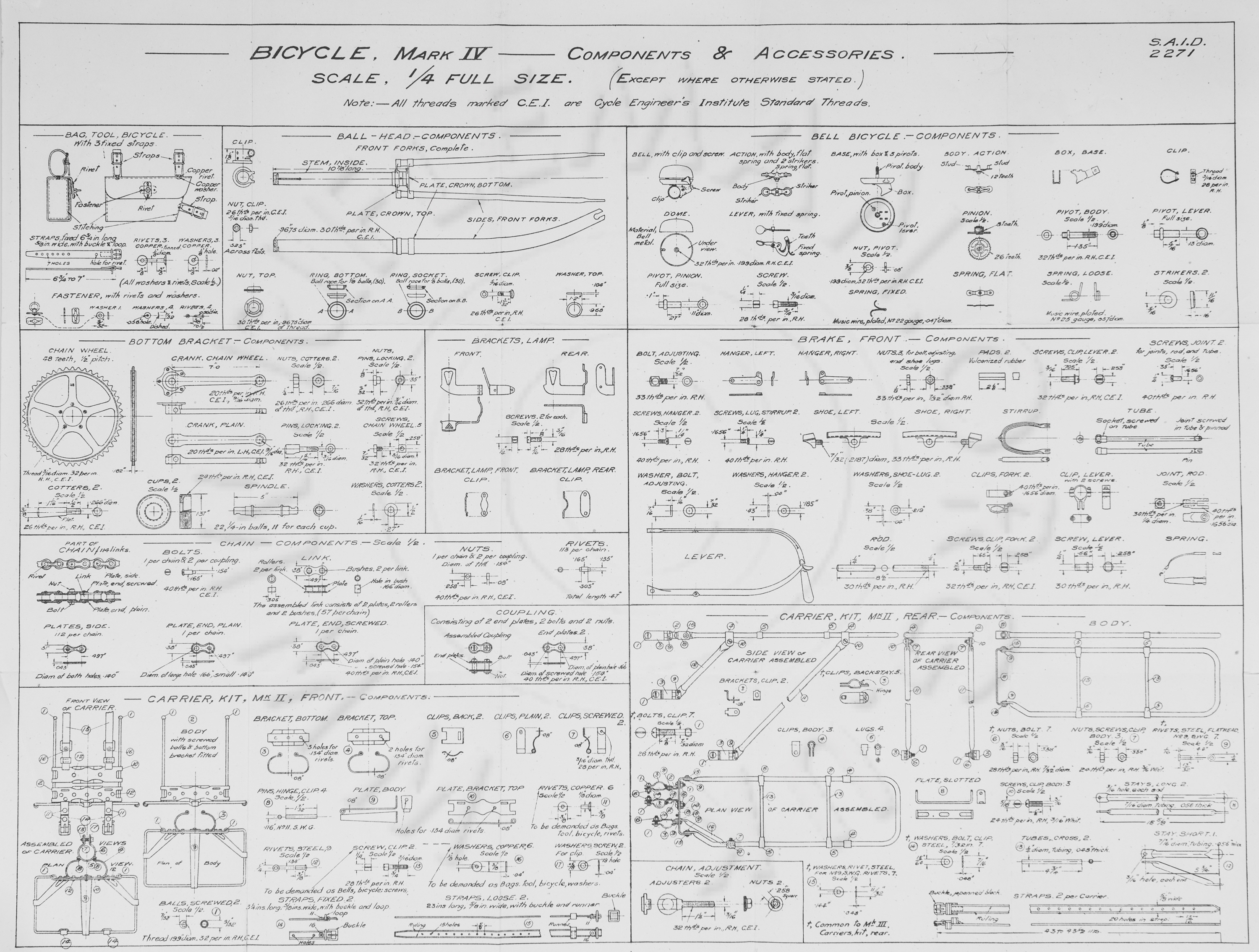

PLATE Drawing No. S.A.I.D. 2271 Bicycle, Mark IV – components and accessories

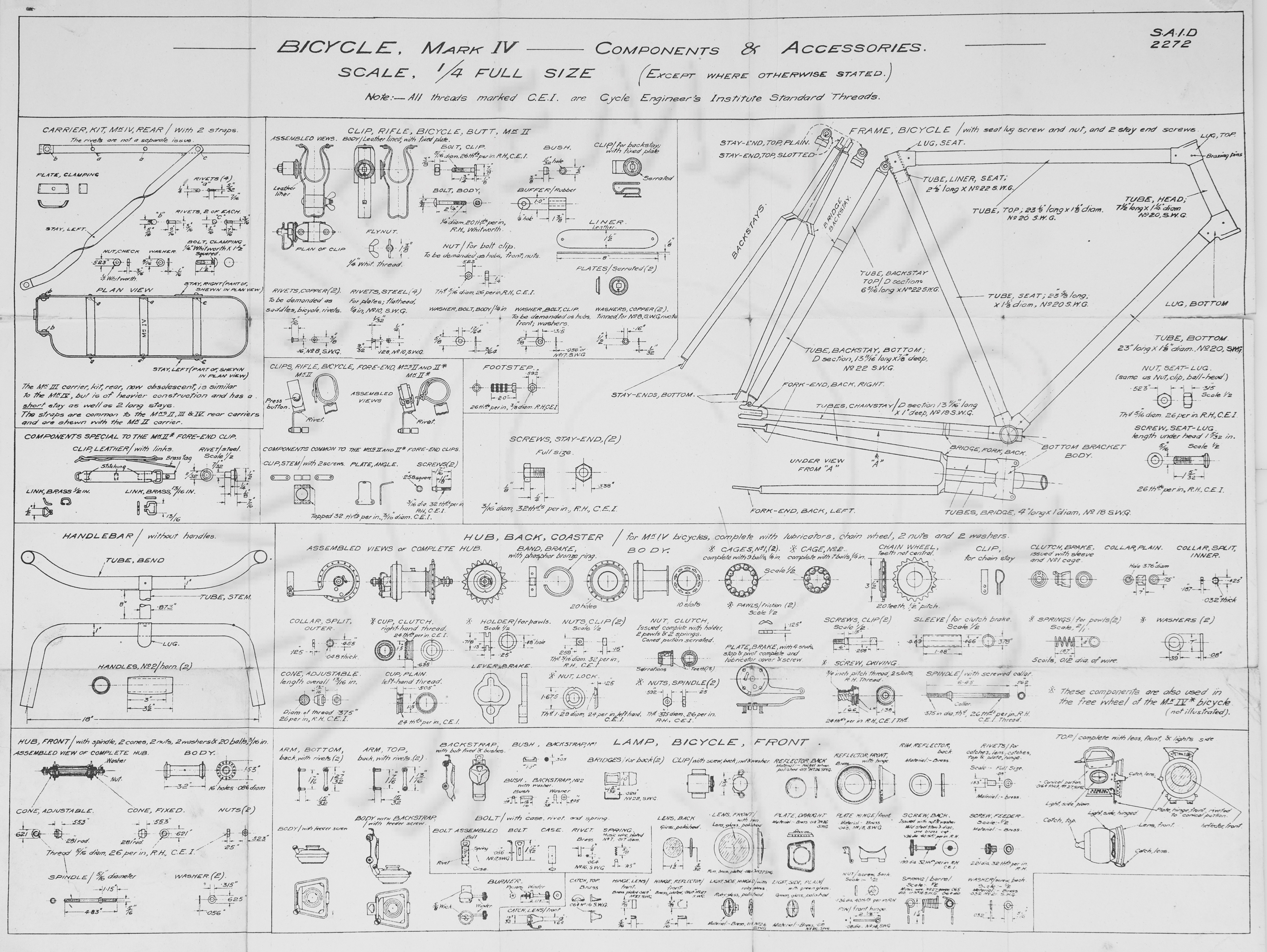

PLATE Drawing No. S.A.I.D. 2272 Bicycle, Mark IV – components and accessories

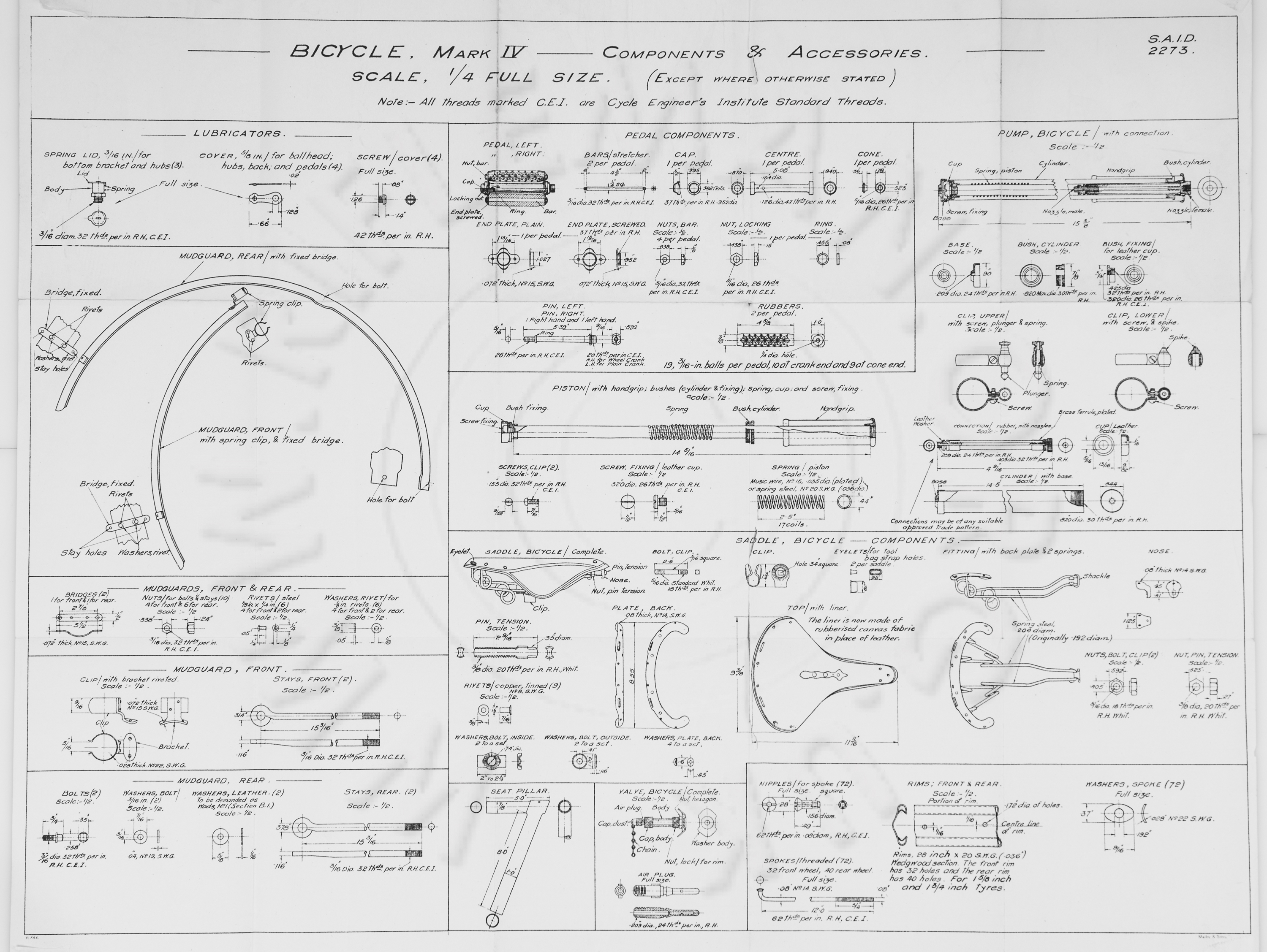

PLATE Drawing No. S.A.I.D. 2273 Bicycle, Mark IV – components and accessories

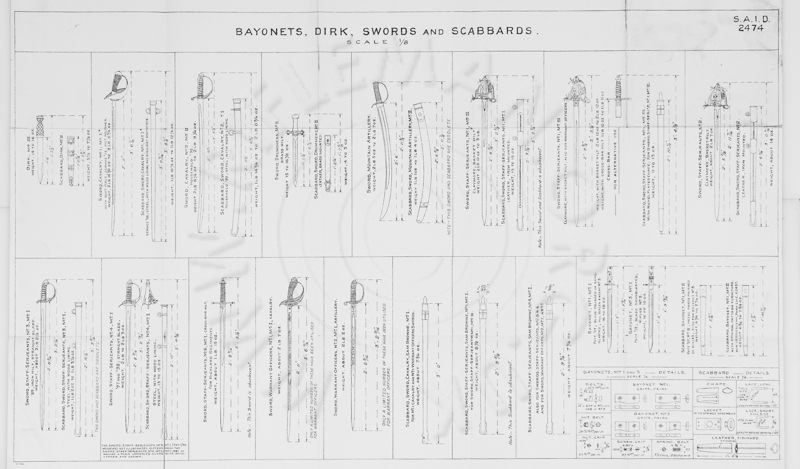

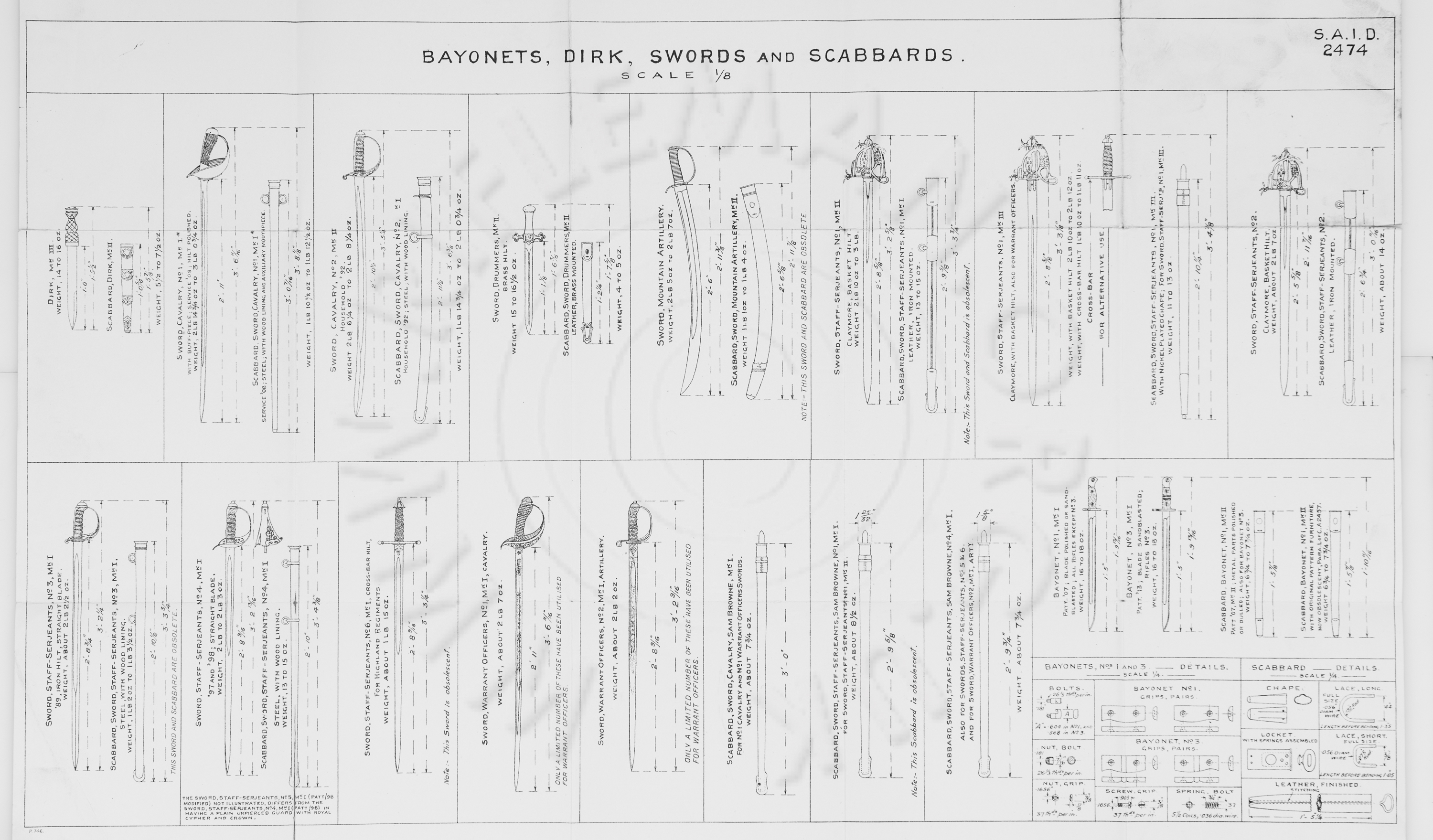

PLATE Drawing No. S.A.I.D. 2474 Bayonets, Dirks, Swords & Scabbards

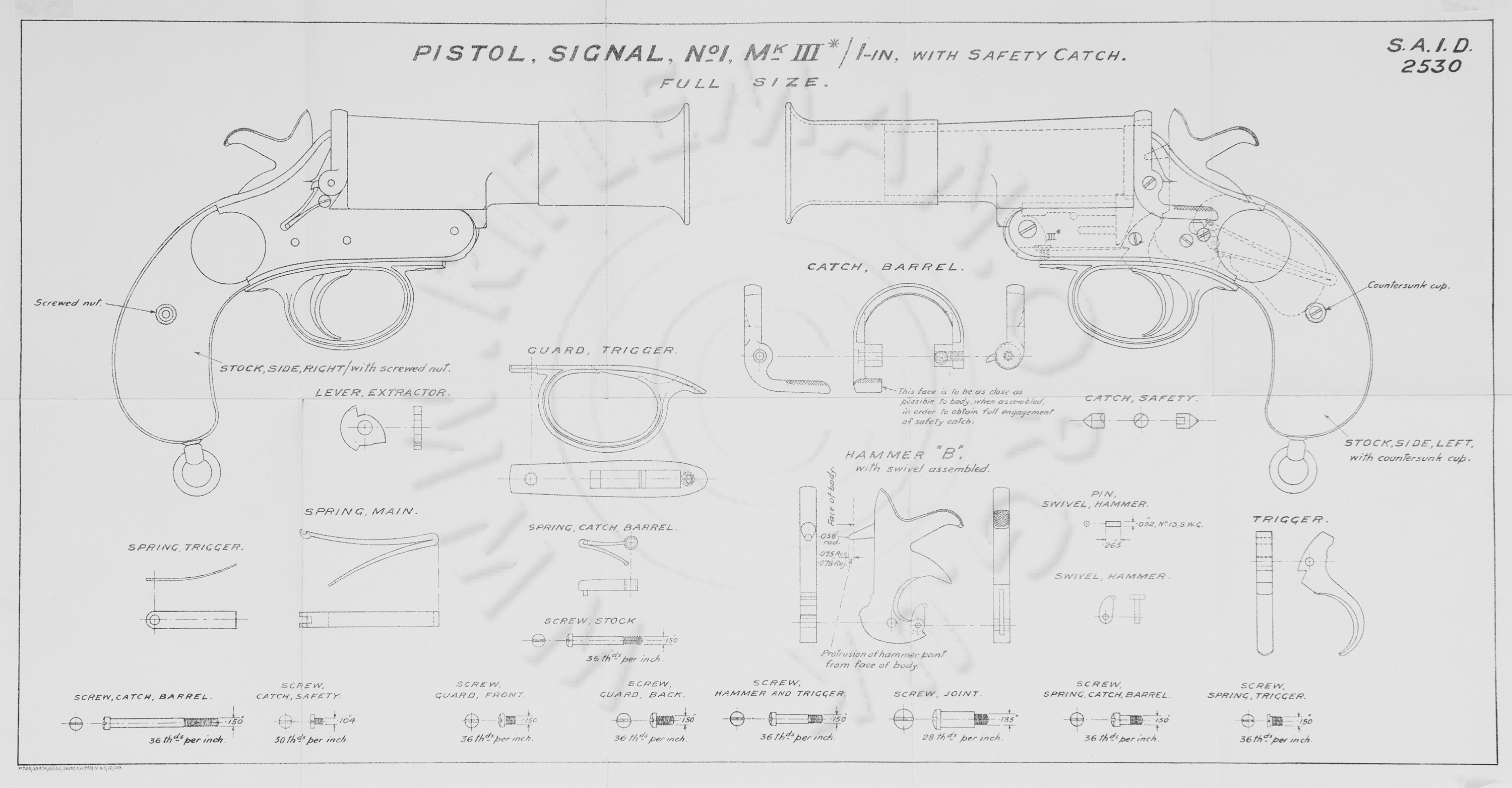

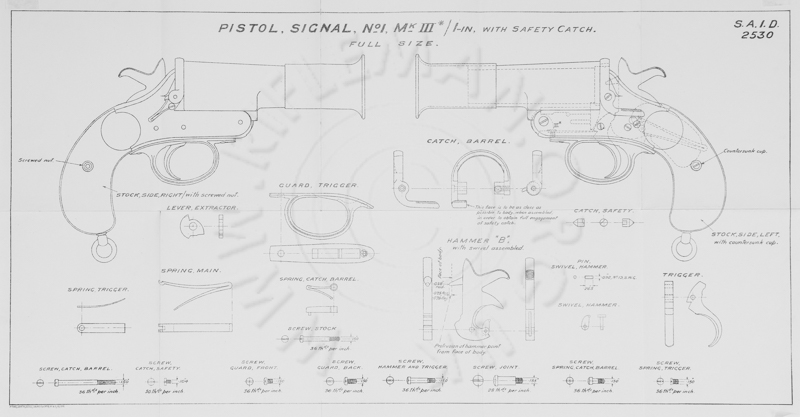

PLATE Drawing No. S.A.I.D. 2530 Pistol – Signal, No.1 Mk.III

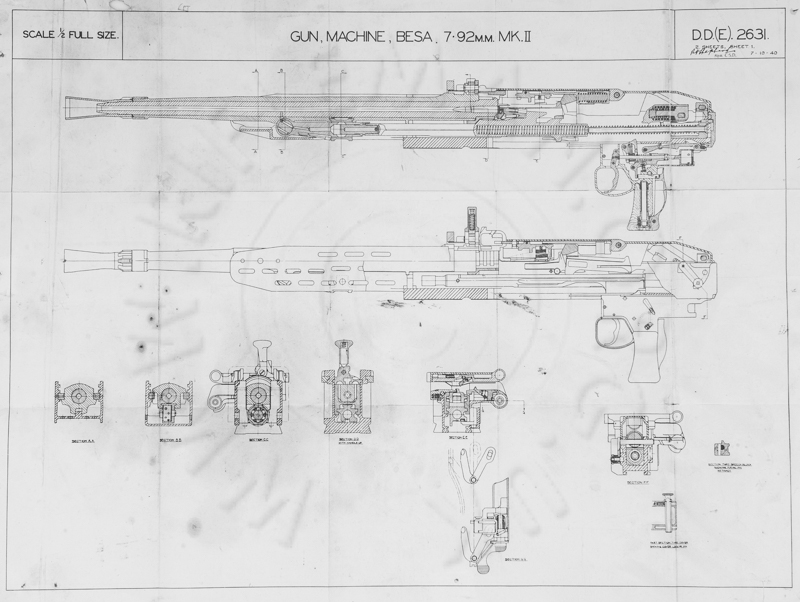

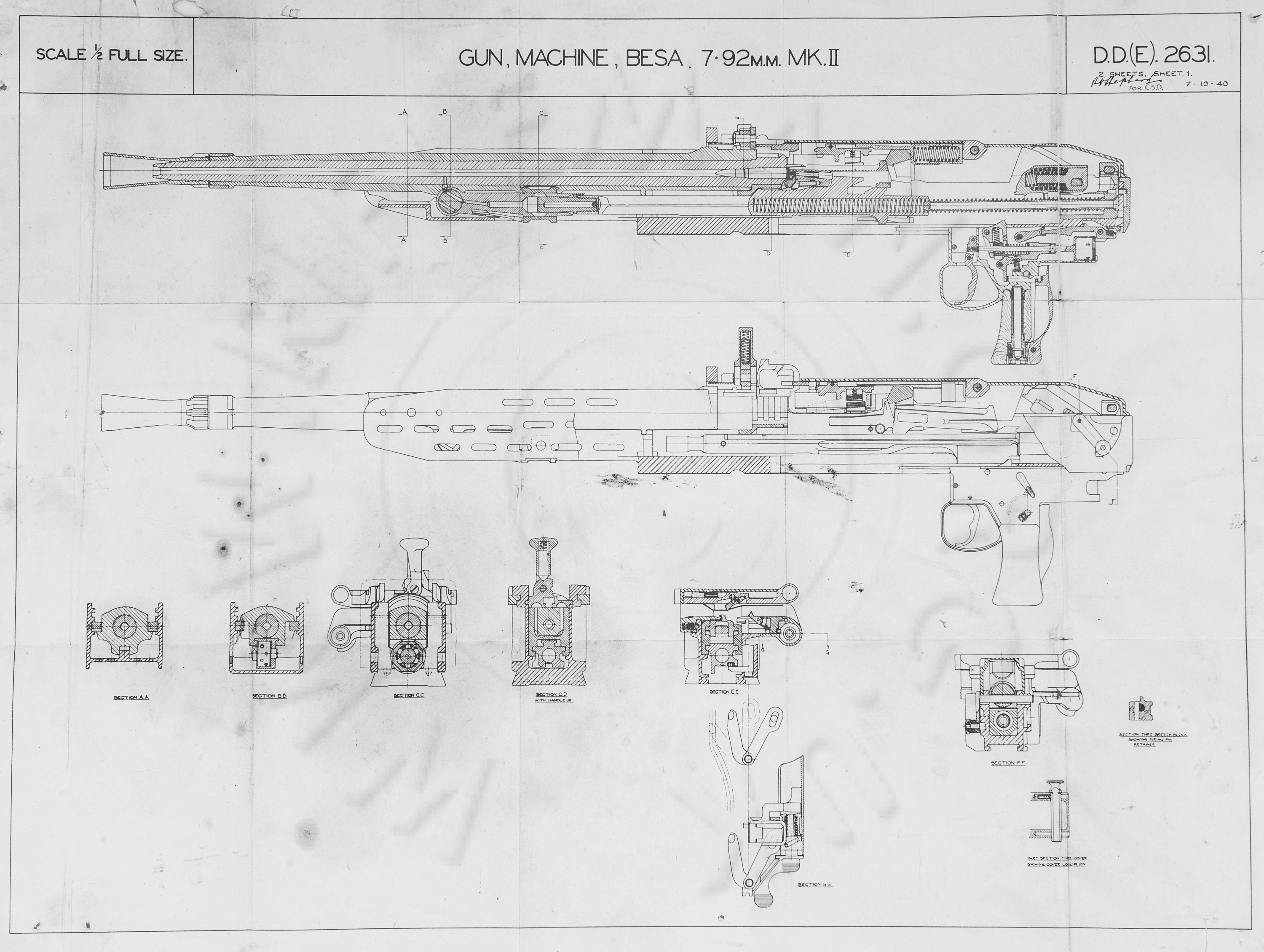

PLATE Drawing No. D.D(E) 2631  Sheet 1 of 2; Gun, Machine, BESA. 7.92mm, Mk.II

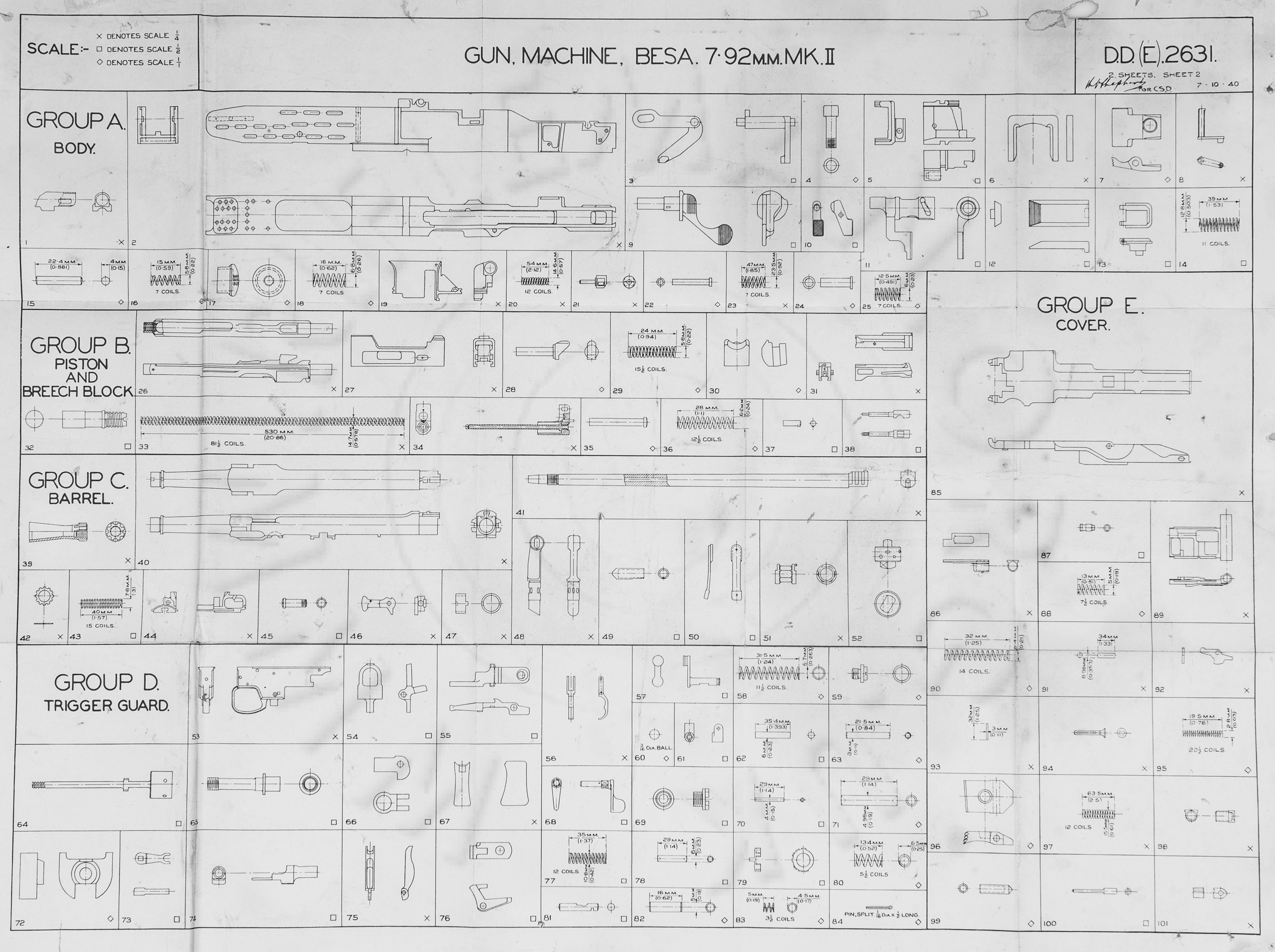

PLATE Drawing No. D.D(E) 2631  Sheet 2 of 2; Gun, Machine, BESA. 7.92mm, Mk.II

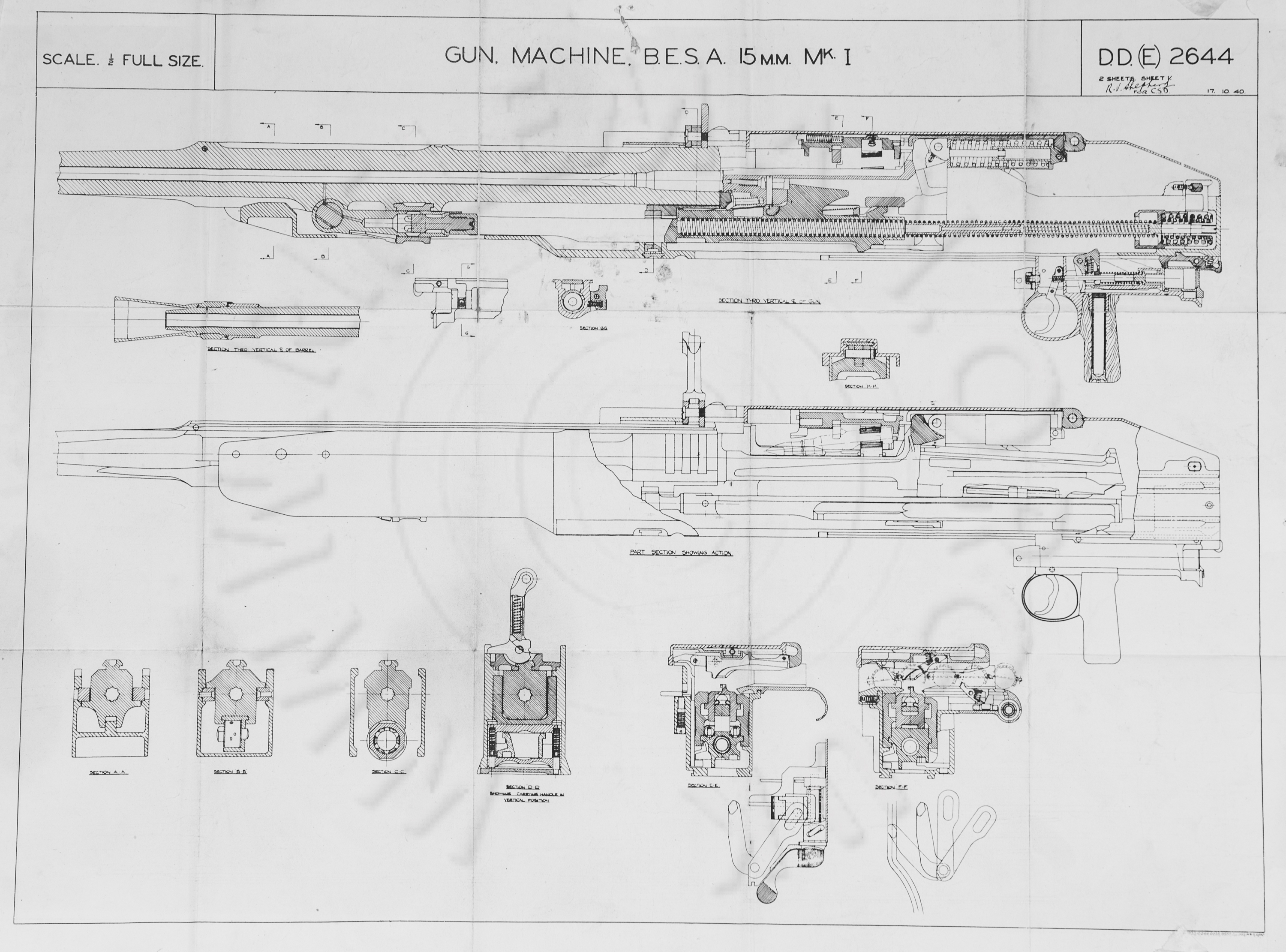

PLATE Drawing No. D.D(E) 2644  Sheet 1 of 2; Gun, Machine, BESA.  15mm, Mk.I

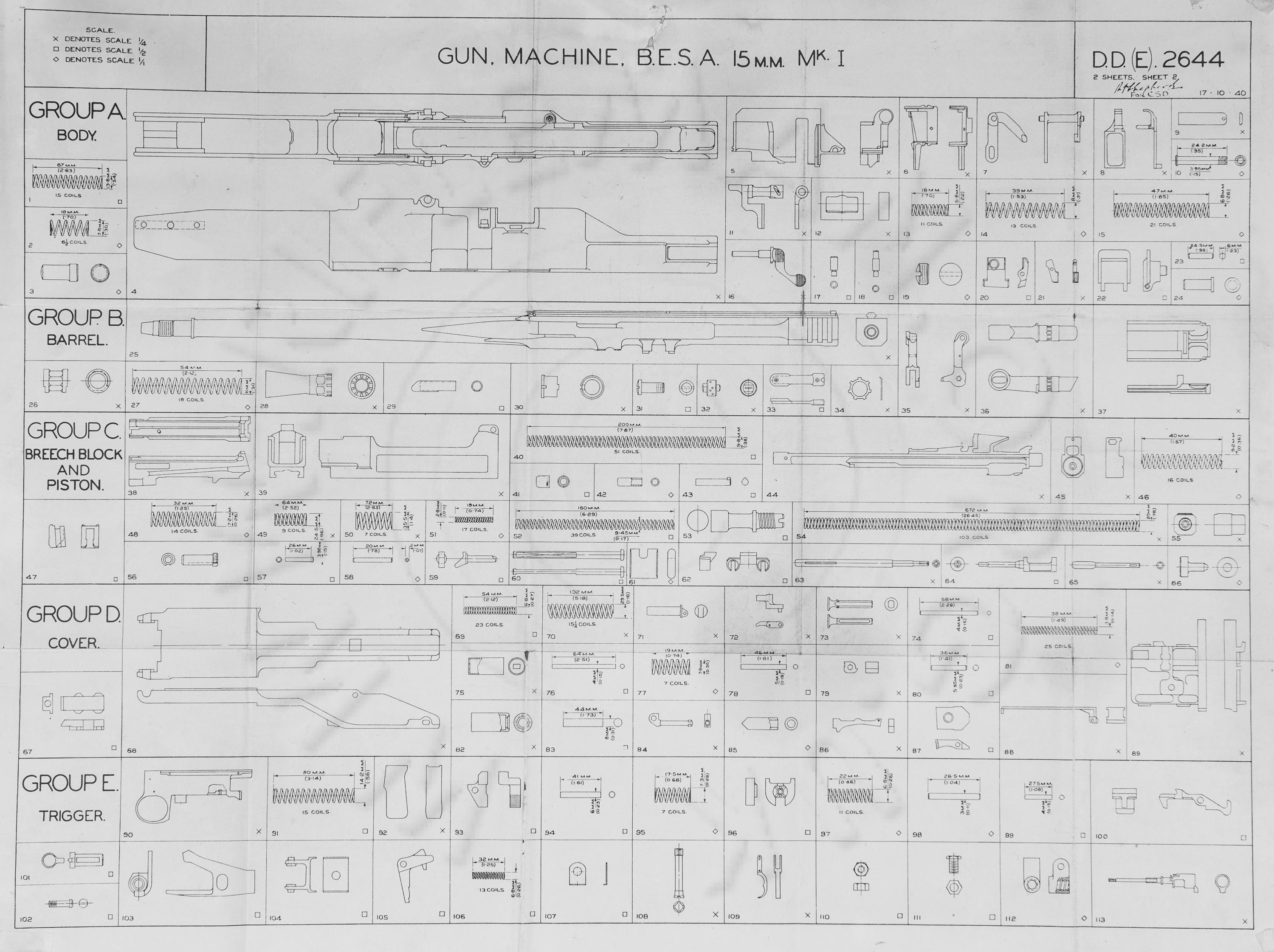

PLATE Drawing No. D.D(E) 2644  Sheet 2 of 2; Gun, Machine, BESA.  15mm, Mk.I

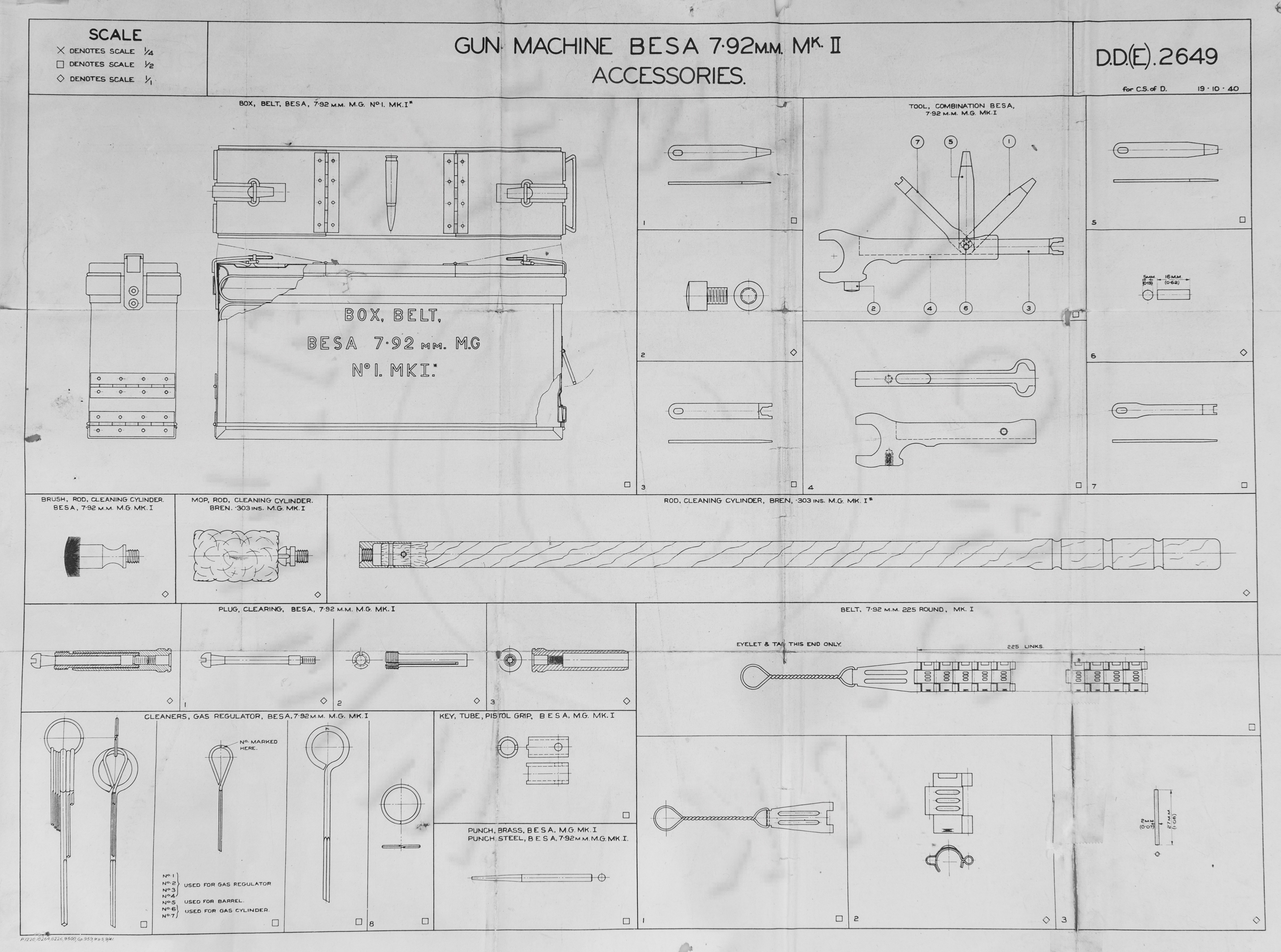

PLATE Drawing No. D.D(E) 2649  Gun, Machine, BESA.  7.92mm, Mk.II – accessories

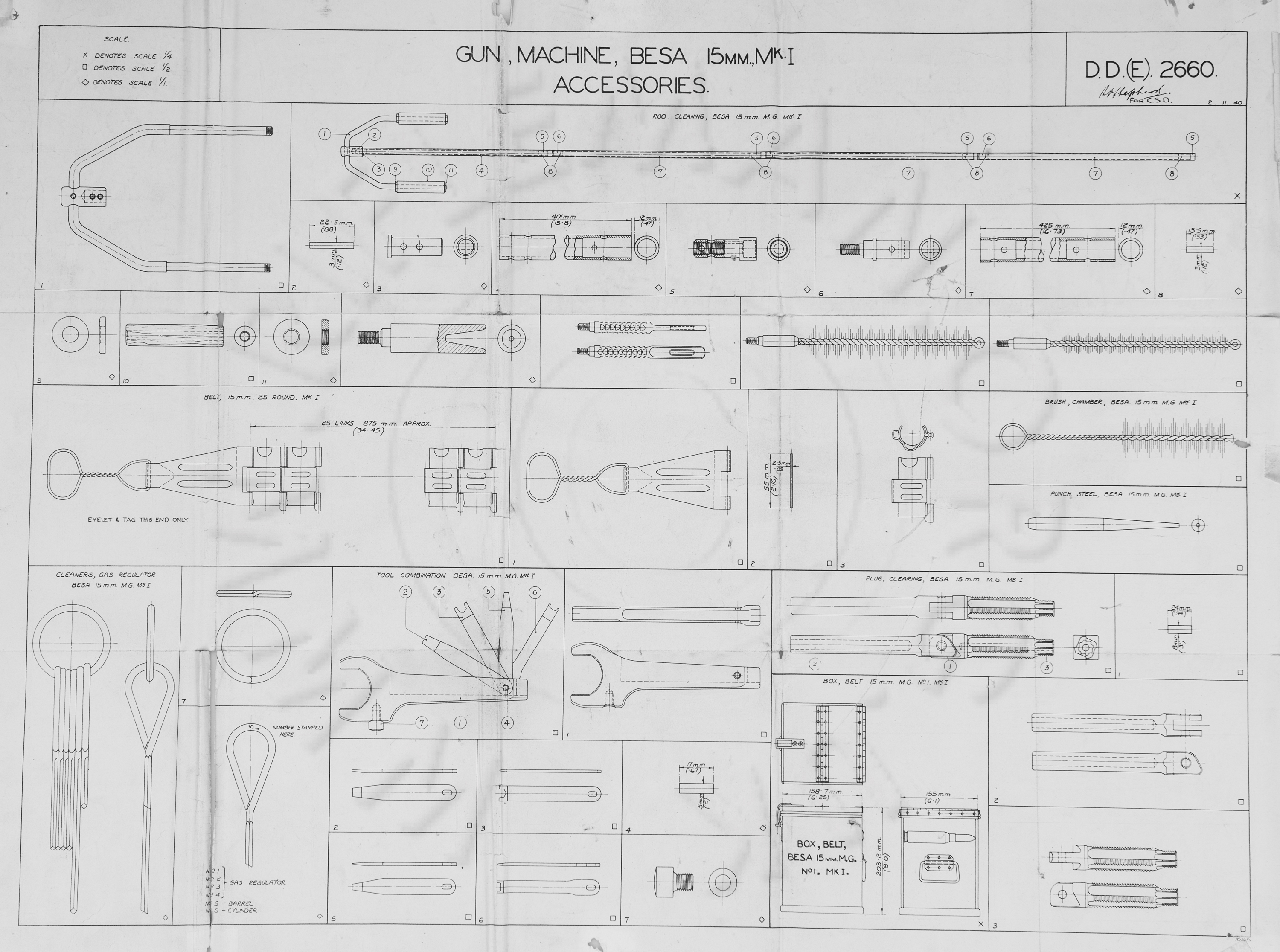

PLATE Drawing No. D.D(E) 2660  Gun, Machine, BESA.  15mm, Mk.I – accessories
