for full page display.Complete text and illustrated plates
See also the INSTRUCTIONS for ARMOURERS 1897 and the INSTRUCTIONS for ARMOURERS 1931
The manual covers all British standard issue small-arms of the time, as well as machine guns, general accessories, and the military bicycle.
The plates referred to in the text are illustrated separately below, and each is zoomable for close inspection.
This is in the form of a text-searchable flip-page document that may take a few moments to load.
Double tap tablet or click for full page display.
Click or hover over each image to view in high resolution
PLATE I

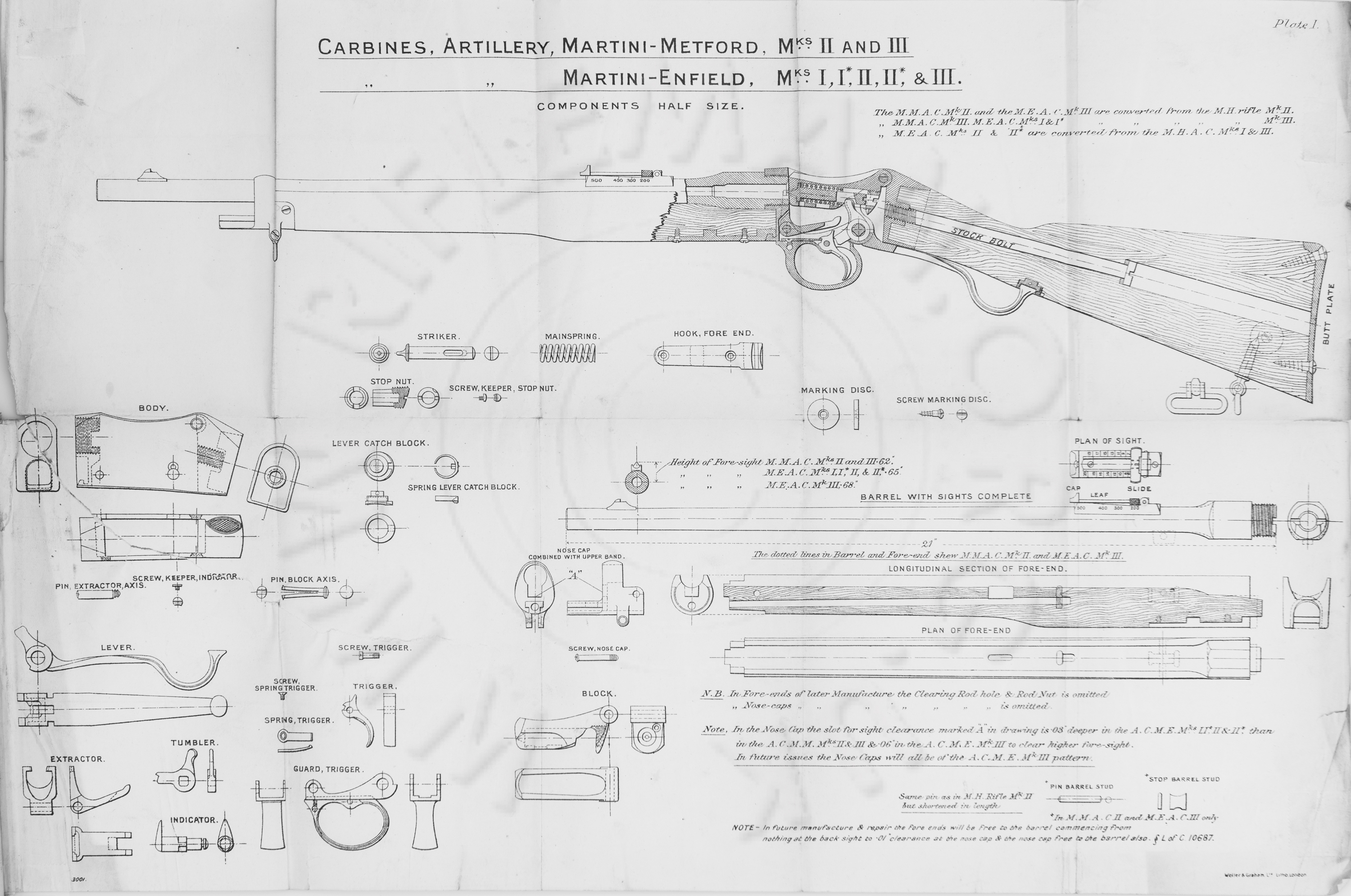

Carbines, Artillery, Martini-Metford, Mks. II and III; Martini-Enfield, Mks. I, I*, II, II8, & III.
PLATE II

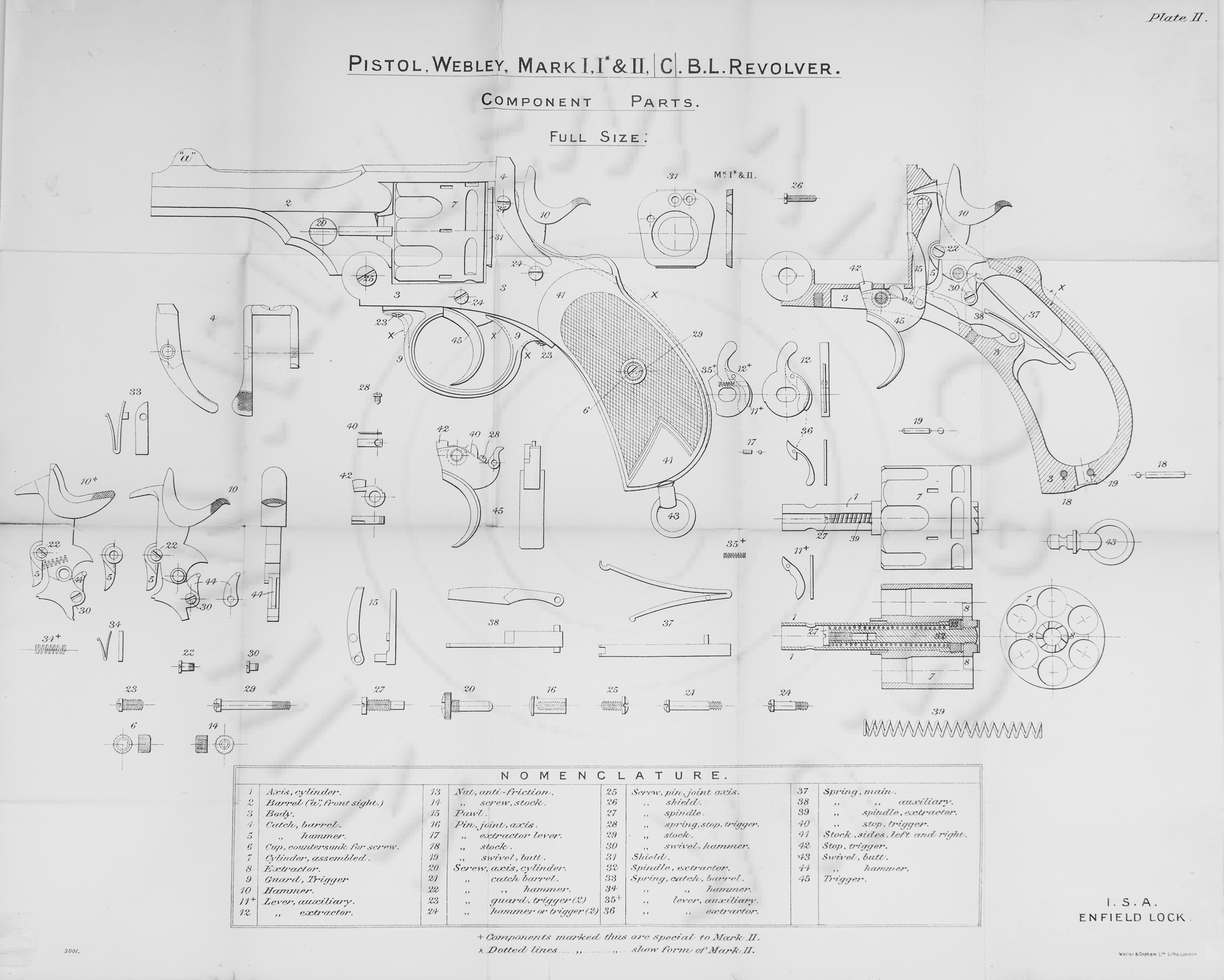

Pistol, Webley, Mark I, I* & II. C.B.L. Revolver.
PLATE III

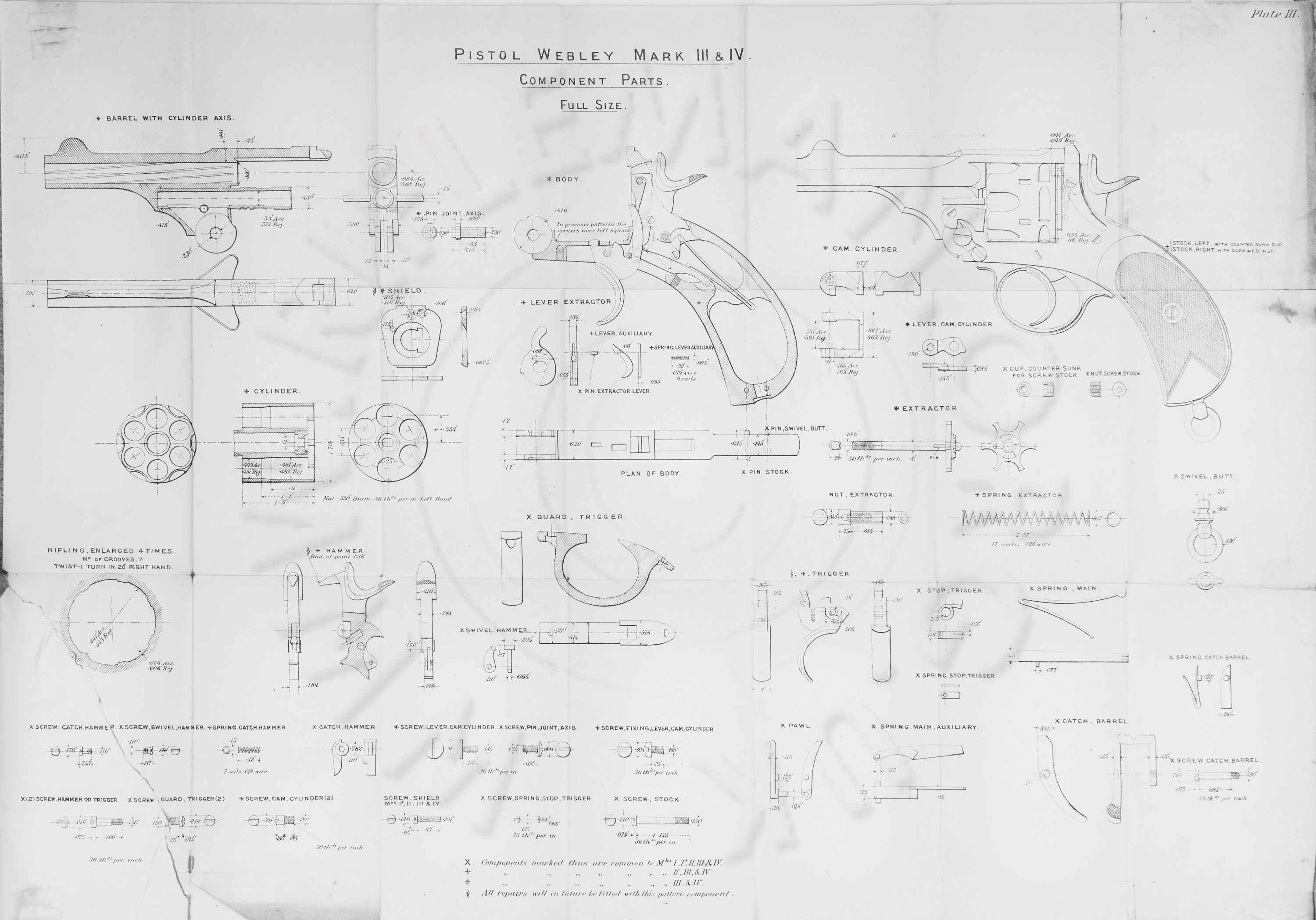

Pistol, Webley, Marks III & IV.
PLATE IV

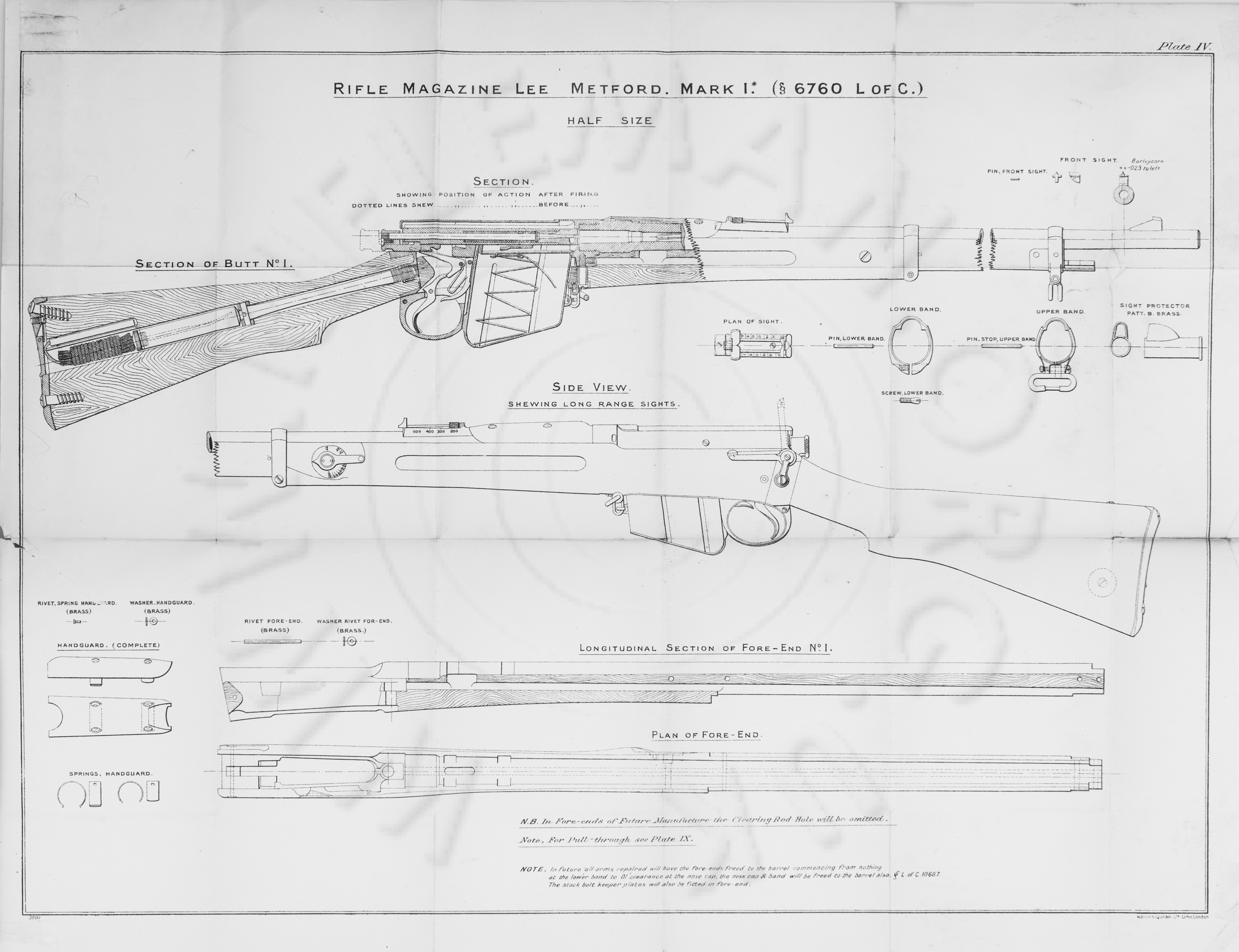

Rifle, Magazine, Lee-Metford, Mark I*. ( List of Changes Reference No. 6760)
PLATE V

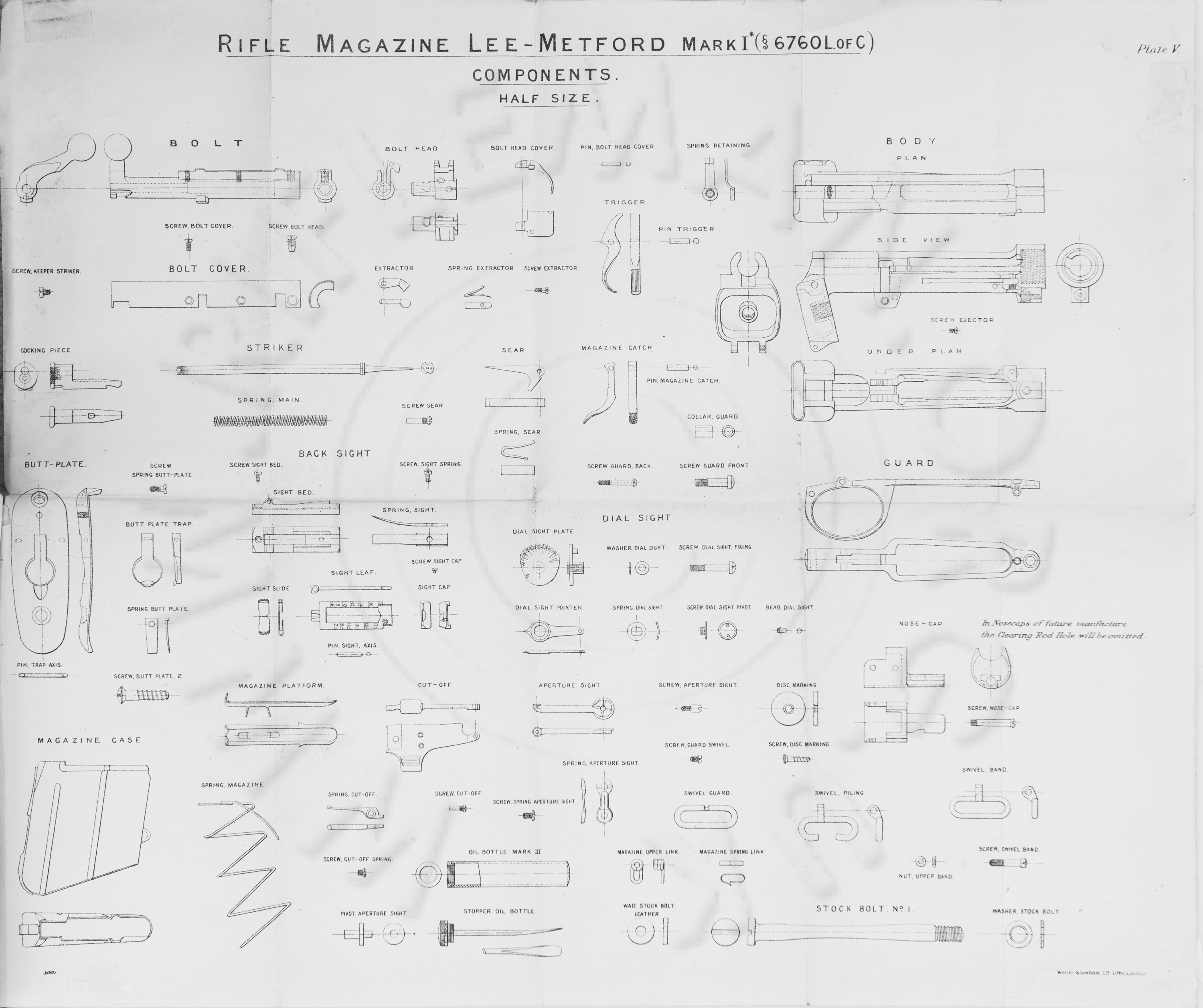

Rifle, Magazine, Lee-Metford, Mark I*. ( List of Changes Reference No. 6760) - Components
PLATE VI

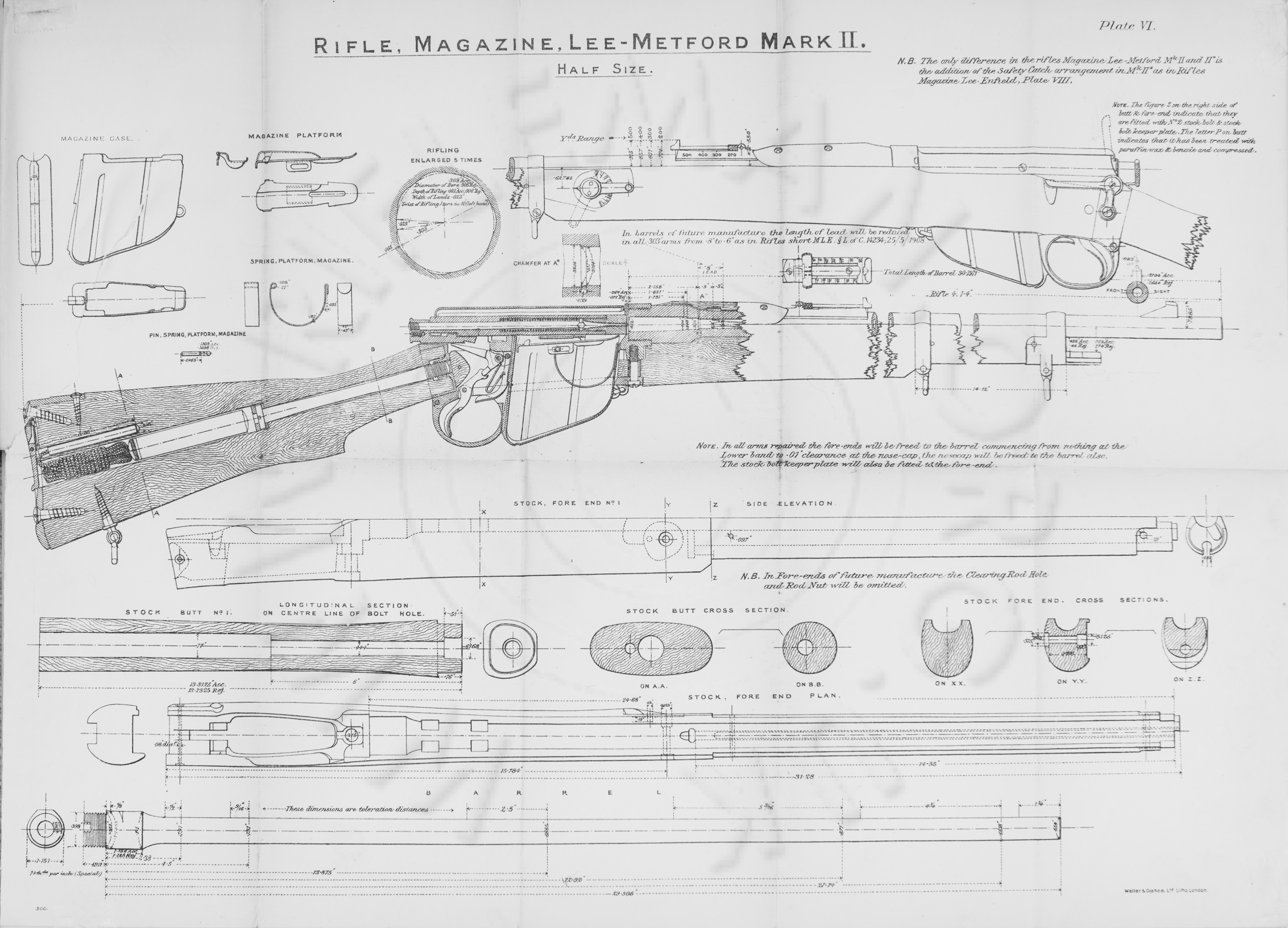

Rifle, Magazine, Lee-Metford Mark II.
PLATE VII

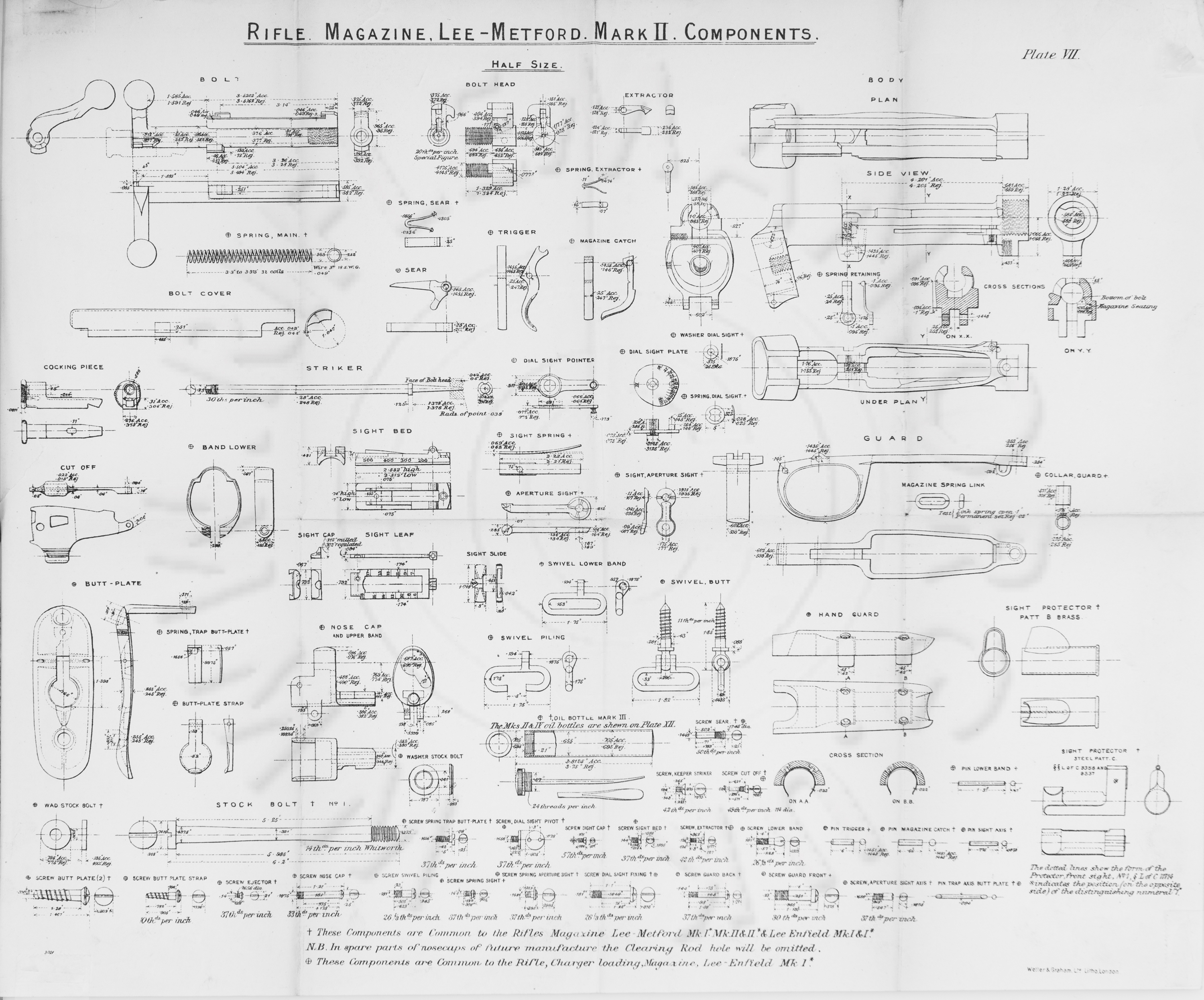

Rifle, Magazine, Lee-Metford Mark II. - Components
PLATE VIII

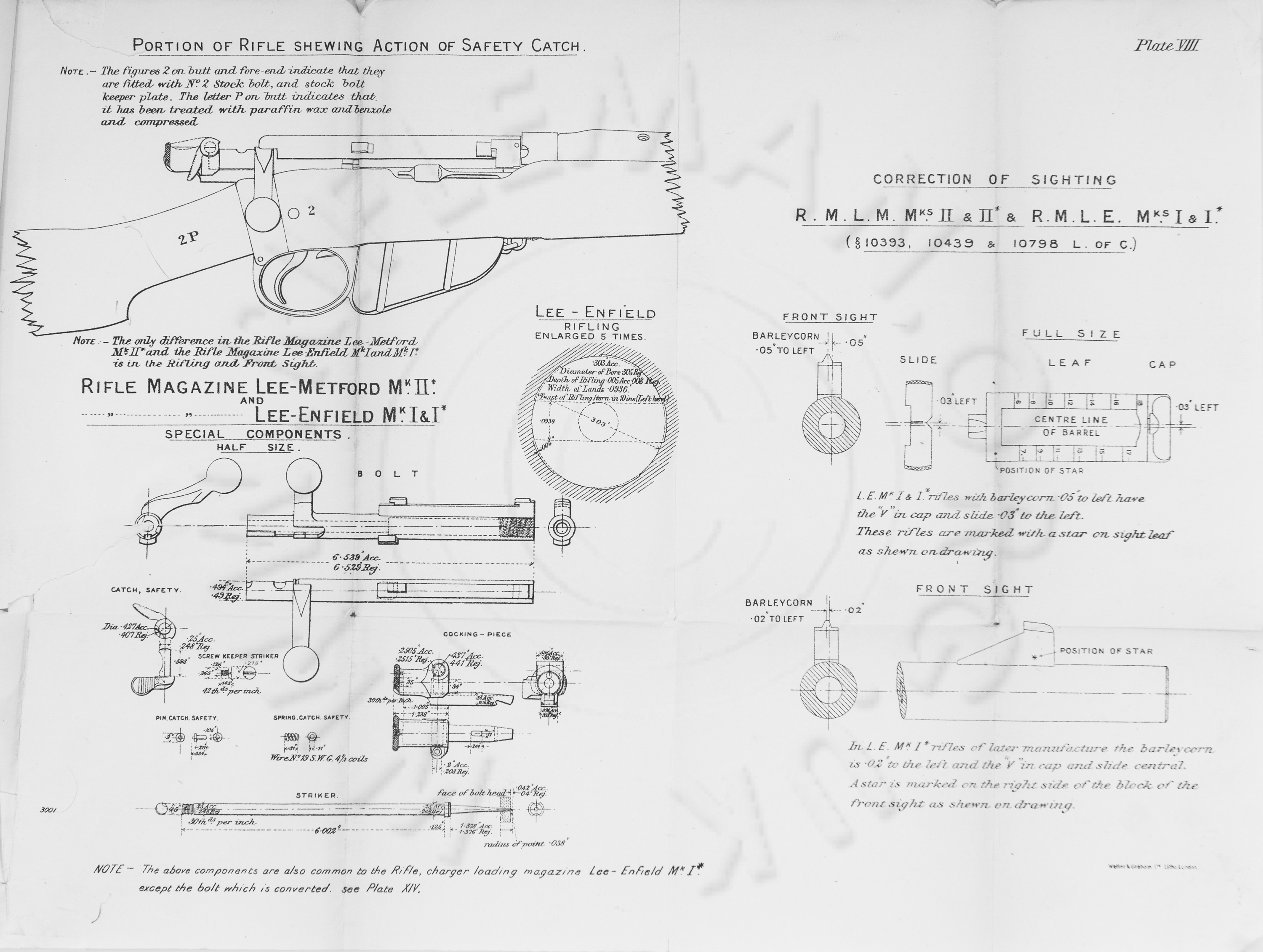

Correction of Sighting for Rifles, Magazine, Lee-Metford Mks. II & II* and Rifles, Magazine Lee-Enfield MKs. I & I*.
Includes drawings of portion of rifle showing safety catch - and components, as well as rear and fore-sight adjustments.
PLATE IX

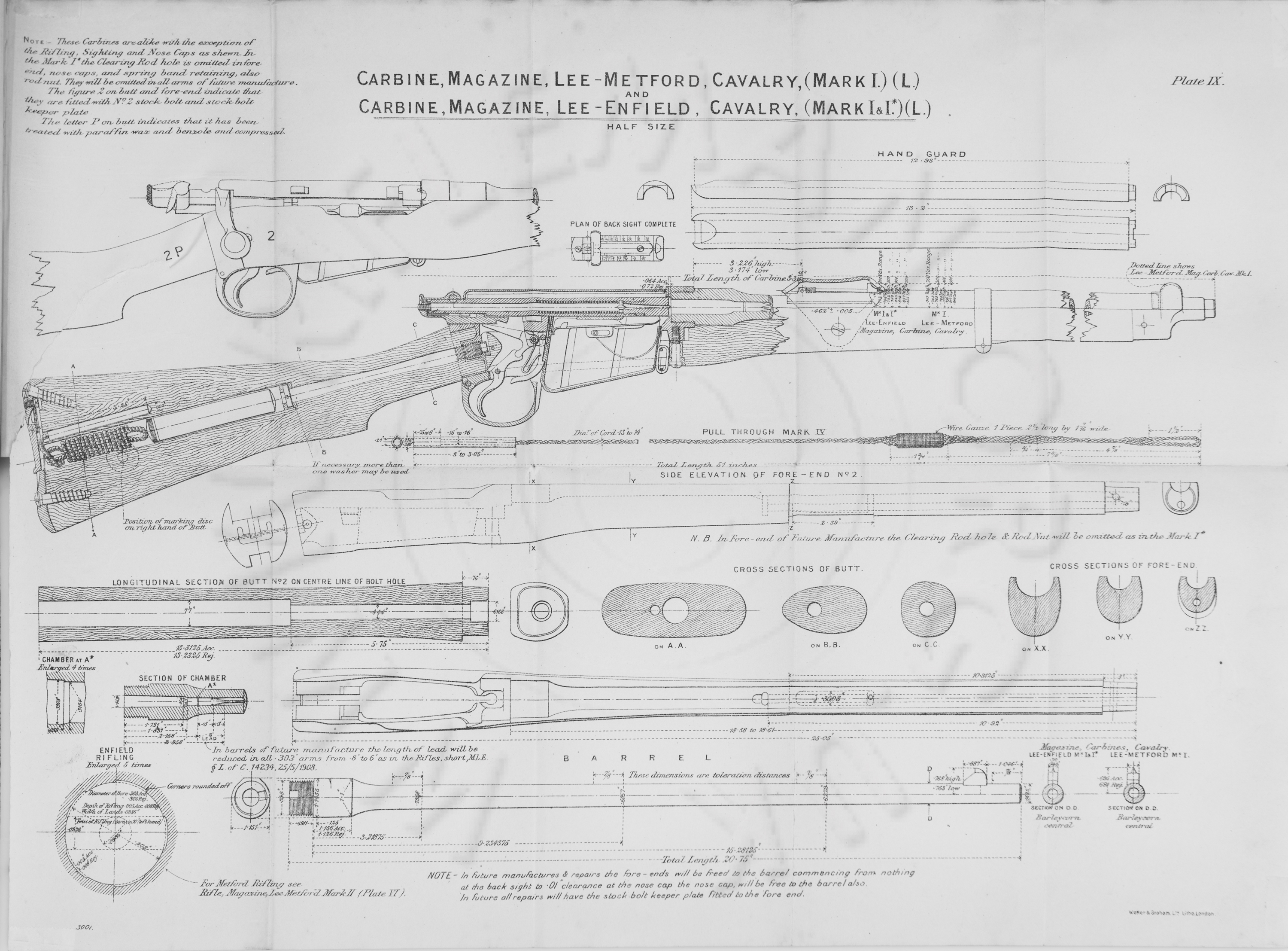

Carbine, Magazine, Lee-Metford, Cavalry, (Mark I); (L)
Carbine, Magazine, Lee-Enfield, Cavalry, (Mark I & I*); (L)
PLATE X

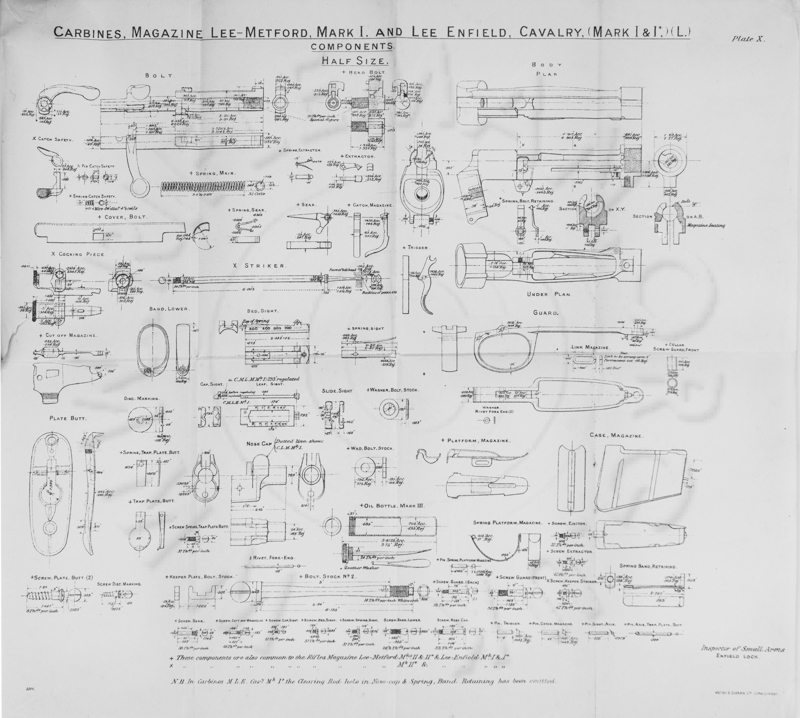

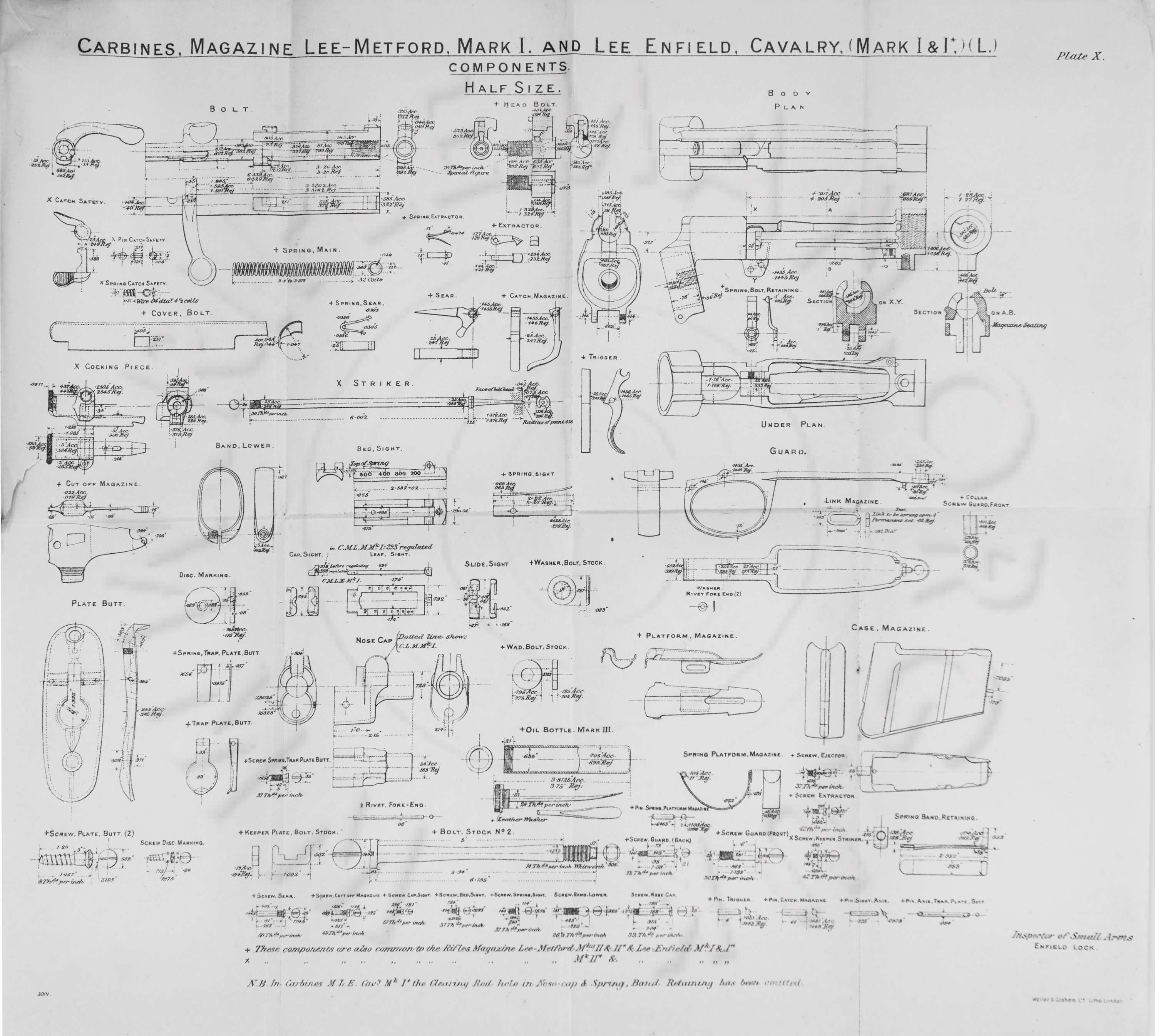

Carbines, Magazine Lee-Metford, Mark I, and Lee-Enfield, Cavalry, Marks I & I* (L_
PLATE XI

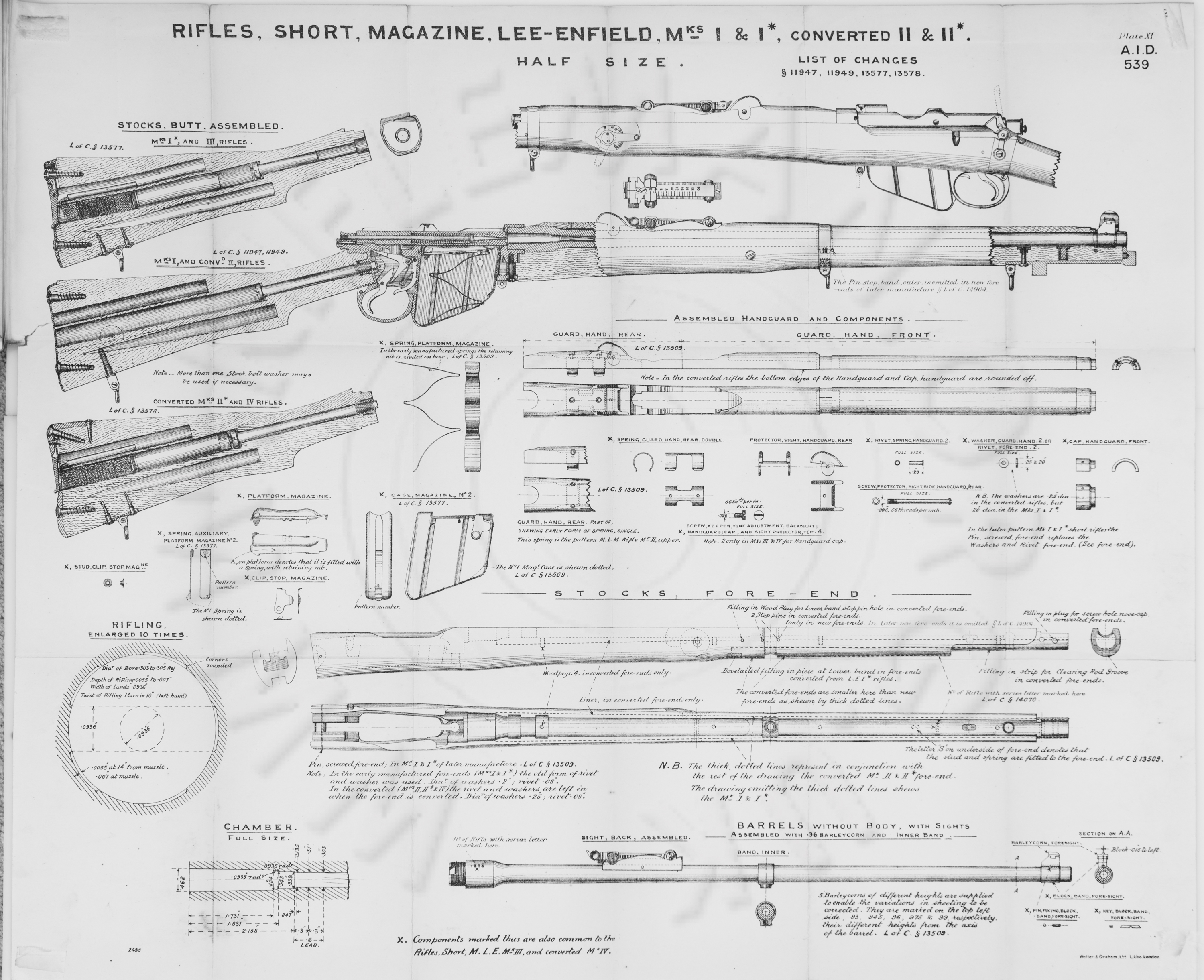

Rifles, Short, Magazine, Lee-Enfield, Mks. I and I*, converted II & II*.
PLATE XII

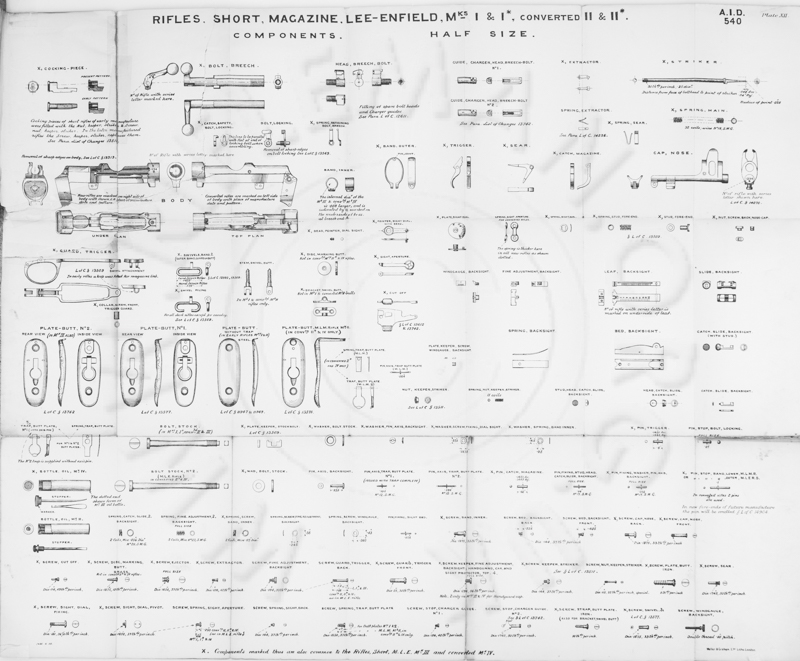

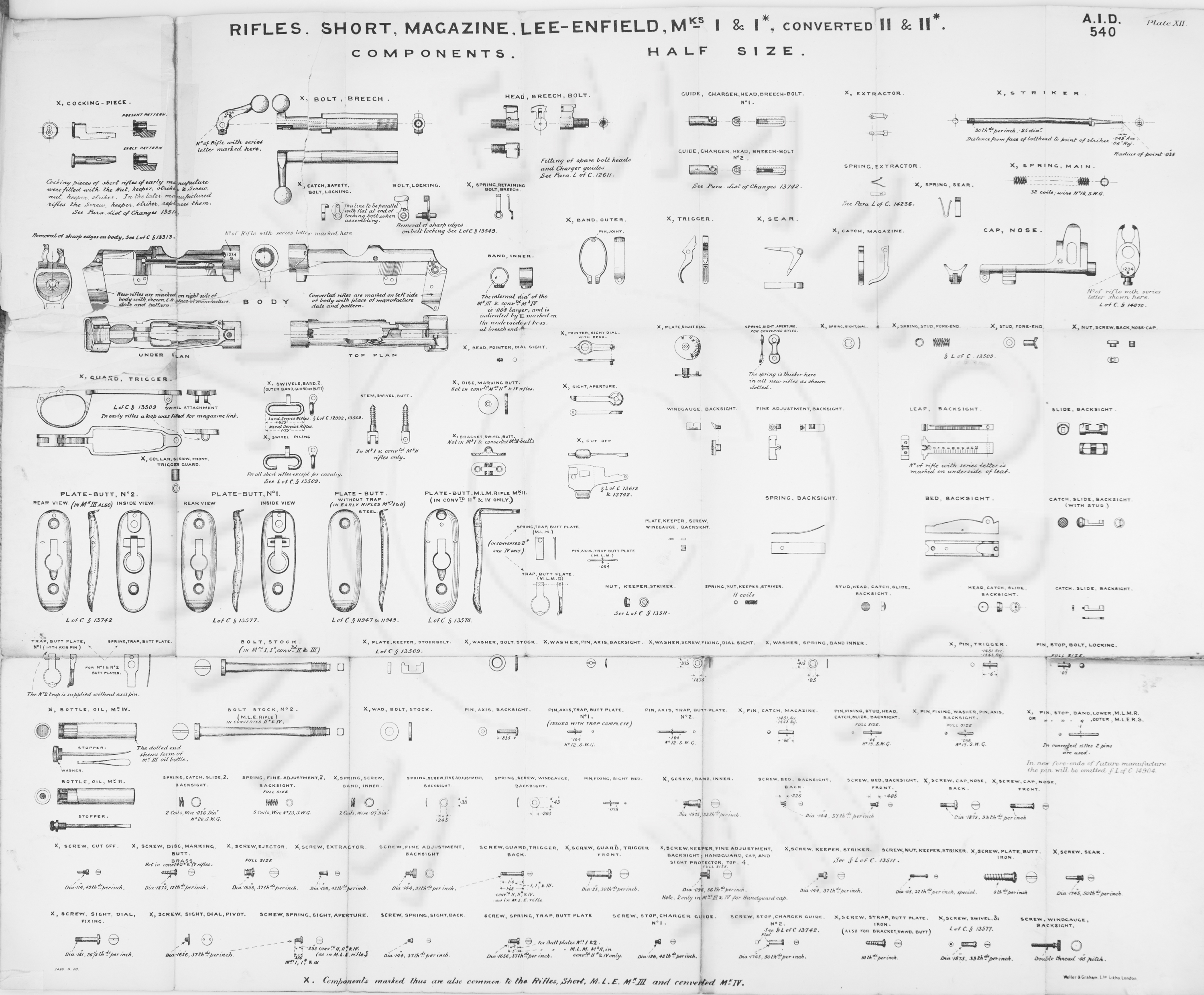

Rifles, Short, Magazine, Lee-Enfield, Mks. I and I*, converted II & II*. - Components
PLATE XIII

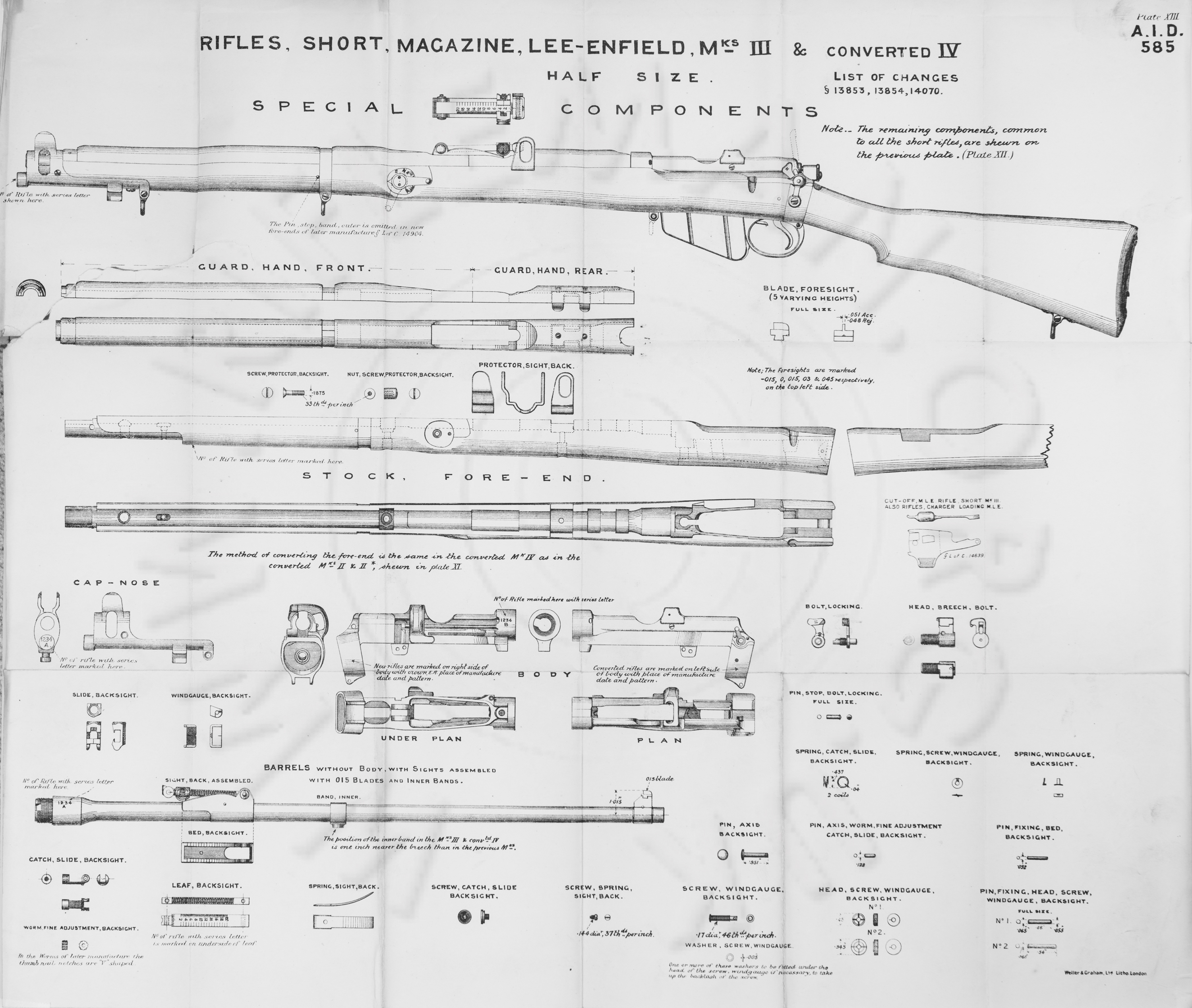

Rifles, Short, Magazine, Lee-Enfield, Mks. III, and converted IV.
