Instructions for Armourers - 1897

COMPLETE TEXT & ILLUSTRATED PLATES - (BOTTOM OF PAGE)

See also the INSTRUCTIONS for ARMOURERS 1912 and the INSTRUCTIONS for ARMOURERS 1931

The manual covers all British standard issue small-arms of the time,

as well as machine guns and general accessories.

This is in the form of a text-searchable flip-page document that may take a few moments to load.

Double tap tablet or click for full page display.

PLATES

Click or hover each image to view enlarged version with zoom

PLATE I - CARBINES, ARTILLERY, MARTINI-METFORD, Mks.II & III; MARTIN-ENFIELD Mks.I, I*, II* & III

Components

Click or hover over image to bring up hi-res file magnifier

PLATE II - CARBINES, ARTILLERY, MARTINI-METFORD, Mks. I & II; MARTIN-ENFIELD Mk.I

Special Components

Click or hover over image to bring up hi-res file magnifier

PLATE III - PISTOL, WEBLEY Marks I, II* & II (C) B.L. REVOLVER

Component Parts

Click or hover over image to bring up hi-res file magnifier

PLATE IV - RIFLE, MAGAZINE, LEE-METFORD, Mark I* (List of Changes No.6760)

Click or hover over image to bring up hi-res file magnifier

PLATE V - RIFLE, MAGAZINE, LEE-METFORD, Mark I* (List of Changes No.6760)

Components

Click or hover over image to bring up hi-res file magnifier

PLATE VI - RIFLE, MAGAZINE, LEE-METFORD, Mark II

Click or hover over image to bring up hi-res file magnifier

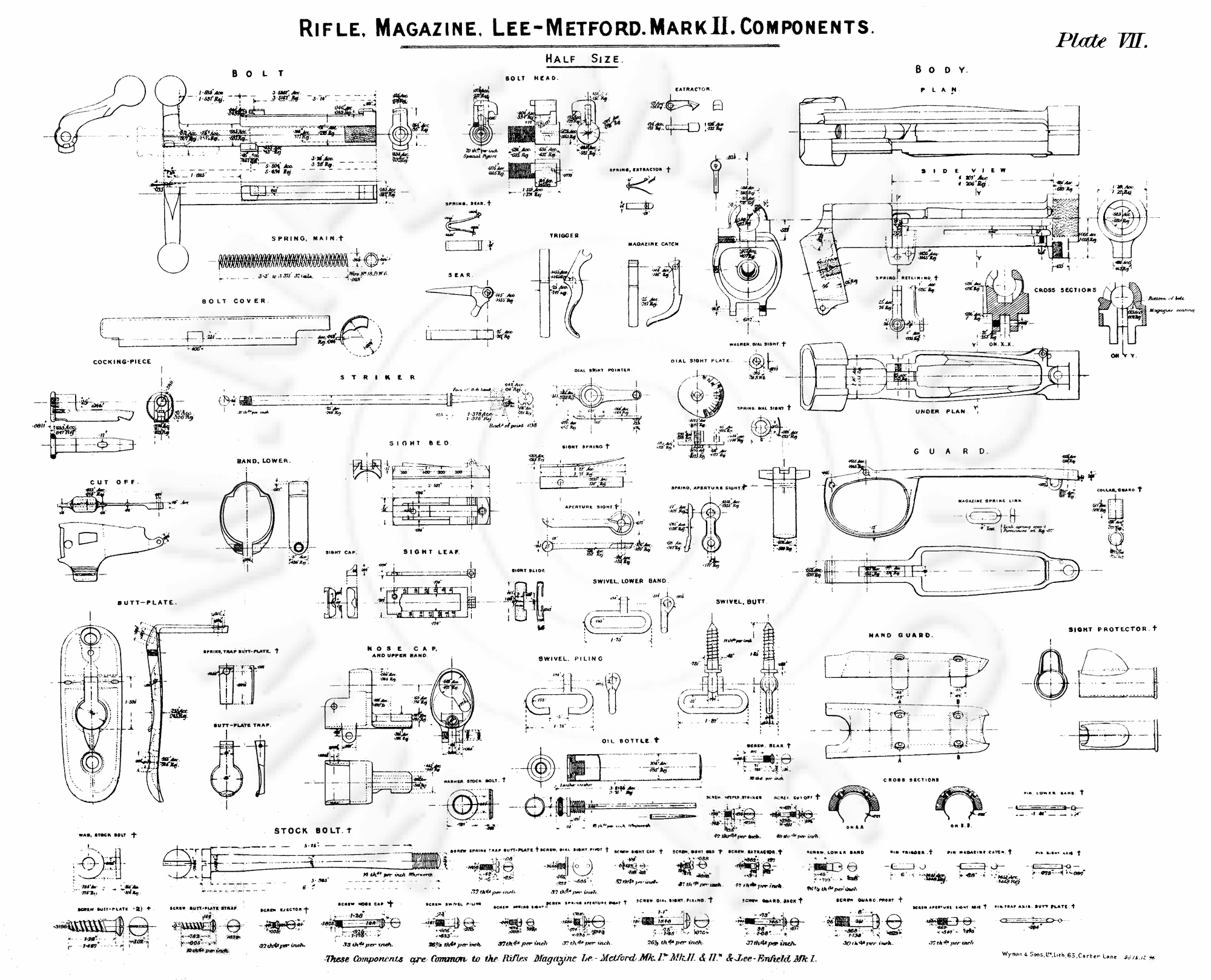

PLATE VII - RIFLE, MAGAZINE, LEE-METFORD Mark II

Components

Click or hover over image to bring up hi-res file magnifier

PLATE VIII - RIFLE, MAGAZINE, LEE-METFORD Mark II* and LEE-ENFIELD Mark I

Portion of Rifle Showing Action of Safety Catch

Click or hover over image to bring up hi-res file magnifier

PLATE IX - CARBINE, MAGAZINE, LEE-METFORD, CAVALRY, (Mark I) (L)

and CARBINE, MAGAZINE, LEE-ENFIELD, CAVALRY, (Mark I) (L)

Click or hover over image to bring up hi-res file magnifier

PLATE X - CARBINES, MAGAZINE, LEE-METFORD, and LEE-ENFIELD, CAVALRY, (Mark I) (L)

Components

Click or hover over image to bring up hi-res file magnifier
