Comparison of the bolts and bolt-heads

of .22RF converted S.M.L.E. Rifles


Please be aware that some specialist imagery may take time to load.
This site is designed for dedicated researchers, and is best viewed on desktop.


See also: ......The S.M.L.E. Rifle .. - ..Enfield Training Rifles bolt comparison... - ..Lee-Enfield Training Rifles


The bolts illustrated are from the following converted rifles.

1) Rifle, .22RF Short Mk.I

2) Rifle, .22RF Short Mk.II fitted with Hiscock-Parker magazine

3) Rifle, .22RF Pattern 1914 conversion of a No.1 Mk.I rifle with the charger-loading slide on the bolt-head.

4) Rifle, No.2 Mk.IV*

5) Rifle, .22 RFI (India) converted with 2-groove barrel.

6) Rifle, .22RF Pattern 1918 - ".303 - cum - .22" conveyor system

It will be seen that rifle (1) has the only bolt with a one-piece striker with an integral firing-pin. All the others have the most common free-floating firing pin used up to the last converted SMLE.

Hover over or click each image to bring up hi-res file and magnifier

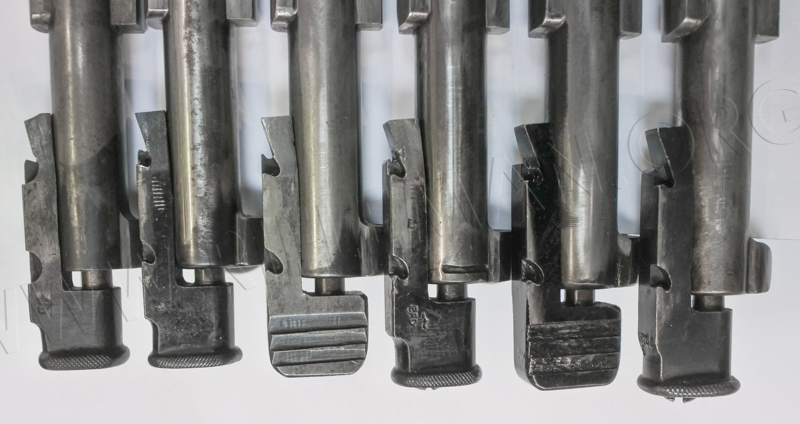

Above - left to right: Rifles 1, 2, 3, 4, 5, 6.



Above - left to right: Rifles 6, 5, 4, 3, 2, 1.



Above - left to right: Rifles 1, 2, 3, 4, 5, 6.



Above - left to right: Rifles 1, 2, 3, 4, 5, 6.



Above - left to right: Rifles 6, 5, 4, 3, 2, 1.

Above - left to right : Rifles 1, 2, 3, 4, 6, 5.

Note the various marks, described with the next image but one.

Above - left to right : Rifles 1, 2, 3, 4, 5, 6.

Note the large bore of (1) to accommodate the one-piece striker with integral firing-pin.

Above and below: it can be seen that, although stood on their sides for the photography, all bolt-heads except one have firing-pins at six-o'clock on their faces. That for the "303-cum-22" conveyor rifle (6) has a twelve-o'clock orientated firing-pin.

Above - left to right: Rifles 6, 5, 4, 3, 2, 1.

Note that .........



(6), the .22 Pattern '18 rifle, has a British "U" marked bolt-head, relating to the material specification, and is a converted .303-inch CF component, being filled then bored eccentrically. It has the large .303CF extractor to draw the 303-cum-22 conveyor.

(5), the RFI rifle, has the less common late model ".22 No.2C" bolt-head.

(4), the No.2 Mk.IV* rifle, has the more usual ".22 No.2" bolt-head .

(3), the .22 Pattern '14 rifle, has the bolt-head unusually retaining the charger-loading slide of the No.1 Mk.I rifle that is often removed during conversion.

(2), the Rifle .22RF Short MK.II, has a later ".22 No.2" bolt-head possibly retro-fitted with the Hiscock-Parker magazine.

(1), the Rifle .22RF Short MK.I, has the expected early plain bolt-head, unmarked other than by the broad arrow and military proof on the rear face.

Above - left to right : Rifles 1, 2, 3, 4, 5, 6.

Above - left to right: Rifles 1, 2, 3, 4, 5, 6.
