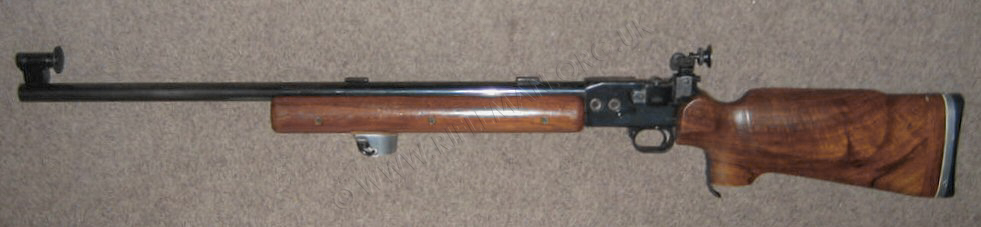

BSA International Mk.IV and ISU rifle - .22 Rimfire - Long Rifle cartridge

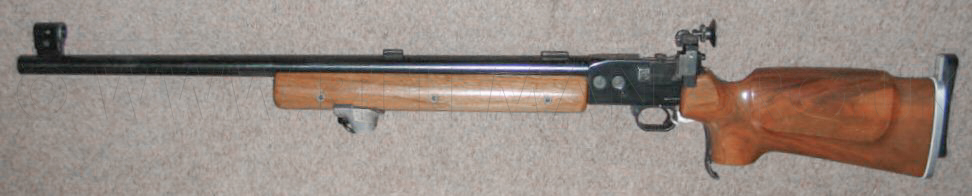

BSA International Mk.V rifle - .22 Rimfire - Long Rifle cartridge

A good International will shoot every bit as well as an Anschutz of much lesser age. A colleague was still using his Mk.III in County competition with a high degree of success in the late 1990s. The Mk.III has a fully floating barrel, but the main consideration with these is the aluminium hanger to which the fore-end is fixed. Where this is clamped into the action body below the barrel there is a risk of movement if the aluminium has been bent or damaged, or if the clamping screws have been incorrectly tightened. Replacement hangers are almost impossible to find. A good Mk.III will perform as well as any if the hanger is in perfect trim. With the later Internationals, there had developed a general feeling that they are "unforgiving" of indifferent position, hold or technique; particularly also trigger pull - but that is true of almost any firearm. However, master these aspects and you will not be disappointed. We have Mk.I to Mk.III rifles being shot, in the Post-Veteran class of our historic leagues, at a level which many modern Anschutz users would be pleased to match.
The Mk.IV ( ISU) and Mk.V rifles have the fore-end woodwork affixed to the underside of the barrel on an alloy runner. They are thus not fully-floating barrels and accuracy, whilst excellent under constant hold, can be affected by varying sling tension for instance. This is not to denegrate the rifles, which are still admirable in almost every respect; simply to warn that great care is needed to achieve the best results of which these rifles are capable - and they surely are. There was a time when Anschutz actions were being re-barrelled with BSA International barrels by top level small-bore shooters!

........

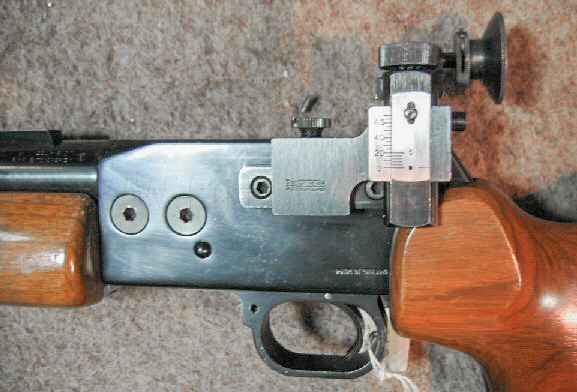

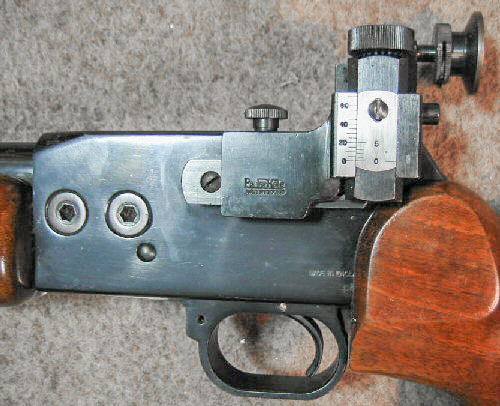

Mk.IV (ISU) action body LHS and Parker-Hale Model PH25C rearsight.................Mk.V action body LHS and Parker-Hale Model PH25E rearsight

If you were to make a one-piece stock including the fore-end and thereby obtain a fully floating barrel with the sling attachment solely on the furniture, then you would have produced a formidable rifle. BSA should perhaps have done this themselves. Also, the fact that BSA did not provide the customising accessories with their rifles, such as were on offer from other European manufacturers, was no doubt a factor in poor sales in the final years. Additionally, whilst the Marks IV and V were re-tooled, the configuration was, for all practical purposes, returned to that of the Marks I and II rather than progressing beyond the Mark III. One might suspect that this did not help very much, particularly at a time when Anschutz and their contemporaries were significantly updating their rifles aesthetically as well as technically. It could today be argued that modern fashion trends are selling rifles more than technical advances in design. One of the .22RF TARGET RIFLES designed and built by Dr. M.K. Jurek in, we believe, the late fifties has recently achieved a score of 97 ex 100 on the current 1988 NSRA target . The rifle came with a thumbhole stock and adjustable hook butt-plate from day one - as did the Finnish Lion and other equivalent models of the time. BSA produced some of the best barrels of the day, fine Martini actions and excellent triggers, but were left behind in many other respects. Very sad. An International is still the rifle to use for any timed competition, e.g. the Queen Alexandra second stage.

...............

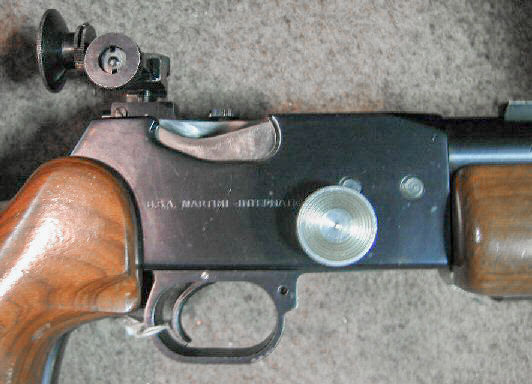

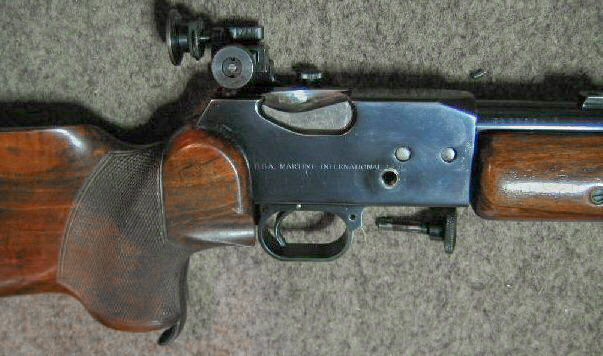

International Mk.IV(ISU) action body RHS...................................................................International Mk.V action body RHS

The Mk.IV has "ISU", just visible, added at the end of the stamping



(normally obscured by the action locating pin which has been removed),

whereas the Mk.V does not - and is effectively marked as the original Mark I rifle.

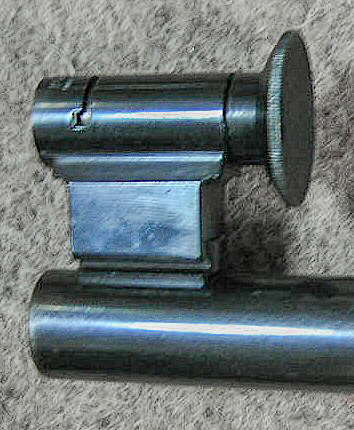

The Mark IV foresight - on the left - has the standard height barrel mounted dovetail block, and the foresight has the familiar high integral base. The tunnel still carries the traditional large diameter shielding flange.

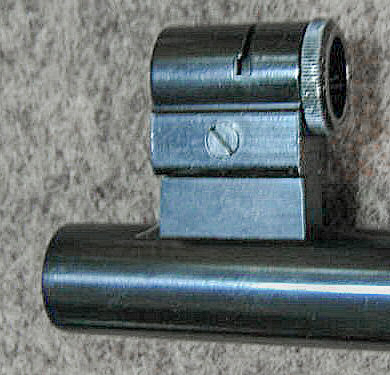

The Mark V version - to the right - maintains its height by virtue of a raise barrel block and lower , but similarly clamped, base to the foresight tunnel. The tunnel itself has a fractionally greater bore diameter and thicker wall section. The shielding flange is omitted.





what should perhaps been expanded upon in the preceding paragraphs is the fact that the problem with the Mark III, in respect of the aluminium fore-end hanger, was probably what most damaged the International's reputation. The Marks IV and V were not wholly successful attempts made toward the recovery of that reputation.

The prototype Mk.III rifles had steel fore-end hangers which were quite satisfactory in all respects except weight. These were very heavy rifles that would have been unacceptable to rifle shooters at large. The alloy replacement for the production rifles caused problems because it was easily bent or damaged if the rifle fell over from a rack, for instance. The clamping of both the hanger and barrel in the action body could then be affected. The torque applied to the clamping bolts was critical and, because the bolts were centrally placed between the steel barrel and the alloy hanger, the same clamping force was applied to dissimilar metals. The alloy, being more ductile than the steel, could eventually become more loosely held than the barrel and affect the whole setup. The reversion to the barrel only being clamped into the action body cured this, but was not sufficient of an advance to restore anything other than the status quo achieved by the very successful Mk.II.

The Mk.IV  ISU models have parallel barrels, being of approximately 0.850" diameter, whilst the Mk.V has a tapering barrel - from 1.100" dia. at the front of the receiver to 0.895" dia. at the muzzle. The former saved about 2 lbs. in weight, making that rifle eligible for the International Shooting Union (ISU) European 'standard rifle' competitions, and more suitable for 3P.

In their usual trim, both the Mk.IV and V have the  same  "FG" prefixed serial numbers, although the MK.V was also available with its heavy barrel in left-hand form, carrying an "FH" prefix.

Mark Vs are also usually seen with a polished alloy action-locking screw-pin's knurled knob rather than the blued steel one seen on prior models. Being easily changed from one rifle to another, this feature is not to be relied upon as a sole means of identification of a Mk.V rifle.

As shown earlier on this page, the marking on the right-hand side of the receiver of the Mk.IV ISU rifle has "ISU" afterthe lettering "BSA MARTINI INTERNATIONAL". (as mentioned, in most photographs the "ISU" marking disappears behind the action locking-pin knob unless the pin has been removed). The Mk.V does not carry the "ISU" marking, and in fact reverts to the marking of the original rifle (Mk.1).  Most ISU barrelled rifles did not have 'scope mounting blocks unless specially ordered or retro-fitted.

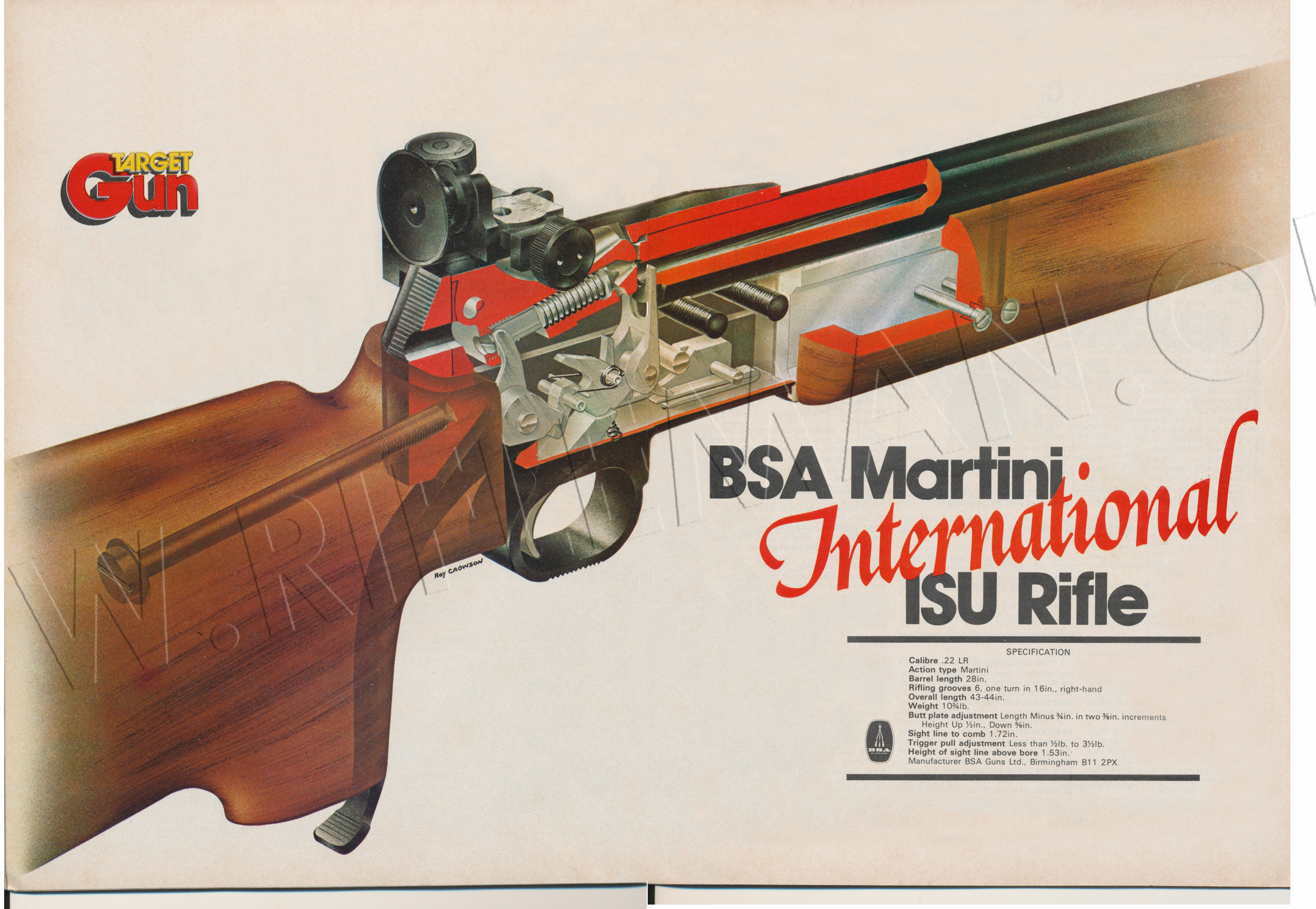

The Spring 1970 issue of the National Smallbore Rifle Association's journal, 'The Rifleman",

carried an introductory article to the new BSA International ISU model.

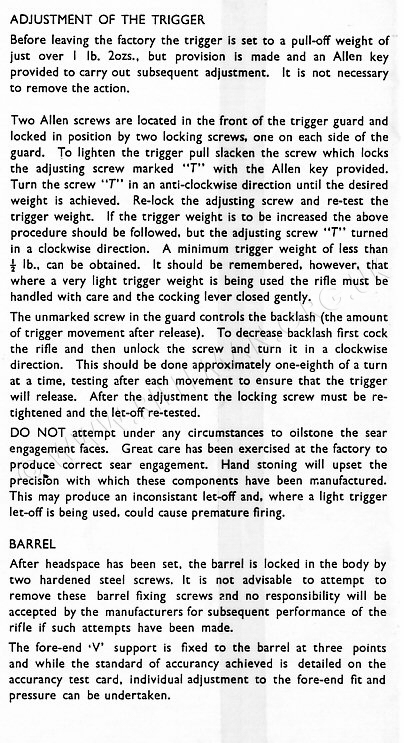

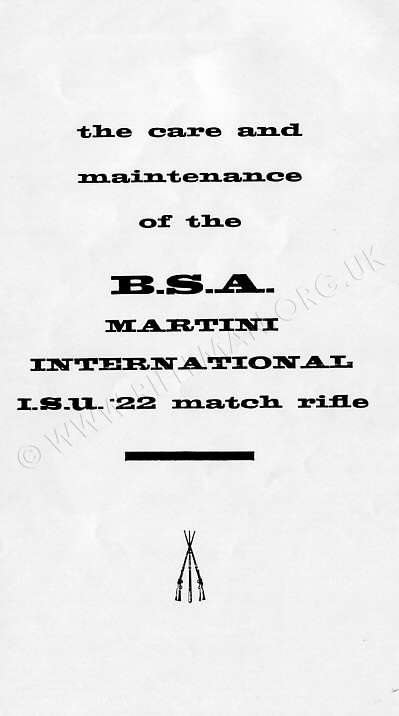

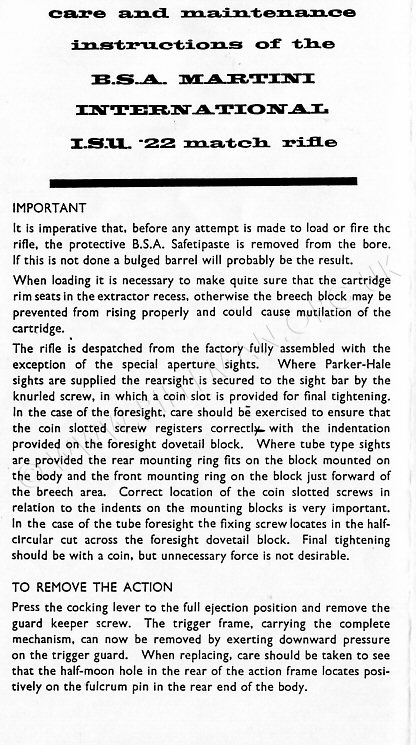

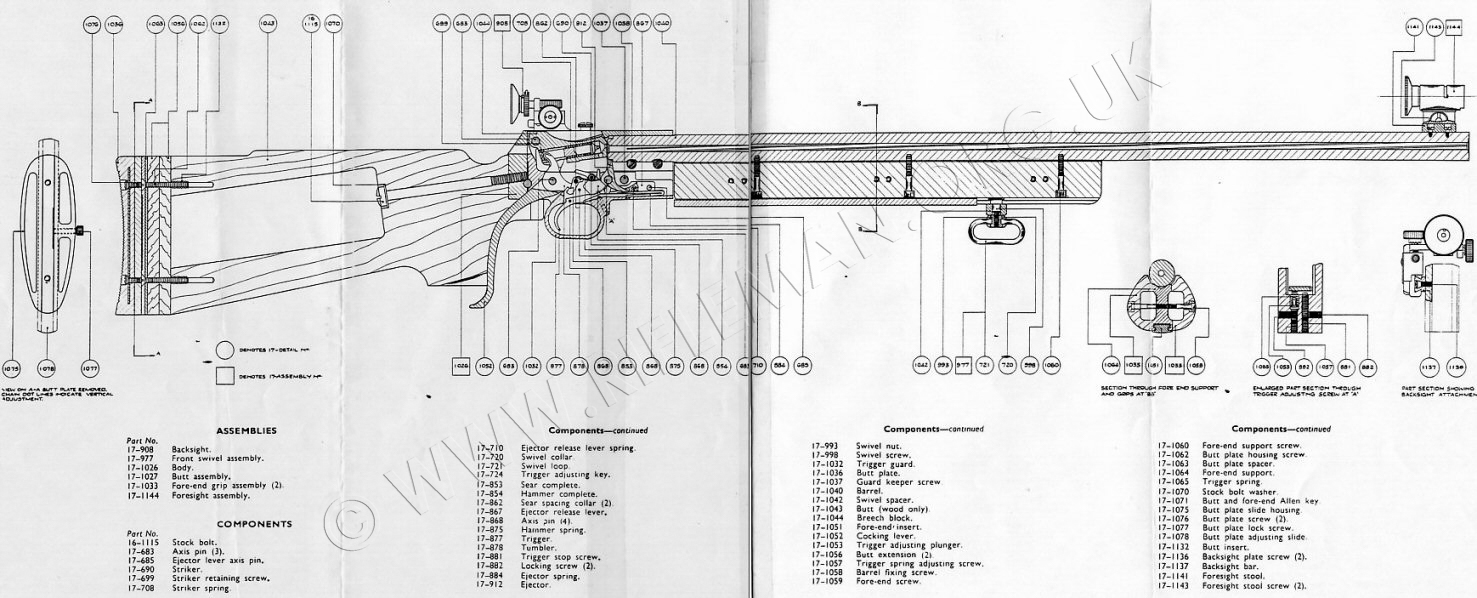

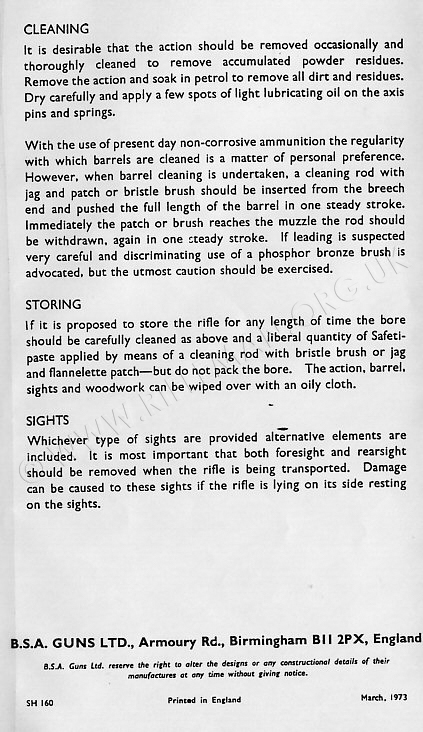

Below are images of the care and maintenance leaflets which came with the ISU and Mk. V rifles,

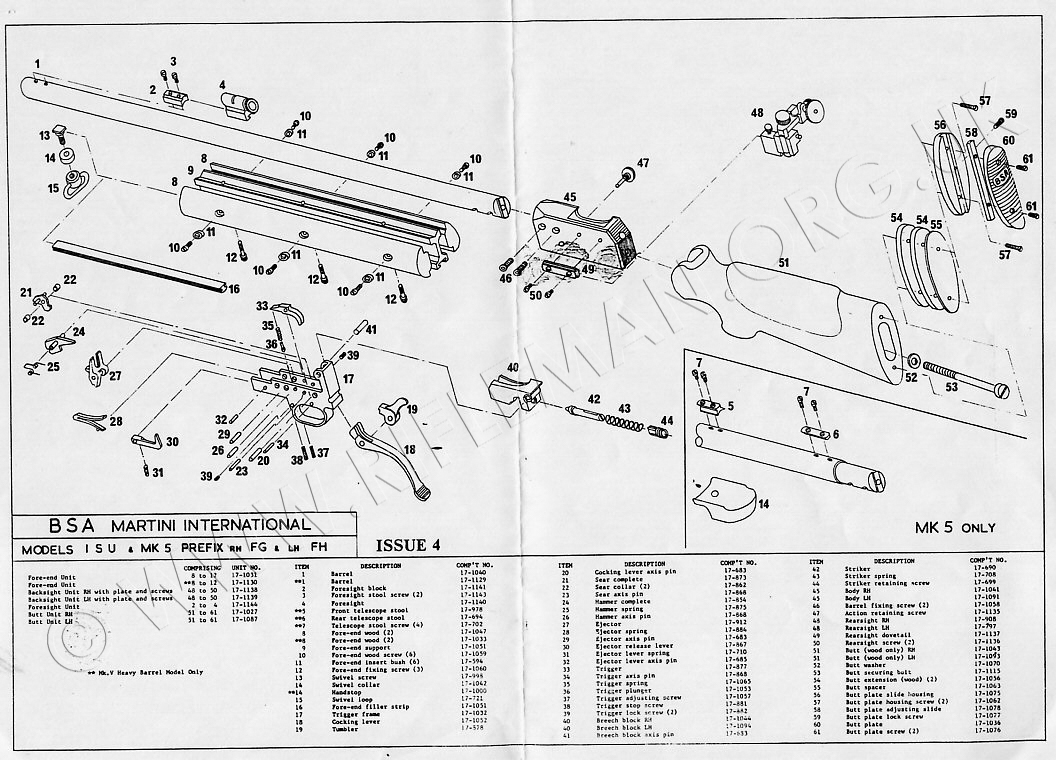

along with parts lists and indexed diagram plus an exploded parts drawing.

Suitable Reading matter: see - BSA Martini International Mk 4.- Target Gun, UK, December 1982



Return to: TOP of PAGE

---

Many Martini Internationals have found new lives in some other form.

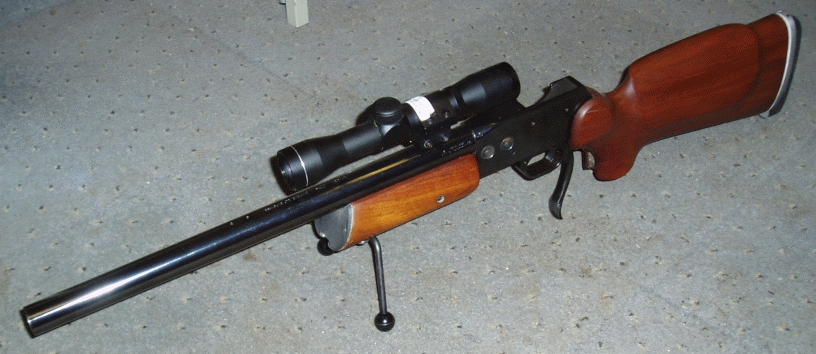

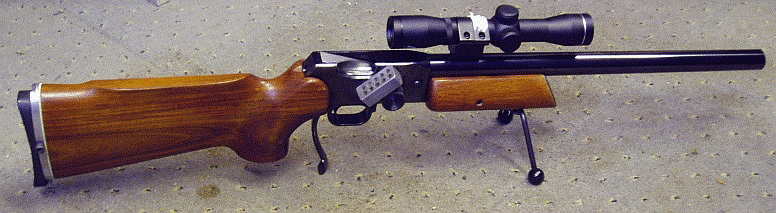

An example of such is the neatly modified MK.V, shown below, converted to Bull configuration and fitted with a telescopic sight for optic competition.

See: NSRA small-bore Benchrest competition information. (External link)



Return to: TOP of PAGE

*********************************

There follows below an OCR listing of the Parts and Trade prices (£ 0.00)

dated at the end of the production period in 1981 (poorly parsed)

*****************************

Details required when ordering spares:

(1) Please ensure you have the correct model;
quote serial number and prefix if available.
(2) Please quote part number and description.
(3) Please quote calibre where possible.
Every gun or rifle supplied by BSA Guns Limited
includes a care and maintenance leaflet with a
complete list of spare parts.
Prices and terms of trade:
(1) The prices shown are nett ex-works, packing
and delivery extra.
(2) Purchase Tax Is applicable to certain items when
supplied in the United Kingdom. These items
are marked "X" and the Tax will be charged
at the rate current at the time of delivery.
(3) Prices are subject to change without notice and
all goods will be charged at the prices ruling at
time of delivery.
(4) The minimum charge for a spares order exclud-
ing packing and carriage will be £0-25.
This trade price list has been made as comprehensive
as possible and includes models which have been out
of production for some years. The inclusion of a
part number in this list does not guarantee availa-
bility although it is the Company's policy to provide
spares wherever possible for a minimum period of
ten years from the date production ceases.
BSA Guns Limited reserve the right to alter design and
constructional details at any time without giving prior
notice.

PART NO-.DESCRIPTION- price
7- 54Butt Screw....0.02
7- 305Foresight....0.02
7- 709F/E Bush....0.07
7- 710Stock Bolt....0.20
7- 716Spring Guide....0.11
7- 720Extractor Plug....0.10
7- 723Catch Plunger....0.11
7- 726Catch Pin....0.06
7- 727Hammer Pin....0.04
7- 728Retaining Pin....0.04
7- 729Extractor Plunger ....0.10
7- 732Stop Pin....0.02
7- 735Grip Screw....0.02
7- 736F/E Screw....0.07
7- 738Catch Spring....0.04
7- 739Hammer Spring. . . .0.04
7- 740Extractor Spring ....0.02
7- 741Plunger Spring....0.02
7- 742Trigger....0.40
7- 755Bracket....0.15
7- 756Hammer....0.45 ]
7- 757Firing Pin....0.20 i
7- 758Firing Pin Spring ....0.05
7- 759Barrel Catch....0.55
7- 853Action Ass.....4.40
7- 854Body....3.00
7- 855Butt....3.38
7- 857Barrel Pin....0.07
7- 876Barrel Ass.. . . x6.00
7- 877Barrel Ass.. . . x6.00
7- 878Barrel Ass.. . . x6.00
7- 879Barrel Ass.. . . x6.00 ,i
7- 880Fore-end Ass.....2.40
7- 884Barrel. . . x4.50
7- 885Barrel. . . x4.50
7- 886Barrel. . . x4.50
7- 887Barrel. . . x4.50
7- 890Extractor....1.25
7- 892F/E Bearing. . . .0.80 '
7- 893F/E Grip....1.58 !
7-1003Action Ass.....5.40
7-1008Barrel Ass.. . . x4.60
7-1012Fore-end Ass.....1.60
7-1017Barrel. . . x4.20
7-1021Body....2.70
7-1024Top Lever....1.05 1
7-1026Butt Ass.....2.00
7-1033F/E Bearing. . . .0.50
7-1035Stock Bolt....0.11
7-1036Butt....1.79
7-1039Safety Catch....0.12
7-1040Barrel Catch....0.16 !
7-1041Extractor....0.40 t
7-1042Fore-end....0.86 ;
7-1043Guard....0.50 I
7-1048Barrel Pin....0.04 |
PART NO. DESCRIPTION £
7-1055 Thrust Plate .... 0.05
7-1056 Lever Pin .... 0.03
7-1060 F/E Screw .... 0.02
7-1064 Catch Spring .... 0.02
7-1065 Extractor Spring .... 0.03
7-1066 F/E Spring .... 0.04
7-1067 Striker Spring .... 0.03
7-1068 Trigger Spring .... 0.03
7-1069 Striker .... 0.21
7-1075 Trigger .... 0.55

PART NO.DESCRIPTION£
16-402Barrel Ass.. . . x2.95
16-404Barrel and Block. . . x2.75
16-405Cylinder. . . x2.00
16-406Guide Ass.. . . x0.20
16-407Piston Body. . . x1.00
16-417Guard. . . .0.11
16-418Barrel Latch....0.10
16-419Cocking Lever. . . x0.65
16-422Barrel Pin....0.05
16-424Cocking Lever Pin ....0.05
16-425Sear Pin. . . .0.05
16-427Backsight. . . .0.18
16-429Mainspring. . . .0.18
16-430Latch Spring....0.02
i 16-438Sealing Washer....0.02
16-447Guard Screw F....0.05
16-448Screw Washer....0.03
16-452Barrel Ass.. . . x3.80
16-\454Barrel and Block. . . x3.40
' 16-455Cylinder. . . x2.25
16-456Piston Body. . . x1.00
16-462Cocking Lever. . . x1.00
16-463Piston Rod....0.38
16-465Foresight....0.29
16-477Piston Rod....0.38
16-479Sear Spring....0.02 I]
16-480Spring Guide....0.02 I,
16-482Foresight....0.15 \\
16-484Backsight. . . .0.22
16-489Sear Adjuster....0.30
16-492Adjuster Screw....0.09
16-494Adjuster Pin....0.02
16-495Adjuster Spring....0.04
16-500Trigger Pin....0.04
16-532Link Pin....0.06
16-543B/S Screw....0.05
16-546Stock Screw....0.05
16-553Trigger Spring....0.05
16-567B/S Plunger....0.04
16-568B/S Spring. . . .0.02
16-587Catch Spring....0.04
16-589Sear Pin....0.04
, 16-590see 16-2337
16-591see 16-2336
16-593Lock Washer....0.01
16-594Stock Bush. . . .0.04
16-595Stock Nut....0.06
* 16-628Mainspring....0.20
16-632Washer Nut....0.06
16-634Dished Washer....0.08
16-637Trigger....0.65 ;
16-649B/S Bed....0.44
16-660Index Plate....0.20
16-662Index Screw....0.04
16-663Index Ball....0.01
16-664Index Spring. . . .0.02 [
1A-AAC;Crnnn^t- Ct-«^n Dft I

PART NO.DESCRIPTION £
16- 703Stock. . . x2.50
16- 708Stock Ass.. . . x2.70
16- 709F/E Washer....0.01
16- 715Back Block. . . x0.80
16- 717F/E Screw....0.05
16- 728Stock. . . x2.63
16- 730Back Block. . . x1.00
16- 731Stock Ass.. . . x2.83
16- 742F/S Protector....0.08
16- 750Backsight Ass.....0.90
16- 803Piston Ass.. . . x1.43
16- 804Piston Ass.. . . x1.43
16- 807Piston Washer....0.08
16- 808Bearing Washer....0.02
16- 809Buffer....0.02 »
16^ 815Piston Ass.. . . x1.10
16- 816Piston. . . x0.80
16- 822Washer Retainer....0.04
16- 823Washer Spacer....0.02 ^
16- 900Washer Set....0.24
16- 954Cylinder. . . x2.28
16- 969B/S Ass.....0.38
16- 972see 16-2193
16- 973Washer Unit Ass.. . . o0.18
16- 977Barrel .177. . . x2.50
16- 978B/S Bed....0.23
16- 980Cylinder. . . x2.28
16- 983Piston. . . x0.45
16-,993B/S Bar....0.08
16- 995see 16-2347
16- 999End Cap....0.05
16-1000End Cap....0.05
16-1005Guard....0.07
16-1006Spring Guide....0.08
16-1008see 16-1030
16-1010F/E Washer....0.01
16-1012Barrel Latch....0.14
16-1013Cocking Lever. . . x0.46
16-1014Trip Lever....0.04
16-1015Trip Lever....0.04
16-1016Stop Pin....0.05
16-1019B/S Bar Pin....0.02
16-1020Barrel Pin....0.02 ,
16-1021Sear Pin....0.02
16-1022Trigger Pin....0.02
' 16-1023Mainspring Pin....0.12
; 16-1026Washer Retainer....0.08
16-1027Adjusting Screw....0.02
16-1030Stock Screw F....0.02
16-1031Stock Screw R....0.02
16-1032Sear....0.20
16-1033B/S Slide....0.08
16-1034Catch Spring....0.02
16-1035Mainspring....0.20
16-1036Sear Spring....0.02
16-1037B/S Spring....0.02
16-1038B/S Slide Spring....0.02
16-1039Stocko o o x2'54
16-1040Trigger Spring....0.02
16-1042Trigger. . . o0.46

PART NO.DESCRIPTION £
16-1045Bearing Washer....0.01
16-1046Screw Washer....0.01
16-1047Screw Washer....0.01
16-1048Piston Washer....0.07
16-1049Seating Washer....0.04
16-1050Sealing Washer....0.02
16-1067Barrel .22. . . x2.50
16-1103Cocking Lever Ass.. . . x2.50
16-1104Trigger Mech. Ass.. . . x3.75
16-1108Cocking Slide. . . x1.55
16-1109Stock. . . x3.80
16-1110Breech Plug .22....0.82
16-1114Back Block. . . x2.70
16-1115Stock Bolt....0.10
, 16-1122Guide Tube. . . x0.10
16-1123Piston Washer....0.10
16-1125Connecting Link. . . x0.09
16-1126Lever Pin....0.02
16-1127Link Pin....0.02
' 16-1128Trigger Pawl....0.15
16-1130Front Support....0.07
16-1132Thumb Piece Pin....0.02
16-1134Sear....0.45
16-1136Support Spacer....0.04
16-1139Trigger. . . o0.20
16-1140Thumb Piece....0.30
16-1141Retaining Pin....0.04
16-1142Spacer Washer....0.01
16-1143Cocking Lever. . . x1.40
16-1145Adjusting Screw....0.04
16-1155Breech Plug .177....0.85
16-1163see 16-1178
16-1173see 16-1188
16-1178Barrel and Cyl. .22. . . x6.35
16-1188Barrel and Cyl. .177 . . x6.35
16-1318F/S Element....0.14
16-1336Barrel .177. . . x2.50
16-1337Barrel .177 SB. . . x2.50
16-1338Backsight Ass.....0.32
16-1339B/S Blade....0.22
16-1348Guard....0.08 |
16-1349Nut and Screw Elevating Ass. .0.10
16-1350B/S Elevating Nut. . . .0.05
o 16-1351B/S Screw Washer....0.01 !
16-1353B/S Elevating Screw ....0.05
16-1357Stock. . . x2.54 |
16-1376Barrel .22. . . x2.50 I,
16-1377Barrel .22 SB. . . x2.50
16-1384Trigger Ass.....0.42
16-1385Trigger....0.35
16-1386Sear....0.32
16-1387Sear Spring....0.05
16-1388Lock Pin....0.02
16-1493Barrel and Cyl. .177 . . x3.25
16-1494Piston Ass.. . . x0.35
16-1496Cocking Slide Ass.. . . x0.30
16-1497Barrel and Cyl. .177 . . x3.25 ;
16-1499Link Pin Ass.. . . .0.08
16-1500Washer Ass.....0.13
16-1503Buffer....0.02

PART NO.DESCRIPTION£
16-1505F/S Blade....0.04
16-1506Cotter....0.02
16-1509Guard....0.09
16-1510Mainspring Guide. . . x0.04
16-1511Link Spacer Washer....0.02
16-1512Cocking Lever. . . x0.48
16-1513Link. . . x0.02
16-1514Locator....0.04
16-1516Piston. . . x0.25
16-1517Lever Pin....0.02
16-1519Link Pin....0.02
16-1520Barrel Pin....0.04
16-1521Bridge Plate....0.05
16-1523End Cap....0.09
16-1524.Stock. . . x2.25
16-1526Washer Retainer....0.02
16-1527Safety Sear....0.20
16-1529Stock Screw....0.02
16-1530Cocking Slide. . . x0.22
16-1531Mainspring. . . o0.18
16-1534Trigger Spring. . . .0.02
16-1535Safety Spring....0.02
16-1537Stock. o . x2.25
16-1538Trigger Spring....0.03
16-1541Trigger....0.25
16-1542Transporter .177....0.32
16-1543Bearing Washer....0.01
16-1544Leather Washer....0.06
16-1545Lock Washer....0.01
16-1546Transporter Washer....0.01
' 16-1548Transporter Washer. . . .0.01
16-1552Barrel and Cyl. .22. . . x3.25
16-1553Barrel and Cyl. .22. . . x3.25
16-1556Transporter .22. . . o0.10
16-1557Transporter .22....0.32
16-1566Trigger Spring....0.03
16-1569Transporter Plunger. . . .0.04
1.6-1570Transporter Washer....0.02
16-1863Transporter Washer....0.04
16-1953Barrel and Cyl. .177 . . x7.82
16-1962Breech Plug .177....0.65
16-1973Barrel and Cyl. .22. . . x7.82
16-1975B/S Bar Ass.....0.66
16-1976Windgauge....0.09
16-1977Windgauge. . o o0.09
' 16-1982Breech Plug .22....0.65
16-1984B/S Bar Ass.....0.66
16-1986Lever Ass.. o o x3-10
16-1987Block and Trigger Ass. . . x3.80
16-1990Cocking Slide. . . x1.30
16-1991Stock Ass.. . . x4.15
16-1995Back Block. o o x2"0
16-1996B/S Bar....0.42
16-1998B/S Ball....0.02
16-2001Index Plate....0.02
16-2007Nut and Screw Elevating Ass. .0.10
16-2008Windgauge Knob. . . oO-03
16-2009Cocking Lever. . o x1'50
16-2011see 16-2007
16-2012Lock Pin....0.03

PART NO.DESCRIPTION£
16-2014F/S Protector....0.03
16-2015Sear Plunger....0.04
16-2017Link Pin....0.01
16-2018Lock Pin....0.01
16-2021F/E Screw....0.01
16-2022Element Screw....0.02
16-2025Adjustment Screw....0.03
16-2026Stop Screw....0.03
16-2027Stock Screw F....0.01 [
16-2028Windgauge Screw....0.05 ;
16-2029Sear....0.21 I
16-2031Trigger Spring....0.02 ,
16-2032B/S Spring....0.02
16-2033Plunger Spring....0.02
, 16-2036Stock. . . x3.70
16-2037Lock Washer....0.07
16-2038Lock Screw. . . .0.04
16-2040Trigger....0.39
16-2041Windgauge....0.09
16-205,1F/S Element....0.02
16-2052F/S Element....0.02
16-2053F/S Element....0.02
16-2054F/S Element....0.02
16-2114Barrel .177. . . x4.00
16-2115Barrel .177 SB. . . x4.00
16-2128Cylinder. . . x2.28
16-2138Lever Pin....0.03
16-2141Stock Ass.. . . x3.63
16-2143Recoil Pad....0.26
16-2146Pad Spacer....0.03
16-2147Retaining Washer....0.01
16-2154Barrel .22. . . x4.00
16-2155Barrel .22 SB. . . x4.00
16-2193Piston Ass.. . . x0.60
16-2194Ring Retainer....0.07
16-2195Piston Ring....0.02
16-2196Washer Set....0.13
16-2197Mainspring Guide. . . x0.05
16-2198Seating Washer....0.01
16-2215B/S Bar Ass.....0.35
- 1.6-2215AB/S Bar Ass.. . . .0.35
16-2216B/S Bar. . . .0.22
16-2217Windgauge. . . .0.10 ;
16-2218Windgauge....0.10
16-2219Windgauge Screw....0.05
16-2222Elevating Nut....0.05
16-2223Elevating Screw....0.03 j
< 16-2224B/S Spring....0.02
16-2225B/S Pin....0.02
16-2230Recoil Pad....0.08 !
16-2231Pad Pin....0.01
16-2235Barrel Ass. .177with Sights x4.09
16-2236Barrel Ass. .177SB with Sights x4.09 ;
16-2237Barrel Ass. .22 with Sights . x4.09
16-2238Barrel Ass. .22 SB with Sights x4.09
16-2239Barrel .177 withplunger andi i
spring... . x3.50
16-2240Barrel .177 SB. . . x3.50
16-2241Barrel .22. . . x3.50
16-2242Barrel .22 SB. . . x3.50

PART NO.DESCRIPTION£
16-2248F/S Ramp. . . .0.15
16-2249Ramp Screw....0.03
16-2275Sear....0.30
16-2281Piston. . . x0.88
16-2285Piston Ring....0.02
16-2286Retaining Pin....0.03
16-2287Buffer....0.03
16-2309Ball Catch....0.01
16-2310Ball Spring....0.01
16-2317Sear Spring....0.03
16-2326Barrel and Cyl. .177 . . x7.82
16-2327Barrel and Cyl .22. . . x7.82
16-2330Piston Ass.. . . x1.18
16-2331Ring Retainer....0.07
16-2333Backsight Ass.....0.85
16-2334Backsight Ass.....0.85
16-2335Backsight Ass.....0.50
16-2335ABacksight Ass.. . . .0.50
16-2336Screwed Cup....0.40
16-2337Screwed Bush. . . .0.24
16-2346F/S Element Pin....0.02
16-2347Buffer. . . .0.03
16-2376Piston Washer Set.....0.15
16-2398Trigger Mech. Ass.....0.50
PART NO.DESCRIPTION£ ;
17- 662Swivel....0.60
17- 663Keeper Screw....0.60
17- 668Stock Bolt....0.16
17- 669F/E Bush....0.17
17- 677Handstop....0.55
17- 681Stock Nut....0.22
17- 682Butt Plate....0.20
17- 683Axis Pin....0.04
17- 684Pivot Pin. . . .0.06 \
17- 685Lever Pin....0.06 ;
17- 690Striker....0.90
17- 692F/S Stool....0.50
17- 693Scope Stool F....0.50 j
17- 694Scope Stool R....0.50
17- 696Adjusting Screw....0.05
' 17- 699Striker Screw....0.25 j
17- 700F/E Screw....0.15 ]!
17- 702Stool Screw....0.04
17- 704Strip Screw....0.02
o 17- 705Spacer....0.08 \
17- 708Striker Spring....0.04
17- 710Lever Spring.....0.02
17- 720Swivel Collar....0.08
17- 721Swivel Loop....0.04
17- 722Swivel Screw....0.22
17- 724Adjusting Key....0.04
17- 725B/S Plate....0.60
17- 726Plate Screw....0.06 i
17- 727Element Box....0.50
17- 829Butt RH. . . .7.65
17- 830Butt LH....7.65
17- 853Sear....0.42
17- 854Hammer....0.75
17- 856Body....10.00
17- 862Sear Collar....0.02
17- 864Guard....5.00
17- 866Cocking Lever....1.90
17- 867Release Lever....0.7,0
17- 868Axis Pin....0.05
17- 875Hammer Spring....0.05
17- 877Trigger....1.52
17- 878Tumbler....1.00
17- 880see 17-888
17- 881Stop Screw....0.05 !
17- 882Lock Screw....0.05 |,
17- 883Trigger Spring....0.02
17- 884Ejector Spring....0.55 ,
« 17- 886Plate Screw....0.02
17- 887Bolt Washer....0.05
17- 888Adjusting Screw....0.06
17- 903Barrel....14.00 ' ,
17- 905Fore-end Ass.....3.80
17- 907Adjusting Strip....0.44
17- 908Backsight....5.60
17- 909Foresight....2.50
17- 910F/E and Strip....3.35 :|)
17- 912Ejector....1.45 ;
17- 973F/E Grip L....1.60 |
17- 974F/E Grip R....1.60 |
17- 976Body....12.00 |

PART NO.DESCRIPTION£
17- 977Swivel Ass.....0.30
17- 984Barrel....15.30
17- 987Scope Stool F....0.40
17- 988Scope Stool R....0.45
17- 991Tube Stool....0.40
17- 993Swivel Nut....0.12
17- 994F/S Stool....0.72
17- 996Barrel Screw....0.15
17- 997F/E Screw....0.02
17- 998Swivel Screw....0.10
17- 999F/E Support. . . .2.70
17-1000Handstop....0.55
17-1001Breech Block....2.95
17-1026Body....12.00
17-1027Butt Ass.....12.65
17-1030Foresight....3.00
17-1032Guard....5.00
17-1033P/E Grip Ass.....1.60
17-1036Butt Plate....0.40
17-1037Keeper Screw....0.55
17-1040Barrel....15.35
17-1042Swivel Spacer....0.08
17-1043Butt (Wood)....9.98
17-1044Breech Block. . . .3.20
17-1049Helicoil Insert....0.13
17-1051F/E Insert....0.05
; 17-1052Cocking Lever. . . .1.60
: 17-1053Trigger Plunger....0.18
i 17-1055B/S Bar....1.10
Ij 17-1056Butt Extension....0.55
, 17-1057Adjusting Screw....0.03
17-1058Barrel Screw....0.14
17-1059F/E Screw....0.01
17-1060F/E Support Screw . . . .0.07
17-1062Housing Screw. . . .0.03
17-1063Spacer....0.08
17-1064F/E Support....1.25
17-1065Trigger Spring....0.03
17-1066F/S Stool....0.62
17-1070Bolt Washer....0.01
17-1071Butt Key....0.03
' 17-1075Slide Housing....0.48
17-1076Plate Screw....0.01
17-1077Lock Screw....0.03 o'
i, 17-1078Adjusting Slide....0.35

PART NO. DESCRIPTION £
20-1090 Scope Body Ass. . . . . 1.59
20-1092 Base Ass. .... 0.90
20-1097 Dust Cap .... 0.07
20-1110 Base .... 0.36
20-1111 Clamp Nut .... 0.05
20-1112 Elevation Nut . . . . 0.10
20-1113 Windgauge Nut .... 0.10
20-1114 Clamp Screw .... 0.05
20-1115 Windgauge Screw .... 0.05
20-1116 Windgauge Spring .... 0.02

PART NO.DESCRIPTION£
22-108Bolt Ass.....2.12
22-113Magazine....0.58
22-120Barrel and Body....9.38
22-127Cocking Handle. . . .0.15
22-130Spring Guide....0.09
22-148Sear Arm....0.12
22-153Breech Bolt....1.78
22-155Buffer....0.03
22-157End Cap....0.09
22-159Magazine Catch....0.06
22-161Safety Catch....0.15
22-165Extractor....0.34
22-170Guard. . . .0.19
22-171Bolt Guide....0.22
22-172Bullet Guide....0.02 T
22-174Magazine Guide....0.02
22-183Magazine Case....0.48
22-191Magazine Spring....0.02 .
22-192Magazine Pin....0.02 ;
22-193Sear Pin....6.02
22-197Retaining Plate....0.02
22-199Magazine Platform....0.08
22-200Bottom Plate....0.02
22-204Sear Spring....0.02
22-206Trigger Spring....0.02
\ 22-207F/E Screw....0.11
;. 22-209Extractor Spring....0.02
| 22-211Mainspring....0.05
22-214Striker Spring....0.05
,, 22-216Stock....2.25
22-217Striker....0.22
22-218Sear....0.09
!, 22-221Trigger. . . .0.12
22-223Sear Sleeve....0.02
22-224Arm Sleeve....0.02
!: 24-6035Washer....0.02
40-3071Index Ball....0.01

PART NO.DESCRIPTION£
63:U82iMagazine Case....0.40
63-1183Magazine Platform....0.55
63-1184Magazine Spring....0.15
63-1185Mag. Cover Plate Ass. . . .1.25
63-1190Ejector....0.25
63-1191Trigger Mech. Ass.....3.00
63-1193Pawl....0.40
63-1195Breech Bolt....7.00
63-1198Barrel and F/S Ramp.22 Hornet .8.00
63-1202Bolt Ass.....9.00
63-1220Body....8.00
63-1224Sear Bush....0.04
63-1226Safety Catch....0.40 ;
^ 63-1227Magazine Catch....0.18 |
" 63-1229Circllp Extractor....0.15 :
63-1230Extractor....1.50
, 63-1232Trigger Guard....1.75 ^
63-1233Cocking Piece Housing . . .1.65 ';
63-1236Trigger Mech. Housing . . .0.50
63-1237Ejector....0.30 i,
63-1240Cocking Piece....1.75 ^
63-1241Safety Catch Plunger . . .0.05 ;|
63-1243Hinge Plate....0.48 '
63-1248Axis Pin....0.03
63-1249Retaining Pin....0.01 o'
63-1256Striker....0.40 j
63-1257Striker Spring....0.10 |'
63-1263Body Screw F....0.06 |
63-1264Body Screw R. . . .0.07
63-1265Guard Screw....0.05 j
63-1267Safety Catch Spring....0.05 |
63-1275Ejector Spring....0.02 |f
63-1276Catch Pin....0.03 r,
63-1277Trip Lever....0.50 |
63-1279Trip Lever Axis Pin. . . .0.05 i;;
63-1280Adjusting Screw. . . .0.10 :
63-1283Trip Lever Spring....0.10
63-1284Pawl Spring....0.10
63-1285Adjusting Spring. . . .0.05 |
63-1286Trigger....1.25
63-1287Adjusting Screw....0.05
63-1289Ejector Spring....0.05
63-1290Butt Plate....0.17
63-1291Pad Spacer....0.05 .
63-1292Pad Spacer....0.07 ;,:
63-1293Grip Cap....0.10 ]
" 63-1294Grip Cap Spacer....0.04 |
63-1295Grip Cap Spacer....0.04 il
63-1296Housing Screw....0.02 !
63-1297Sear....0.50
63-1298Trigger Mech. Ass.. . . .3.00
63-1304Barrel and F/S Ramp.222 R . .8.00
63-1305Mag. Cover Plate Ass. . . .1.25
63-1312Body....8.00
63-1315Breech Bolt....7.00
63-1316Magazine Case....0.40
63-1318Magazine Platform....0.55 \
63-1320Magazine Spring....0.15 '
63-1327Bolt Ass.....9.00 ;;

PART NO.DESCRIPTION£.
63-1333Stock HC....11.50
63-1336Striker....0.40
63-1340Swivel....0.12
63-1341Butt Screw....0.02
63-1342Grip Screw....0.02
63-1343F/S Protector....0.05
63-1344Trigger Guard Washer . . .0.03
63-1345Sear Adjusting Screw . . .0.10
63-1346Hinge Pin....0.04
63-1355Grip Cap....0.10
63-1356Grip Cap Spacer....0.04
63-1357Grip Cap Spacer....0.04
63-1367Stock C....11.50
63-1402Bolt Ass.....9.00
63-1406Mag. Plate Ass.....1.25 M
63-1413Body....8.00 |
63-1415Breech Bolt.....7.00 1
63-1417Magazine Case....0.40 o
63-1418Ejector....0.25 |
63-1419Extractor....1.50
63-1421Cocking Piece....1.75
63-1422Magazine Platform....0.55
63-1424Hinge Plate....0.48
63-1429Striker Spring....0.10
63-1430Magazine Spring....0.15
; 63-1432Stock HC....11.50
| 63-1436Stock C....11.50
'i 63-1440Cover Plate....0.60
63-1446Barrel and F/S Ramp7x57 . .8.00
63-1556Barrel and F/S Ramp.308 . .8.00
63-1557Bolt Ass.....9.00
63-1562Breech Bolt. . . .7.00
63-1602Bolt Ass.....9.00
' 63-1606Mag. Plate Ass.....1.25
; 63-1612Body....8.00
63-1614Breech Bolt....7.00
63-1615Barrel and F/S Ramp30/06 . .8.00
I; 63-1617Magazine Case....0.40
: 63-1618Ejector....0.25
63-1621Cocking Piece....1.75
63-1622Bottom Plate....0.60
\ 63-1623Magazine Platform....0.55
: 63-1625Bottom Plate....0.60
;: 63-1628Magazine Spring....0.15 J
I 63-1629Striker Spring....0.10 {
I'E 63-1632Stock HC....11.50
|! 63-1636Stock C....11.50 )
ji 63-1731Body....8.00 o
h 63-1733Recoil Pad Ass.....0.40
ii 63-1734Pistol Grip Cap....0.10
II 63-1745Extractor....0.60
I- 63-1748Safety Catch Roller....0.10
''o 63-1770Swivel Ass.. . ...0.12
; 63-1788Recoil Pad Spacer....0.05
? 63-1790Grip Cap Spacer....0.04
i 63-1885Pawl Spring....0.10
'f 63-1946Barrel and F/S Ramp.458 . .12.00
63-1960Magazine Case....0.50
63-1970Stock Ass. .458....14.00
o; 63-1982Body....8.00
PART NO.DESCRIPTION£
63-1985Backsight .458 ....0.50
63-1988Magazine Case ....0.50
63-1990Pistol Grip Cap ....0.10
63-1993Ejector ....0.08
63-1994Extractor ....0.60
63-1999Trigger Mech. Housing . . .0.50
63-2005Magazine Case ....0.50
63-2006Recoil Pad Ass. ....0.40
63-2010Magazine Platform . . . .0.55
63-2011Extractor Plunger ....0.04
63-2012Cocking Indicator ....0.02
63-2017Pad Screw ....0.01
63-2020Extractor Spring ....0.02
63-2021Indicator Spring ....0.02
g 63-2085B/S Ass. 3L ....2.50
| 63-2086B/S Ass. 3L ....2.50
1 63-2087B/S Ass. 3L ....2.50
- 63-2109B/S Axis Pin ....0.04 ,
| 63-2114B/S Spring . . . .0.10 '
63-2170B/S Ass. Tangent ....3.00
63-2171B/S Ass. Tangent ....3.00 ',
63-2174B/S Ass. Tangent . . . .3.00 '
63-2180B/S Bar Ass. Tangent . . .2.00
63-2181B/S Bar Ass. Tangent . . .2.00 ';
63-2184B/S Bar Ass. Tangent . . .2.00
63-2201B/S Bed ....1.00
63-2202B/S Bed ....1.00
63-2205B/S Dovetail Pad ....0.25
63-2232Backsight Ass. ....1.00
63-2237Mag. Plate Ass. ....1.25
63-2245Hinge Plate ....0.48
63-2246Body ....8.00 , ;
63-2249B/S Base ....0.32 'f\
63-2250Extractor ....0,60
63-2251B/S Element ....0.02 ;
63-2252B/S Leaf ....0.50 o:;
63-2253B/S Pin ....0.02 i
63-2254Hinge Pin ....0.04
63-2255Bottom Plate ....0.60
63-2256Magazine Platform ....0.55
63-2258Magazine Case ....0.40
63-2260B/S Screw ....0.02
. 63-2264B/S Spring ....0.02
| 63-2265Mag. Spring ....0.15
f 63-2276Safety Catch ....0.50
63-2288Stock Ass. ....11.50
j 63-2296Body ....8.00 ]
o 63-2306Mag. Platform ....0.55 i
63-2381Mag. Plate Ass. ....1.25 ?
63-2382Stock Ass. ....11.50 '
63-2392Bottom Plate ....0.60
63-2393Mag. Platform . . . .0.55
63-2432Bolt Ass. .458 ....9.00
63-2502Barrel and Ramp .222 . . .9.50
63-2512Barrel and Ramp .243 . . .9.50
63-2532Barrel and Ramp .308 . . .9.50
63-2572Barrel and Ramp .270 . . .9.50
63-2582Barrel and Ramp 30/06 . . .9.50
63-3025Mag. Case Complete ....0.40
63-3033Lock Pin ....0.05 i

PART NO.DESCRIPTION£
63-3034Sear . . . o0.50
63-3035Sear Spring ....0.05
63-3037C/P Housing . . . .1.65
63-3047Cocking Piece . . . .1.75
63-3048Cocking Piece ....1.75
63-3112Bolt Ass. ....10.00
63-3113Bolt Ass. ....10.00
63-3125Magazine Case Complete . . .0.40
63-3129Trigger Housing ....0.50
63-3130Trigger Housing Ass. . . .3.50
63-3131Trigger Mechanism ....1.30
63-3132Safety Catch ....0.60
63-3135Filler Screw ....0.03
63-3136Trigger ....1.25
63-3137C/P Housing ....1.65 o
63-3142Body . . o o8.00
63-3143Body ....8.00
63-3145Bolt ....7.50 ,
63-3146Bolt ....7.50 {
63-3152Bolt ....7.50
I 63-3155Body ....8.00
! 63-3185Bolt Ass. ....10.00
63-3190Guard Ass. ....2.05
63-3197Guard ....1.75
63-3400Stock Ass. . . . .11.50
; 63-3403Stock Ass. . . o o11.50
j 63-3772Magazine Spring ....0.15
63-3773Magazine Spring . . . .0.15
\ 63-3786Plate Buffer ....0.03
63-3903Body and Barrel .243 . . .17.50
63-3907Body and Barrel .308 . . .17.50
63-3915Body and Barrel .222 . . .17.50
63-3923Body and Barrel .270 . . o17.50
63-3925Body and Barrel 30/06 . . .17.50
63-3927Body and Barrel 7mm . . . o17.50
63-3953Body and Barrel .243 HB . . .17.50
63-3954Body and Barrel .222 HB . . .17.50
': 63-3961Bolt Ass. ....10.00
63-3962Bolt Ass. . . o o10.00
I 63-3964Bolt Ass. ....10.00
; 63-3965Bolt Ass. ....10.00
|; 63-3985Hinge Plate ....0.40
63-3990Mag. Cover Ass. ....1.25
63-3991Mag. Cover ....0.60
63-3995Hinge Piece ....0.40
63-4000Stock Ass. ....11.50
63-4005Stock Ass. ....11.50
63-4010Stock Ass. ....11.50
63-4018Body ....8.00
63-4019Body ....8.00
63-4021Body ....8.00
63-4022Body ....8.00
63-4030Trigger Plate R ....0.55
63-4031Trigger Plate L ....0.55
63-4032Rivet .....0.02
63-4033Guard Screw ....0.03
63-4125Magazine Case ....0.42
63-4126Magazine Filler ....0.03
63-4127Trigger Mech. Ass. ....3.50
I 63-4129Housing Plate ....0.50

PART NO.DESCRIPTION£
63-4145Bolt....7.50
63-4146Bolt....7.50
63-4152Bolt....7.50
63-4153Bolt....7.50
63-4173Mag. Plate Ass.....1.25
63-4174Mag. Plate Ass.....1.25
63-4175Bottom Plate....0.60
63-4176Bottom Plate....0.60
63-4181Striker Ass.....2.25
63-4210Striker Spring....0.10

PART NO.DESCRIPTION£
69- 181Guard Screw....0.09
69- 251Catch Spring....0.09
69- 329Lock Nut....0.02
69- 331B/S Pin. . . .0.06
69- 334B/S Screw....0.08
69- 338B/S Spring....0.02
69- 343B/S Tangent Bar. . . .1.75
69- 389B/S Plate....0.18
69- 449B/S Ratchet....0.04
69- 450Backsight....0.38
69- 464Foresight....0.30
69- 604Locking Sleeve Ass.. . . .1.90
69- 609Sling Eye....0.25
69- 615Barrel and Body....11.00
69- 616Barrel and Ramp....7.00 o
69- 620Magazine....0.74
69- 622Magazine Case....0.26
69- 626B/S Tangent Ass.. . . .2.80
69- 630Stock Ass.....5.00 ^
69- 641see 69-862
69- 642Breech Bolt....2.60
69- 645Magazine Catch....0.10
\ 69- 646see 69-650
69- 647Bottom Plate....0.02
69- 649Extractor. . . o0.26
i; 69- 650Extractor Circlip....0.05
69- 660Trigger Pin....0.02
69- 661Safety Lever....0.05
69- 662Magazine Platform. . . .0.05
69- 664Striker. , . .0.02
69- 665Cocking Pin....0.04
69- 666Striker Spring Pin....0.02
69- 675Sear Screw....0.06
69- 676Stock Screw....0.11
69- 677Frame Screw....0.06
69- 681Striker Spring....0.04
69- 682see 69-819
69- 684Extractor Support. . . .0.12
69- 685Stock (Wood)....5.00
69- 691Barrel Block....0.30
69- 692Magazine Spring. . . o0.11
69- 715Washer....0.02
69- 726B/S Bed....0.70
69- 732F/S Screw....0.04
69- 762Platform Feed....1.00
69- 770Barrel....8.00
69- 773Platform Housing....0.28
69- 776Platform Pin....0.02
69- 778Platform....0.50
69- 779Plunger....0.12
69- 780Plunger Spring....0.02
69- 782F/E Screw....0.12
69- 783Stock....5.00
69- 792F/S Element. . . o0.14
69- 798F/S Element....0.14
' 69- 811Pawl Bush....0.09
: 69- 813Pawl....0.45
| 69- 814Safety Stud....0.25
i 69- 815Sear....0.55
69- 816Trieeer....0.58

PART NO.DESCRIPTION£
69- 817Adjusting Screw ....0.0.4
69- 818Pawl Spring ....0.02
69- 819Trigger Spring ....0.02
69- 823Trigger Ass. ....0.62
69- 825Trigger Housing Ass. . . .3.75
69- 826Striker ....0.65
69- 828Safety Spring ....0.02
69- 843Bolt Ass. ....4.00
69- 844Bolt Body . . . .3.50
69- 845Housing . . . .1.85
69- 862Body ....4.10
69-1037F/S Element ....0.25
69-1038F/S Element . . . .0.25
69-1039F/S Element . . . .0.25
85- 70Trigger Spring ....0.03
85- 87Bolt Washer ....0.05

PART NO.DESCRIPTION£
HS-716Sight Ramp. . . o0.20
HS-720Sear....0.40
HS-721Striker....0.60
HS-723Guard....0.40
HS-724Lock R....0.40
HS-725Lock L....0.40
HS-727Catch....0.40
HS-728Lock Button....0.20
HS-732Stop Roller....0.20
HS-742Roller Pin....0.11
HS-742Sear Pin....0.11
HS-746Guard Screw. . . .0.10
HS-747Handle Screw....0.10
HS-753Striker Spring....0.20
HS-754Sear Spring....0.11 ,
HS-756Lock Spring. . . .0.11
HS-803-6Rear Cap....0.80
HS-806Oil Ring....0.11
HS-809Cylinder Cover. . . .0.80
HS-818Frame....1.20 o
HS-822Trigger....0.40
; HS-830Cap Lock....0.60
i HS-831Spring Sleeve....0.20
HS-833Frame Cushion....0.17
HS-835Trigger Roller....0.20
[ HS-836Pivot Screw....0.40
I HS-837Pivot Nut....0.17
' HS-838Cocking Pin....0.20
| HS-839Catch Pin. . . .0.11
HS-841Trigger Pin....0.11
HS-849Cover Lock....0.11
HS-850Piston Ring....0.20
HS-851Mainspring....1.00
HS-852Cap Spring. . . .0.20
HS-858Trigger Spring. . . .0.17
HS-891Piston....2.00
HS-892Cocking Lever Ass. ....0.80
HS-893Handle....3.00
HS-894Backsight....0.60
HS-895Shutter....0.40

PART NO.DESCRIPTION£
602000Front Sight. . . .0.15
604010Top Lever 100....0.90
604020Top Lever 200....1.10
604030Top Lever 300....1.20
604040Top Lever 400....1.35
604001Lever Spring. . . .0.75
604002Lever Shaft. . . .0.60
604003Lever Retainer. . . .0.50
604004Lever Screw. . . .0.10
605110Locking Piece 100. . . .0.40
605120Locking Piece 200. . . .2.10
605130Locking Piece 300. . . .2.10
605140Locking Piece 400. . . .2.10
605300Extractor. . . .1.25
605301Extractor Screw....0.07
605302Extractor Kicker. . . .0.65
605303Kicker Screw. . . o0.07
605304Guide Pin. . . .0.15
605324Ejector Pin....0.30 ;
« 605325Ejector Kicker....0.65
605353Ejector Extractor L . . . .0.50
605359Ejector Extractor R . . . .0.50
606130Hammer L. . . .1.25 ;
606131Sear L....0.35 |
606132Spring L. . . .0.15 i
606133Spring Screw L....0.05
606190Hammer R. . . .1.25
606191Sear R....0.35
606192Spring R. . . .0.15
606193Spring Screw R....0.05
606300Sear Pin....0.07
606400Hammer Pin. . . .0.07
606500Hammer Spring....1.00 ;
606730Cocking Lever L. . . .0.80 ;
606735Ejector Lever L. . . .0.90 i
606790Cocking Lever R....0.80
606795Ejector Lever R. . . .0.90
606800Lever Screw. . . .0.11
606801Screw Stopper....0.10
606900Lever Spring....0.17
606901Lever Screw....0.07
608100Floor Plate. . . .0.80
608101Plate Screw....0.17
609000Trigger Ass.....3.25
609001Trigger....1.30
609002Trigger Pin....0.05
609003Snap Ring. . . .0.05
609004Connector. . . .1.30
609005Connector Pin....0.05
609006Connector Spring....0.05
609007Spring Plunger....0.05
609009Trigger Spring....0.05
609010Retaining Screw.....0.07
609011Guide Plate....0.30
609012Selector Button....0.40
609013Spring Plunger....0.05
609014Selector Spring....0.05
609015Spring Screw....0.05
609016Guide Pin....0.05
609017Pin Washer....0.05

PART NO.DESCRIPTION£
609018Spring Washer....0.05
609400Trigger Plate....1.70
609401Plate Screw. . . .0.20
609500Safety Button....0.65
609501Button Pin....0.05
609700Safety Lever. . . .0.85
609701Lever Pin....0.05
609702Safety Connector....0.05
i| 609703Connector Pin....0.05
609704Snap Ring....0.05
; 609800Trigger Lock. . . .0.20
609801Button Spring....0.05
609802Retaining Screw....0.07
610001Guard Screw....0.07
610010Trigger Guard 100. . . .0.80 i
610020Trigger Guard 100. . . .1.30
610030Trigger Guard 300. . . .1.80
610040Trigger Guard 400. . . .1.80
611010F/E Wood 100....2.90
611020F/E Wood 200. . . .4.15 '
„ 611030F/E Wood 300....12.30
'I 611040F/E Wood 400....20.60
i 611100F/E Iron....3.00
611101F/E Iron Screw....0.07
| 611103F/E Nut....0.25
611150F/E Iron (Ejector)....3.10
611200F/E Lock Piece....0.65
611201F/E Iron Lock Screw ....0.10
611202F/E Push Rod....0.30
611203F/E Rod Guide....0.75
611204F/E Rod Spring....0.07
611205F/E Guide Screw....0.07
611206F/E Screw Washer....0.07
612135Ejector Hammer L. . . .0.40
612195Ejector Hammer R. . . .0.40
612400Ejector Spring....0.25
612500Ejector Sear Pin....0.25
612650Spring Retainer....0.40
616001Stock Bolt....0.15
616002Bolt Nut....0.07
616003Bolt Washer....0.04
616004Spring Washer....0.04
616005Receiver Shank....0.55
616006Tang Screw. . . .0.10
616010Stock 100....8.00
616020Stock 200. . . .10.50
616030Stock 300....31.00
616040Stock 400....52.00
616100Butt Plate....0.50
616101Plate Screw....0.07
616102Plate Spacer....0.15
616201Grip Cap....0.40
616202Cap Screw. . . .0.25
616203Cap Spacer....0.10

PART NO.DESCRIPTION£
702000Front Sight. . . .0.15
704001Lever Spring. . . .0.70
704002Lever Screw....0.15
704003Lever Shaft....0.60
704004Spring Screw....0.07
704005Lock Screw....0.07
704050Top Lever 500....1.30
704060Top Lever 600....1.40
704070Top Lever 700....1.50
704080Top Lever 800....1.60
705000Locking Piece. . . .0.35
705001Piece Retainer....0.07
705002Retainer Spring....0.07
705301Ejector Extractor L . . . .2.10
, 705302Ejector Extractor R . . . .2.10
705303Spring Guide....0.15
705304Ejector Spring. . . .0.20
706004Hammer Pin....0.07
706005Retaining Pin....0.07
o 706030Hammer L....1.20
706031Hammer Spring L. . . .0.55
706032Sear L....0.45
706090Hammer R. . . .1.20 ;
706091Hammer Spring R....0.55
706092Sear R....0.45
706093Sear Spring. . . .0.15
706094Retaining Screw....0.07
706101Firing Pin 0....0.15
706102Firing Pin U....0.20
706103Retractor Spring. . . .0.15
706104Pin Retainer. . . .0.10
706601Cocking Piece L....0.50
706602Cocking Piece R....0.50
706603Piece Pin....0.07
706604Cocking Rod....0.45 !
706605Cocking Piece Spring ...0.10
708100Pivot....0.65
708101Pivot Screw....0.07 ':
709000Trigger Ass.....3.30
709001Trigger. . . .1.30
709002Trigger Pin....0.07
709004Connector....1.30
709005Connector Pin....0.07
709006Connector Spring....0.07
709007Spring Plunger....0.07
709009Trigger Spring. . . .0.07
709010Retaining Screw....0.07
709011Guide Plate....0.30
709012Selector Button....0.30
709013Selector Plunger....0.40
709014Selector Spring....0.07
709015Spring Screw....0.07
709016Plate Pin....0.07
709017Pin Washer....0.07
709018Snap Ring....0.07
709019Trigger Screw....0.07
709020Trigger Nut....0.10
709300Trigger Plate. . . .2.50
709301Plate Screw....0.20
709302Lock Screw....0.07

' PART NO.DESCRIPTION£
709500Safety Button....0.65
709501Button Spring....0.07
709502Button Screw....0.07
709503Button Pin....0.07
709504Trigger Lock. . . .0.20
709505Safety Adj. Screw. . . .0.10
709506Lock Nut. . . .0.10
710050Trigger Guard 500. . . .0.70
i 710060Trigger Guard 600. . . .1.20
710070Trigger Guard 700. . . .1.70
710080Trigger Guard 800. . . .1.80
711001F/E Iron Screw....0.40
711002F/E Nut....0.25
711050F/E Wood 500....2.50
711060F/E Wood 600....5.50
711070F/E Wood 700....11.50
711080F/E Wood 800....18.00
711100F/E Iron....7.00
711101F/E Lever....0.70
711102-Lever Pin....0.07 '
711103Lever Spring. . . .0.07
i 711104Retaining Screw....0.07
711401Lever Screw....0.25
711402Lever Plunger....0.11
711403Lever Spring. . . .0.10
711430Cocking Lever L....0.40
I 711490Cocking Lever R....0.40
716001Stock Bolt. . . .0.15
716002Bolt Nut....0.07
716003Bolt Washer....0.07
716004Spring Washer....0.07
716005Receiver Shank. . . .0.55
716006Tang Screw. . . .0.10
716050Stock 500....9.00
716060Stock 600. . . .16.00
716070Stock 700. . . .25.00
716080Stock 800. . . .41.20
716100Butt Plate....0.50
716101Plate Screw....0.25
716102White Spacer....0.20
716201Grip Cap....0.40
716202Cap Screw....0.25
716203White Spacer. . . .0.15

PART NO.DESCRIPTION£
801110Barrel Extension. . . .4.00
801120Barrel Ring....1.00
801210Ejector....0.35
801220Ejector Rivet....0.07
801310Front Sight....0.10
802000Breech Bolt....4.90
802110Locking Block. . . .1.40
802120Block Latch....0.25
802130Latch Spring....0.07
802140Latch Pin....0.07
802150Block Stop....0.07
802200Cocking Handle. . . .1.40
802310Firing Pin....0.50
802320Pin Spring....0.18
802330Pin Stop. . . .0.10
802410Extractor....0.50
802420Extractor Spring....0.07
802430Extractor Pin....0.07
802510Link....1.00
' 802520Link Pin....0.07
803110Carrier Latch....0.70
803120Latch Spring....0.10
803130Spring Rivet....0.07 '
803140Latch Button....0.07 ]
803210Shell Latch 0....0.35
803220Shell Latch U....0.35
803230Latch Spring....0 07
803240Latch Pin....0.03
803250Latch Pin Snap....0.07
804010Magazine Tube. . . .1.30
804020Magazine Spring....0.25
804030Spring Retainer....0.07
804040Magazine Follower ....0.25
804050Magazine Cap. . . .1.00
804100Recoil Spring....0.70 I
804210Break Shoe....0.80
804220Break Band. . . .0.07
804230Friction Ring....0.25
804300 .3 Shell Plug....0.20
805010Action Spring....0.35
805020Spring Tube. . . .0.50
805030Spring Plunger. . . .0.10
805040Retaining Screw. . . .0.10
806010Trigger Guard....2.50
806020Guard Pin. . . .0.10
806030Guide Bush. . . .0.10
806040Guide Pin Snap. . . .0.07
806110Hammer....0,80
806120Hammer Spring. . . .0.07
806130Hammer Pin. . . .0.07
806140Spring Case. . . .0.07
806150Spring Plunger....0.10
806210Sear....0.30
806220Sear Spring....0.07
806230Sear Pin....0.07
806240Spring Retainer....0.07
806310Safety Catch....0.20
806320Safety Spring....0.07
806330Spring Plunger. . . .0.07
806340Retaining Pin....0.07

PART NO.DESCRIPTION£
807030Trigger....1.05
807110Trigger Pin....0.07
807120Trigger Lever....0.18
807130Lever Pin. . . .0.07
807140Lever Spring. . . .0.07
I 807150Retaining Ball....0.05
i 807160Stock Pin....0.07
808010Carrier....0.60
808020Carrier Plate....0.07
808030Carrier Stem....0.07
808040Stem Detent....0.10
808050Carrier Spring....0.10
808060Stem Pivot....0.10
808110Carrier Dog....0.70
808120Dog Spring....0.20
808130Spring Plunger....0.10
808140Dog Pin....0.10
809030Fore-end A100. . . .3.30
809090Fore-end A300....4.00
809110F/E Rear Piece....0.35
i 809210Cap Screw. . . .0.07
I 809220Cap Pin....0.07
809230Cap Spring. . . .0.07
810030Stock A100. . . .6.30
I 810090Stock A300. . . .6.50
810110Stock Bolt....0.10
810120Bolt Washer....0.07
810130Lock Washer. . . .0.07
810210Butt Plate....0.25
810220White Spacer....0.20
810230Plate Screw. . . .0.15
810310Grip Cap....0.30
810320White Spacer....0.15
810330Cap Screw....0.25
