Schmidt-Rubin Rifle .22 conversion and Air Rifle Adapter
Please be aware that some specialist imagery may take time to load.
This site is designed for dedicated researchers, and is best viewed on desktop.
See also: .Schmidt-Rubin Service and training rifles. - .ENFIELD TRAINING RIFLES
PAGE UNDER CONSTRUCTION as at May 2025
Below: top; the early 1889 full-bore long rifle.
Bottom; the 1911 (Karabiner 1911) carbine converted, this one by sleeving the barrel,
to .22LR rimfire for small-bore training use.

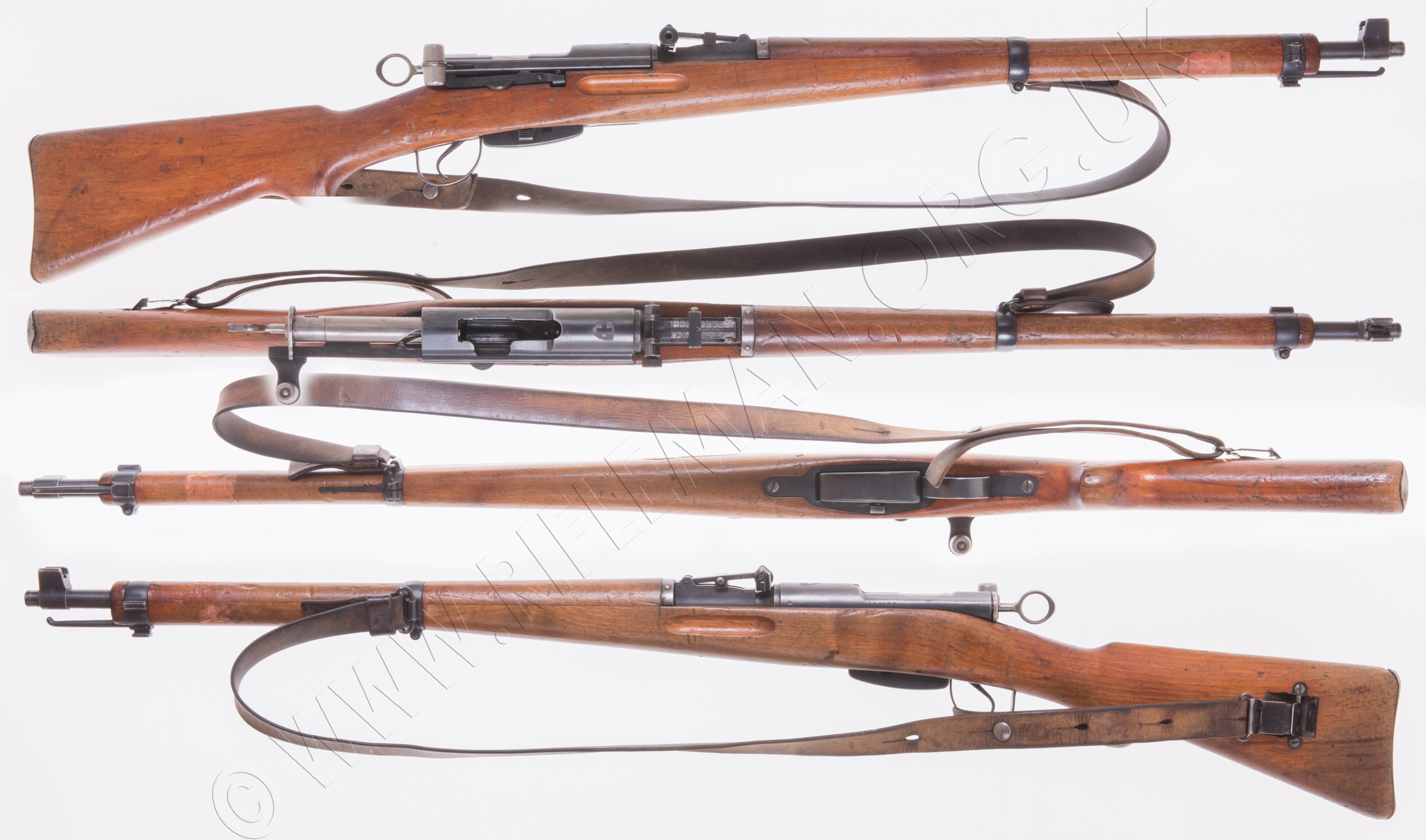

Below: the carbine - LHS
Hover over or Click image to bring up hi-res file and magnifier

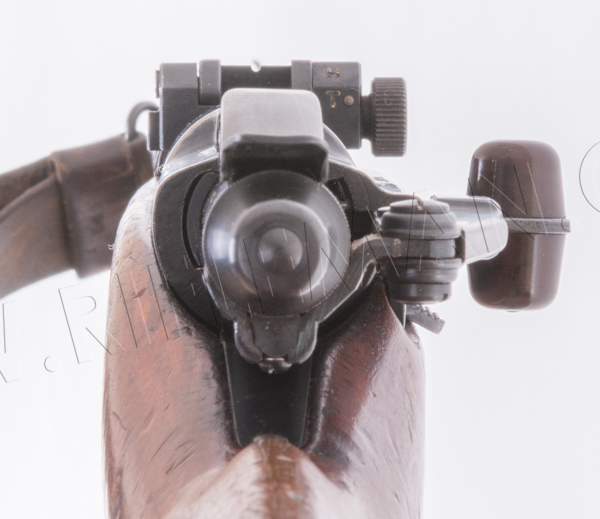

The firer's view
The action RHS
Below: the full-bore bolt-head, and.................................. the small-bore bolt-head.
............................
...................
The bolt viewed from above .............................................. and below.
..
..
____________________________-

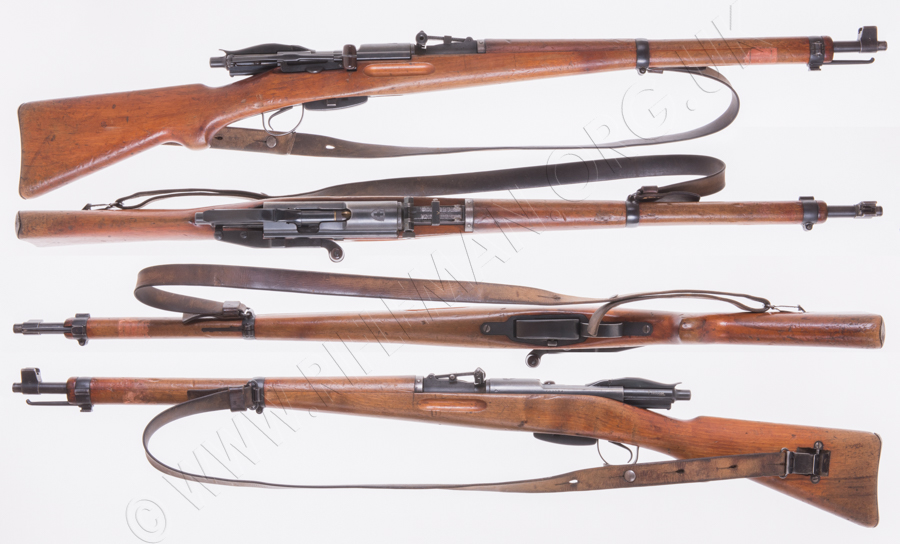

THE HAMMERLI AIR RIFLE CONVERSION UNIT FOR THE K31
Hover over or Click image to bring up hi-res file and magnifier
HÄMMERLI "Trainer"
for the Karabiner Model 31 Schmidt-Rubin
WAFFENFABRIK BERN
Calibre: .175"/4.40mm

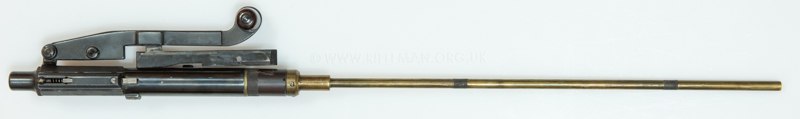

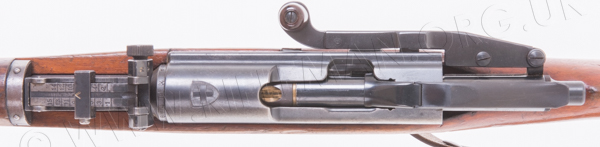

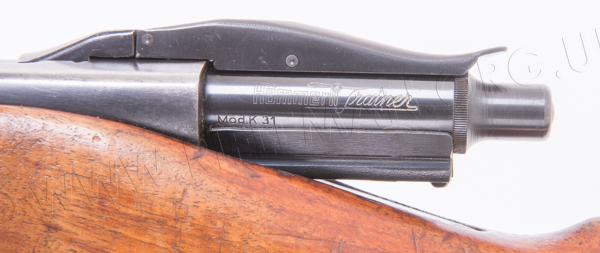

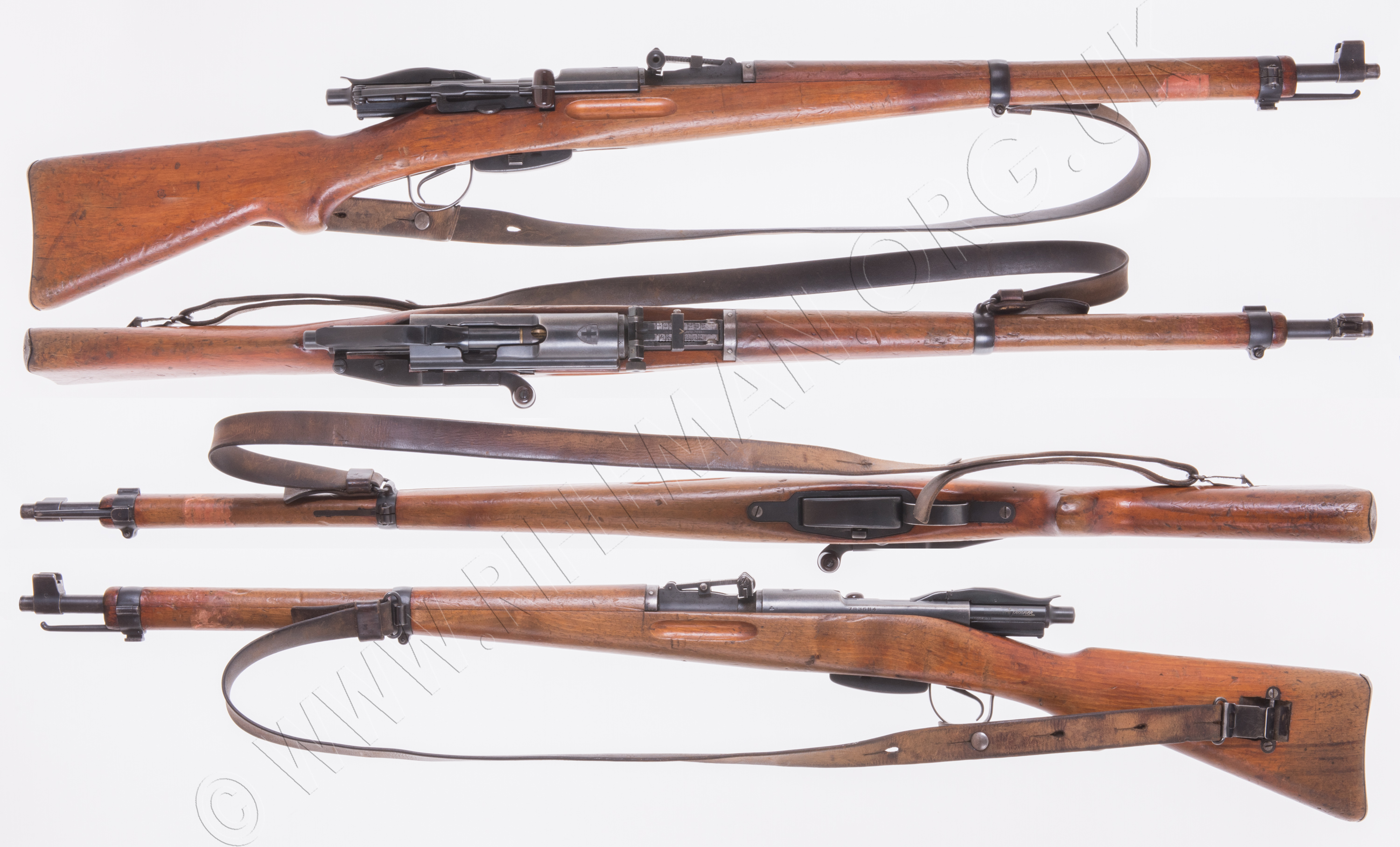

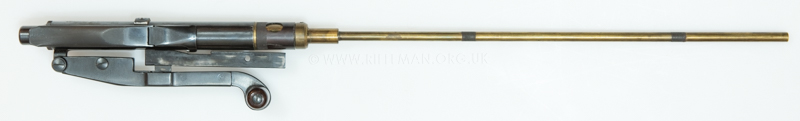

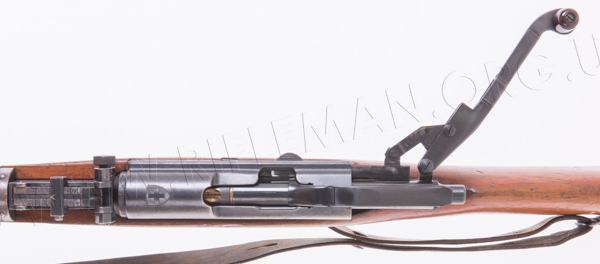

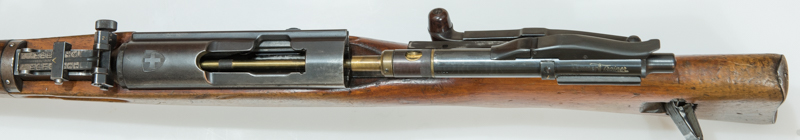

The Hämmerli "Trainer" spring air adapter replaces the K31 full-bore service carbine bolt, and replicates the arrangement of its bolt handle.

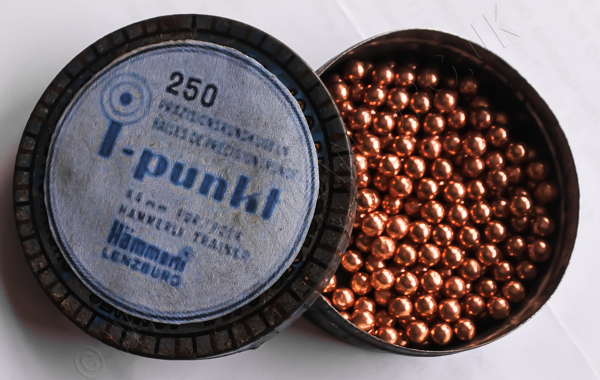

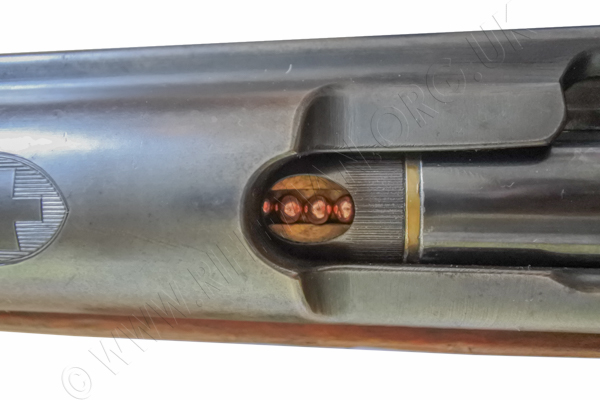

There is a 'magazine' that holds five 4.40mm calibre round balls, permitting firing as a repeater, each cocking of the lever applying pre-compression of the action.
The adapter is designed for training at a range of five metres.
Karabiner K31 SERVICE RIFLE DATA
DATA TABLE - ALL MEASUREMENTS AS VIEWED |
||
FIREARM |
IMPERIAL |
METRIC |
| Designation or Type : | Schmidt-Rubin |
- |
| Action Type : | Straight-pull bolt |
- |
| Nomenclature : | K31 carbine |
- |
| Calibre : | 7.5 x 55 & .22LR |
- |
| Weight : | 9 lbs. 9.4 ozs. |
- |
| Length - Overall : | 43.75 inches |
- |
| Length - Barrel : | 25.5 inches |
- |
| Pull : | 12.5 inches |
- |
| Furniture : | Walnut |
- |
Rifling - No./Type of Grooves : |
4 - square cut |
- |
| Rifling - Twist : | 1 turn in 10¾ inches - RH |
- |
| Rifling - Groove width : | 0.1535 inches |
- |
| Magazine | 6 rounds |
- |
Rifling - Groove depth at muzzle : |
0.0055 inches |
- |
| Sight - Fore : | Blade in protectors |
- |
| Sight - Rear : | Tangent |
- |
| Sight - Radius : | 22.5 inches |
- |
The following is an approximate translation of the manual for the adapter.
for full page display.
THE EQUIPMENT

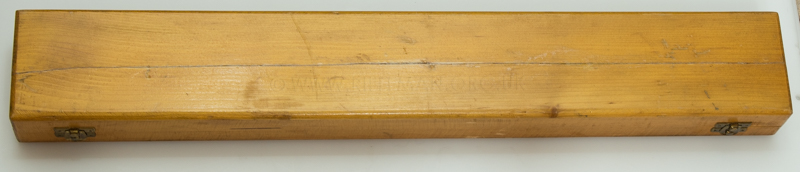

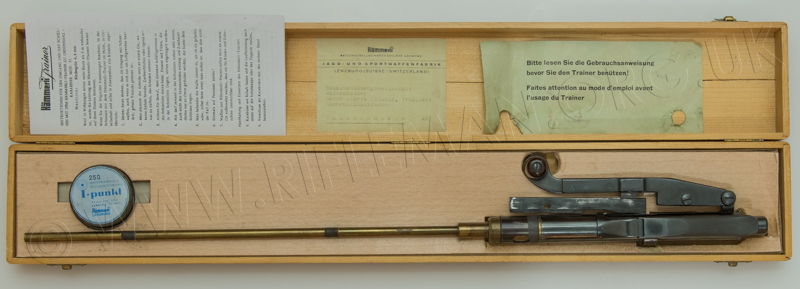

This early example was marketed in a pine box.
Later models came in a dark blue cardboard box.

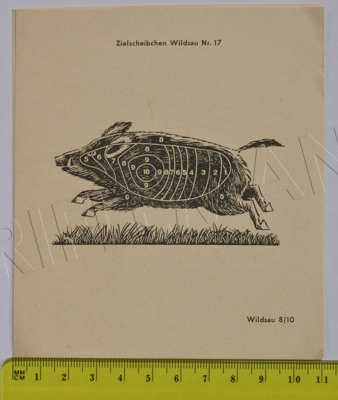

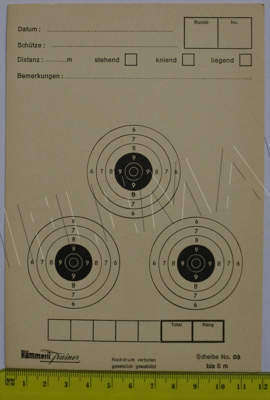

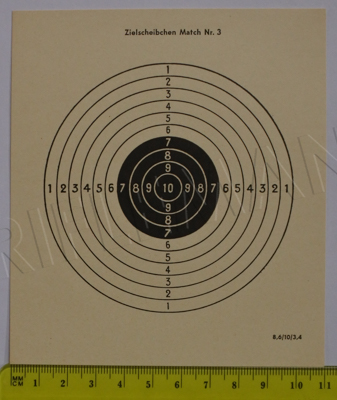

TARGETS
...........
.....
...
....
..
