Mossberg 42M(b) sights mounting screws
Please be aware that some specialist imagery may take time to load.
This site is for dedicated researchers and is best viewed on desktop.
See also: ......ENFIELD TRAINING RIFLES ...... - ......SMALL-BORE TARGET RIFLES

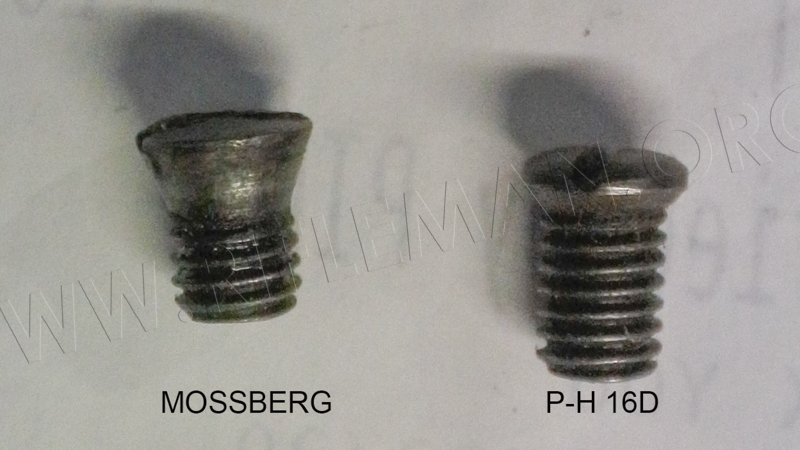

The P-H16-D sight mounting machine screw on the Mossberg 42MB uses a near 32tpi thread of 0.187" diam.
The Mossberg sight mounting machine screw uses a near 32tpi thread of 0.1825" diam.
The threads are each close to both 2BA and 3/16" BSF.
The P-H machine screw is of 0.326 O/A length with a very short taper of ca. 0.050" on its domed head.
The Mossberg screw is 0.290" O/A with a 0.110" deep taper from the base of its domed head.
