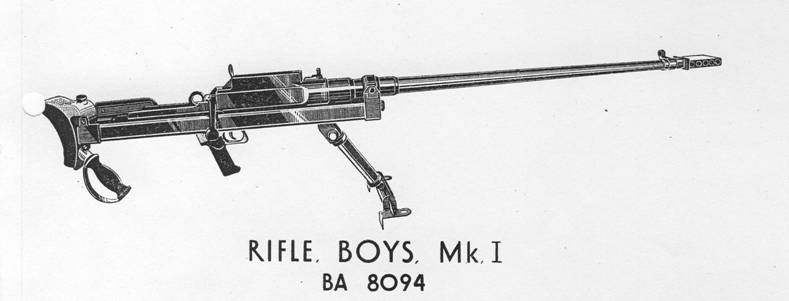

The Enfield designed BOYS ANTI-TANK RIFLE Parts List
See also the OPERATING MANUAL the S.A.T. PAMPHLET the ARMOURERS' INSTRUCTIONS the RANGE COURSE - or back to BOYS A.T.R.
WEEDON TECHNICAL BRANCH - March 1942

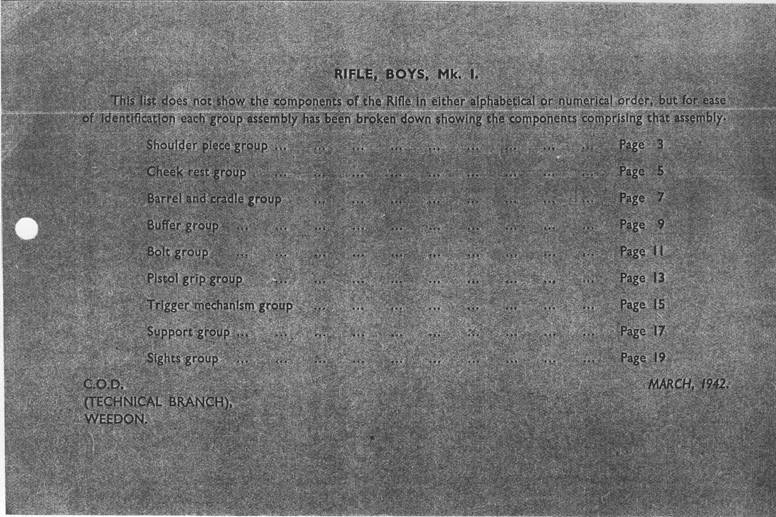

This list does not show the components of the Rifle in either alphatical or numerical order but for ease of identification each group assembly has been broken down showing the components comprising that assembly.
1) Shoulder piece group
2) Cheek rest group
3) Barrel and cradle group
4) Buffer group
5) Bolt group
6) Pistol grip group
7) Trigger mechanism group
8) Support group
9) Sights group
CAT. NO. DESIGNATION. REMARKS.

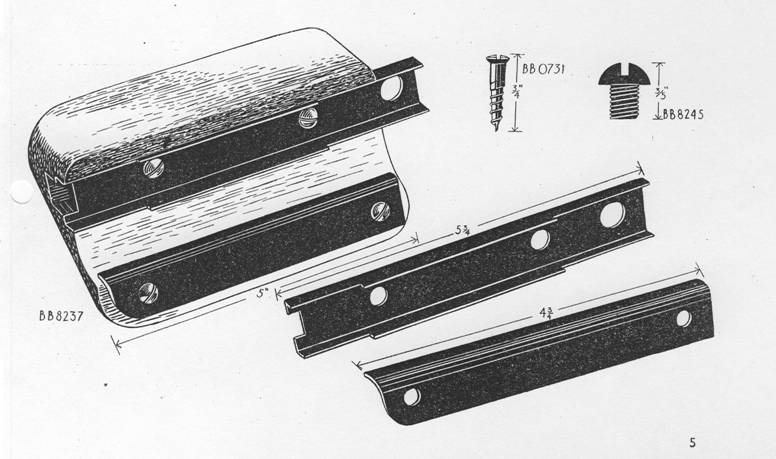

BB 8237 Rests, cheek (complete with upper and lower plates each with 2 screws).
Screws, plate, cheek rest... ........................................................ To be demanded under Rifles
No. I—Screws, disc, marking (Cat. No. BB 0731).
BB 8245 Screws, fixing, cheek rest.
Plates, cheek rest ...
"• "• ... Not issued separately.
CAT. NO. DESIGNATION. REMARKS.

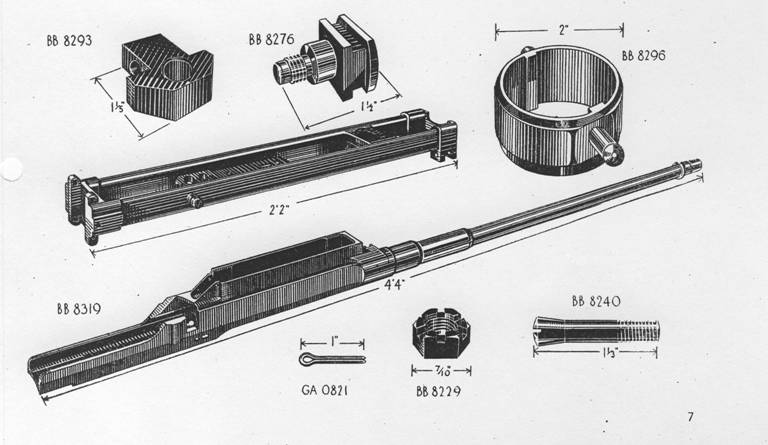

Cradles ... ... ... ... ... ... ... ... . Not issued separately.
BB 8319 Barrels (with body) ... ... ... ... ... ... Not issued separately.
BB 8296 Trunnions.
•
BB 8293 Bearings, trunnion.
BB 8240 Screws, bearing, trunnion. •
BB 8276 Slides, cradle.
BB 8229 Nuts, slide, cradle.
Pins, split, cradle slide ... ... ... ... ... ... To be demanded as " Pins, keep,
split, .-3-- in. by I in. (Sect. G. I) (Cat. No. GA 0821)".
6
CAT. NO. DESIGNATION. REMARKS.

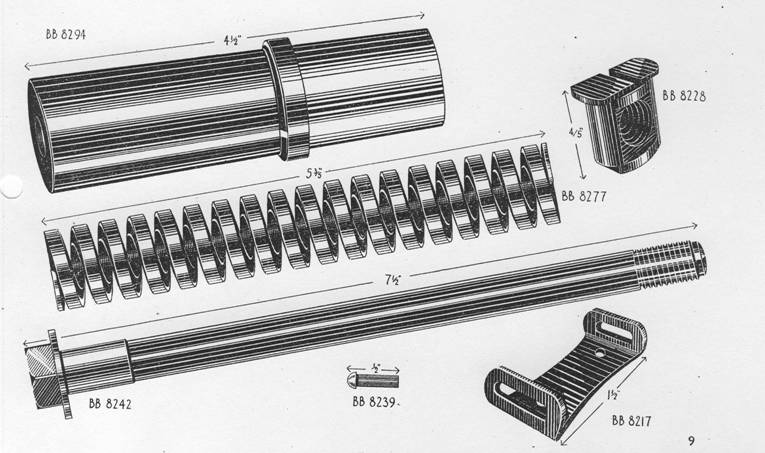

BB 8277 Springs, buffer.
BB 8294 Cylinders, buffer.
BB 8242 Screws, buffer (with nut).
BB 8228 Nuts, screw buffer.
BB 8217 Dees, cover breech (with 2 rivets BB 8239).
BB 8239 Rivets, dee, breech cover.
8
AT. NO. DESIGNATION. REMARKS.
BB 8209 Bolts, breech (with ejector ; extractor ; breech bolt ring ;
and cocking-piece complete with striker assembled).
BB 8221 Extractor.
BB 8220 Ejector.
Rings, bolt, breech To be demanded as " Segments,
ring, breech bolt " 2 per ring (BB 8238)".
BB 8238 Segments, ring, breech bolt.
BB 8216 Cocking-pieces.
BB 8272 Sleeves, cocking-piece.
BB 8285 Strikers. •
BB 8284 Springs, striker.
BB 8273 Sleeves, spring, striker.
BB 8274 Sleeves, striker.
10
CAT. NO. DESIGNATION; REMARKS.

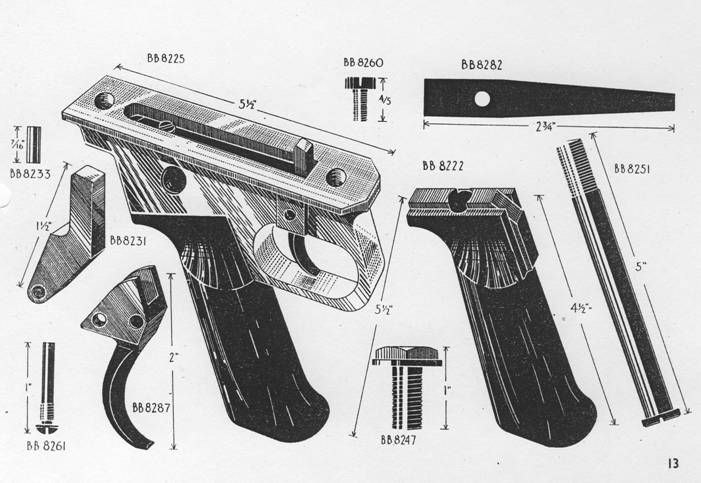

BB 8225 Guards, trigger (consisting of body ; trigger complete with
pawl and spring ; and pistol grip with screw).
•
BB 8222 Grips, pistol trigger guard.
BB 8251 Screws, pistol grip, trigger guard.
BB 8247 Screws, fixing, trigger guard.
BB 8287 Triggers.
BB 8261 Screws, trigger.
•
BB 8231 Pawls, trigger.
BB 8233 Pins, axis, trigger pawl.
BB 8282 Springs, pawl, trigger.
BB 8260 Screws, spring, trigger pawl.
12
CAT. NO. DESIGNATION. REMARKS.

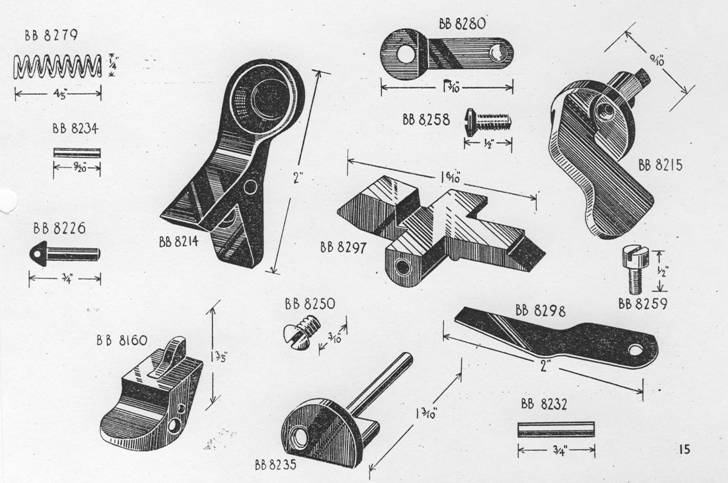

BB 8214 Catches, magazine.
BB 8279 Springs, catch, magazine.
Pins, axis, magazine catch.
BB 8232
Pins, stop, ejector.
BB 8160 Stops, ejector.
BB 8226 Guides, spring, magazine catch.
BB 8234 Pins, guide, magazine catch spring.
BB 8297 Sears, Mk. II.
BB 8298 Springs, sear, Mk. II.
BB 8259 Screws, spring, sear.
BB 8235 Pins, sear.
BB 8250 Screws, pin, sear.
BB 8215 Catches, safety.
BB 8280 Springs, catch, safety.
BB 8258 Screws, spring, safety catch.
14
CAT. NO. DESIGNATION. • REMARKS.

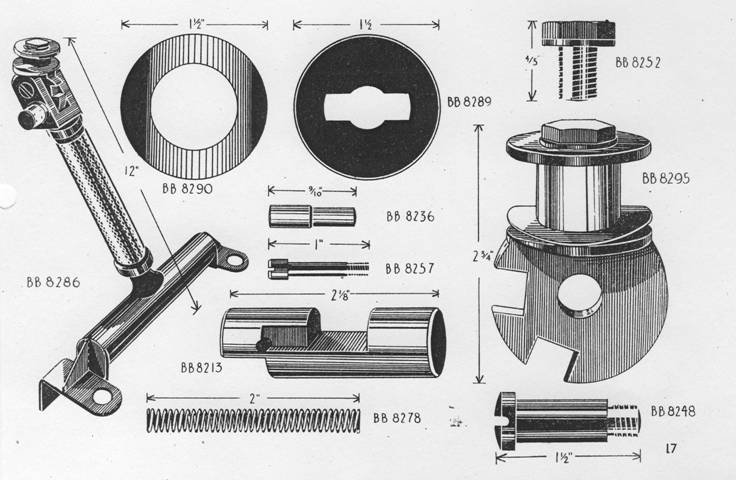

BB 8286 Supports, front (consisting of pivot with screw and washers ;
hinge complete with screw and catch ; sleeve ; sleeve
screw ; stem pin ; and foot assembled).
BB 8295 Pivots (with screw and two washers).
BB 8252 Screws, pivot.
BB 8289 Washers, pivot, plain.
BB 8290 Washers, pivot, spring.
BB 8248 Screws, hinge, front support.
BB 8213 Catches, front support.
BB 8278 Springs, catch, front support.
BB 8236 Pins, stem front support.
BB 8257 Screws, sleeve, front support.
16
CAT. NO. DESIGNATION. REMARKS.
BB 8537 , Backsights, Mk. II (complete with " 0 " aperture sight).
BB 8265 Sights, aperture, backsight left .015 in.
BB 8266 .03 in.
BB 8267 .045 in.
BB 8268 Sights, aperture, backsight " 0."
BB 8269 Sights, aperture, backsight right .015 in.
BB 8270 .03 in.
BB 8271 .045 in.
BB 8546 Screws, fixing, backsight Mk. II.
BB 8256 Screws, sight aperture.
BB 8210 Brackets, foresight (with " 0 " blade and 2 screws).
BB 8201 Blades, foresight—.045 in. These three blades are below the
BB 8202 —.03 in. height of the " 0 " blade by the
BB 8203 —.015 in. amount shown.
BB 8204 " 0 ."
BB 8205 .015 in. These three blades are'above the
BB 8206 .03 in. ... ... height of the " 0 " blade by the
BB 8207 .045 in. amount shown.
BB 8241 Screws, blade foresight.
BB 8338 , Recoil reducers, Mk. II.
18
