THE WAR OFFICE 1906 PATTERN MINIATURE RIFLE

and the Survey Data


More than ten years after the French Government had, in 1893 at the behest of the Union des Societes de Tir - ( literally the union of shooting societies), appointed a commission to develop a specification for a miniature calibre Lebel style cadet and club rifle to emulate the Lebel service weapon, an equivalent plan was set in motion in Britain. E.J.D. Newitt, in his book " The Citizen Rifleman", wrote of the conception of the War Office Pattern Miniature rifle thus:

"In the latter part of 1905 a Committee of the British War Office, assisted by representatives of the National Rifle Association and Society of Miniature Rifle Clubs, met for the purposes of determining the details of a low-power rifle to meet the requirements of the Civilian Rifle Clubs, schools and other organisations for teaching marksmanship in England."

[ Note: the British War Office was asked to provide for the teaching of rifle shooting in "England". Was this a slip of the pen - or an indication of the way in which such aspects of the Union were viewed by some at the centre of Government at that time?! Ed.]

"In 1906 a complete specimen, constructed at the Government Small Arms Factory at Enfield, was adopted, sealed as a pattern, and is now in course of manufacture by the Birmingham Small Arms Co. and the London Small arms Co. The calibre is .22, and the pitch of the rifling is suited to the .22-5-40[grain] cartridge.

The bolt action is similar in appearance and operation to that of the British Service rifle. The stock has a pistol grip and short fore-arm, terminating about eight inches from the muzzle. The weight is 5lbs. 5ozs., the barrel being tapered towards the muzzle, and somewhat thinner and lighter than the best examples of American .22 calibre rifles." [ At the time of writing, there were only two other .22 calibre rifles of British make; the "Certus" made by the London firm of Cogswell and Harrison, and the Birmingham company W.W. Greener's "Miniature Club" rifle].

"The sights are of military pattern, the backsight permitting of vertical adjustment by means of a slide resting upon an inclined ramp, and of lateral adjustment by means of a screw. The front sight, owing to the tapering of the barrel and height of the backsight, has a total height of three-quarters of an inch, the point being protected by a neatly designed hinged cover. The radius between the sights is 18 inches. The Continental system of long pull or draw trigger, and swivels and sling similar to those of the Service arm, which this rifle resembles in miniature, have been adopted."

As just related in this contemporary report, the rifle was put into production to a specification demanded by the Government's War Office requirements, for a lightweight miniature calibre training and target rifle for cadet and club use, determined after consultation with civilian organisations. The perceived need for this was largely as a result of the national promotion of rifle shooting after the Boer War (1899-1902), during which the Boer riflemen employed such effective long range fire with the Mauser rifle. The less well prepared British forces were still using battle technique developed from Napoleonic times and suffered heavy losses as a result. The encouragement of the populace into rifle shooting was instigated by a number of senior military men, keen senior civilian riflemen and politicians, in particular Lord Salisbury, with Lord Roberts of Kandahar [F.M. The Rt. Hon Frederick Sleigh (Roberts), 1st Earl Roberts of Kandahar, Pretoria and Waterford, VC, KG, KP, PC, GCB, OM, GCSI, GCIE, KJStJ, VD] as the prime mover and figurehead. This resulted, between 1901and 1904, in setting up of the Society of Miniature Rifle Clubs, itself a development of the shooting sections of the Society of Working Men's Clubs.

Mr. Newitt was modest in his description of the way in which the move to a semi-official training rifle had developed. He was personally heavily involved in the process of encouraging the Government into action on this score:

 (see Society of Miniature Rifle Clubs).

Introduced in 1906, the War Office Pattern Miniature Service Rifle was designated to the design prepared for the War Office by Speed and Ashton (Joseph J. Speed and Dr. H.T. Ashton) at the Enfield R.S.A.F. (Royal Small Arms Factory). The British Patent, number 25,403, was granted to them on 6th. December 1905. Later patents, respectively in 1906 and 1907 were granted for the swivel foresight hood arrangement and the windage rearsight clamping system. These are illustrated later in the page.

Patent entries taken from "Patents for Inventions - Abridgements of Specifications - Class 119 - Small Arms"



The rifle was manufactured from 1906 both by BSA & Co ( the Birmingham Small Arms Company ) and the LSA ( the London Small Arms Co.) under licence.

Those illustrated below are all of B.S.A. Manufacture

Above -Top: The full military stocked rifle Serial No. 1368 (1906); Second from top: The magazine-fed rifle Serial No. 5853 (1908)

Second from bottom: The standard civilian style rifle Serial No. 20118 (undated); Bottom: The "De Luxe" model Serial No. 20883 (undated)

The De Luxe model carries the optional centre trigger-guard sling swivel described later

The topmost BSA manufactured rifle, with the long military furniture, interestingly carries a cartouche,

on the right-hand-side of the buttstock, for

"WILKINSONS LTD. - GUN RIFLE & SWORD MAKERS - PALL MALL LONDON"


The Enfield Pattern Room holds four different models of W.O.P. Miniature rifle. Of these, only the earliest is shown here.

This is the earliest prototype (1905/6) held in the Pattern Room collection. It is a magazine fed rifle, built at R.S.A.F. Enfield, with a 7 round magazine capacity; this configuration was never put into production, and the magazine will be seen to protrude further below the rifle than the B.S.A. and L.S.A. manufactured models illustrated later.

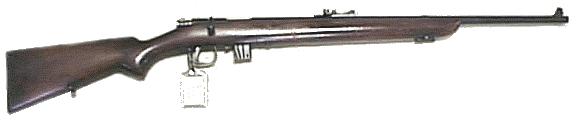

The original Enfield produced prototype W.O.P. rifle with 7 round magazine - Ref: RB369 - image by courtesy of the Enfield Pattern Room

In 1907 the L.S.A.Co. submitted a version with a five round magazine for assessment. In the same year, the L.S.A. Co. submitted a further rifle for inspection. This sample was fitted with a bolt modified to a new B.S.A. Co. patent. This example is marked with serial number 1. In 1909, B.S.A. manufactured their own magazine-fed rifle, again with a five round capacity; this rifle was fitted with the 1907 modified bolt (see below). Quite early in production, the fully military stocked single shot rifle was introduced, as illustrated above. It will be seen that most rifles up to 1909 were sporter length stocked , even the magazine-fed model. As first marketed, the rifle was mostly sold as a single shot version. Of the total contracted production by both companies of about 160,000 rifles ( of which nearly two-thirds was contracted to the B.S.A. Co.), only a few thousand magazine rifles are understood to have been manufactured. The totals of all configurations manufactured by both companies are difficult to determine. Most of the higher serial numbers seem to be in the 20,000 range for B.S.A. Even if these serial numbers started at 1 for each type, which appears not to be the case, then B.S.A.'s total manufacture alone would hardly have met their contract for 100,000 rifles. The onset of the First World War, whilst not initially halting production of these training rifles, latterly seriously affected it, since almost all arms production was switched to service weapons.

The next two images can be rotated and zoomed, either as initially loaded or full-screen for higher definition.

Slide cursor < > to rotate, and Click to zoom.



The upper image shows the full-length military stocked magazine-fed rifle. This example is a very early production model by the London Small Arms Company, and carries the serial number 404. It is fitted with the unusual LSA folding rearsight that has a single aperture that is windage adjustable on an eccentric cam by a few degrees rotation of the whole disc. Intrinsically this is a clever design that suffers from too easy inadvertent displacement.

The lower image shows the same rifle rotating on its bore axis.

Nowadays the magazine-fed rifles are quite rare and often missing their magazines. The magazine rifle was particularly used by the Military, and the 1910 edition of Musketry Regulations reports specifically on the employment of this model with its five round magazine capacity. The regulations describe the rifle as being fitted with a barrel rifled in the 'segmental' Metford style.

The image to the right illustrates that the grooves are indeed radiused, but on a very different scale from the .303 Metford rifling, each 'land' taking a larger segment of the circumference of the bore than the rifling of a full-bore barrel. Additionally, the groove depth is effectively greater, being a larger percentage of the radius of the bore in the .22 barrel than the .303.

The rifles were fitted with barrels of 24" length. The rifling is - as can be seen above - 8 groove and the rifling twist is 1 in 16.

(N.B. should a cursory glance at your own rifle indicate a bore with 6 grooves of a flat nature, in the more modern style, it has probably been re-sleeved in the manner of Parker rifling).

At risk of being accused of an off-topic diversion, it is probably worthwhile to relate the origin of the Metford type of rifling .



The Metford rifling was used mainly in the Enfield Martini rifles - adopted in 1886 - and subsequently in the early marks of Magazine Lee Metford (M.L.M.) "Long Lee" rifles. Metford eliminated the sharp corners or edges most commonly employed in rifling design. His system was designed to limit fouling of the barrel by the residue of burnt powder, which built up after several shots were fired and affected accuracy by interfering with the passage of the projectile. This situation, a problem particularly evident when gunpowder (black powder) was the only propellant available, was much reduced with the introduction of nitro-glycerine based explosive. This is believed first discovered by the German Christian Schönbein of Basle, (a contemporary and student of Michael Faraday) in 1846, in the form of "guncotton" and further developed by the Swedish born chemist Alfred Nobel near Stockholm. Nobel's main invention was the most well known "Dynamite" used for mining and demolition - and oft shown in the 'movies' being used for demolition of an aggressive nature. It is 'thought provoking' that Nobel bequeathed much of his considerable wealth to the setting up in 1900, after his death, of the Nobel Foundation and an annual prize for the person considered to have worked to the greatest benefit of mankind - the famous Nobel Peace Prize.

Above: The rifling 'leed' (lead) at the front of the chamber

In the form of "Cordite", a hybrid of nitro-glycerine and nitro-cellulose, a stable and reliable "smokeless" propellant was invented. Cordite was developed by Prof. Sir Frederick Abel working with Sir James Dewar ( see the Dewar rifle and competition), also contemporaries of Michael Faraday, at the Royal Institution, for the W.D. (British War Department) in 1889. The product was manufactured as a fine stranded extrusion.

Left top: Cordite

Centre: .303 inch Rounds - various, with cardboard wad that is placed between strands of Cordite and bullet

Bottom: Black powder as used pre- Nitro-based propellants

Above right: plaque celebrating fifty years since the invention of Dynamite

In production, the propellant was packed into a cartridge case along the lines of a packet of miniature spaghetti. Cordite was commonly used in most ammunition by the time of the First World War ( 1914-1918), still in use in the Second World War ( 1939-1945), and for many years after in some corners of the world; indeed, it is still occasionally found available as surplus .303-inch ammunition today - more than half a century later.

But we digress!

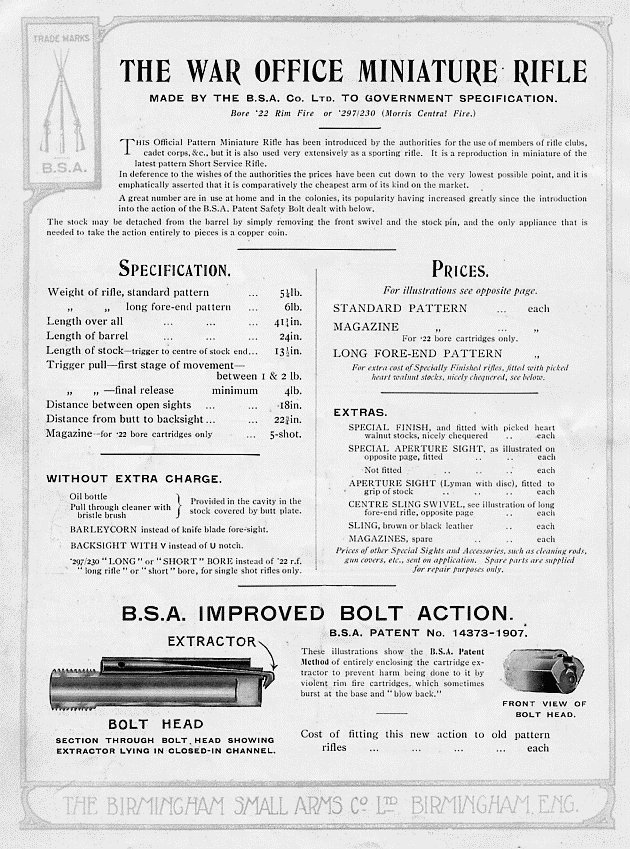

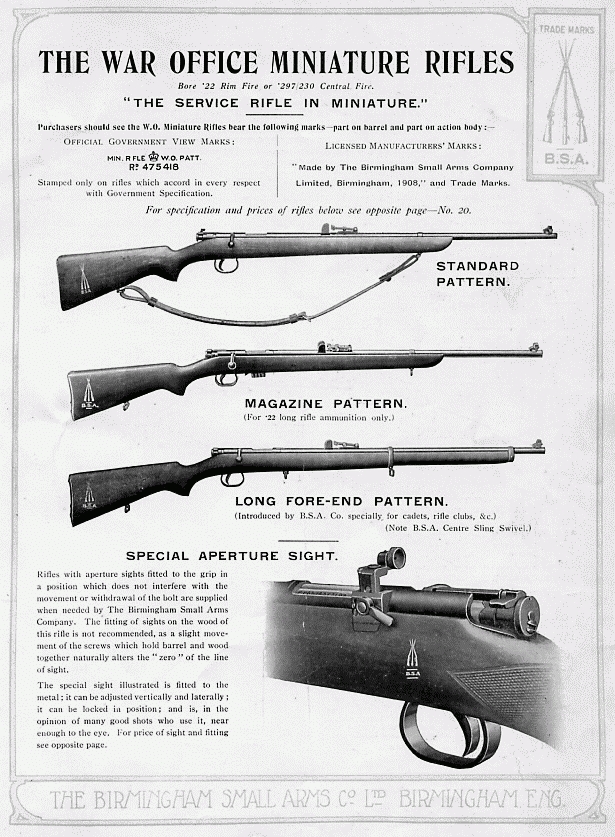

The B.S.A. Co. advertised their version of the W.O.P. rifle extensively. The examples on this web page are all in the most commonly produced calibre of .22-inch rim-fire. However, the following two images of pages, from their 2nd. edition 1909 catalogue, illustrate that the rifle was also available in the .297/.230-inch calibre for the Morris cartridge which, by this time, had already been in use for many years with the Morris Aiming Tubes used for miniature calibre training by the military. These sub-calibre tubes were available for many types of Enfield rifle and carbine - both Martini and bolt action - chambered for either the Morris Short or Long cartridges.

It should be noted above that, already, B.S.A. were offering a retro-fit aperture rear-sight in an attempt to encourage use of the rifle for target shooting rather than mere military style training; this was probably rather wishful thinking - as can be discovered when reports of the rifle's performance against its contemporaries can be read further on in this article.

The bolt-head variations

There were at least three variations in bolt design over almost nine years of production . The first was a single overhead extractor system, not pictured, but shown in the first figure on this page in the Patent Drawing No. 25403 of December 1905, and similar to the right hand example in the above image - although without the covering hood (integral with the bolt-head) which was an Autumn 1907 B.S.A. Co., modification to prevent breakage of the extractor and to protect both the firer and the extractor in the event of a blowback from a split cartridge case. Shown left in the image above, and as described in John Knibbs's 2002 published, and comprehensively detailed, book of the history of a hundred years of B.S.A. production ( "The Golden Century" - see Recommended Reading), yet later models were fitted with the further improved double claw extractor arrangement ( illustrated above left) which was capable of withdrawing the most obstinate of cases from the chamber. Strangely though, the patent for this double claw design was granted to B.S.A. in January of 1907, nearly six months before that for the hooded extractor. With the introduction of the double claw bolt-head, at whatever date, the earlier problem of split cases damaging the extractors seems to have been further obviated; whether this is as a result of more reliable ammunition, or strengthening of the extractors, or a combination of the two factors, is not certain. The more common hooded extractor bolt-head design was the " improved" version patented by B.S.A. Co., (above right) as described in the contemporary advertisement illustrated immediately above this image. Few of the original design of bolt-head will be seen, probably because B.S.A. heavily advertised their 1907 modified version as a retro-fit, although not a cheap option at over fourteen shillings (fitted) in the early years, nearly a third of the price of a new W.O.P. rifle at 45/-, whilst a far superior Model 8 Martini-actioned target rifle could be had at little over 50/-.

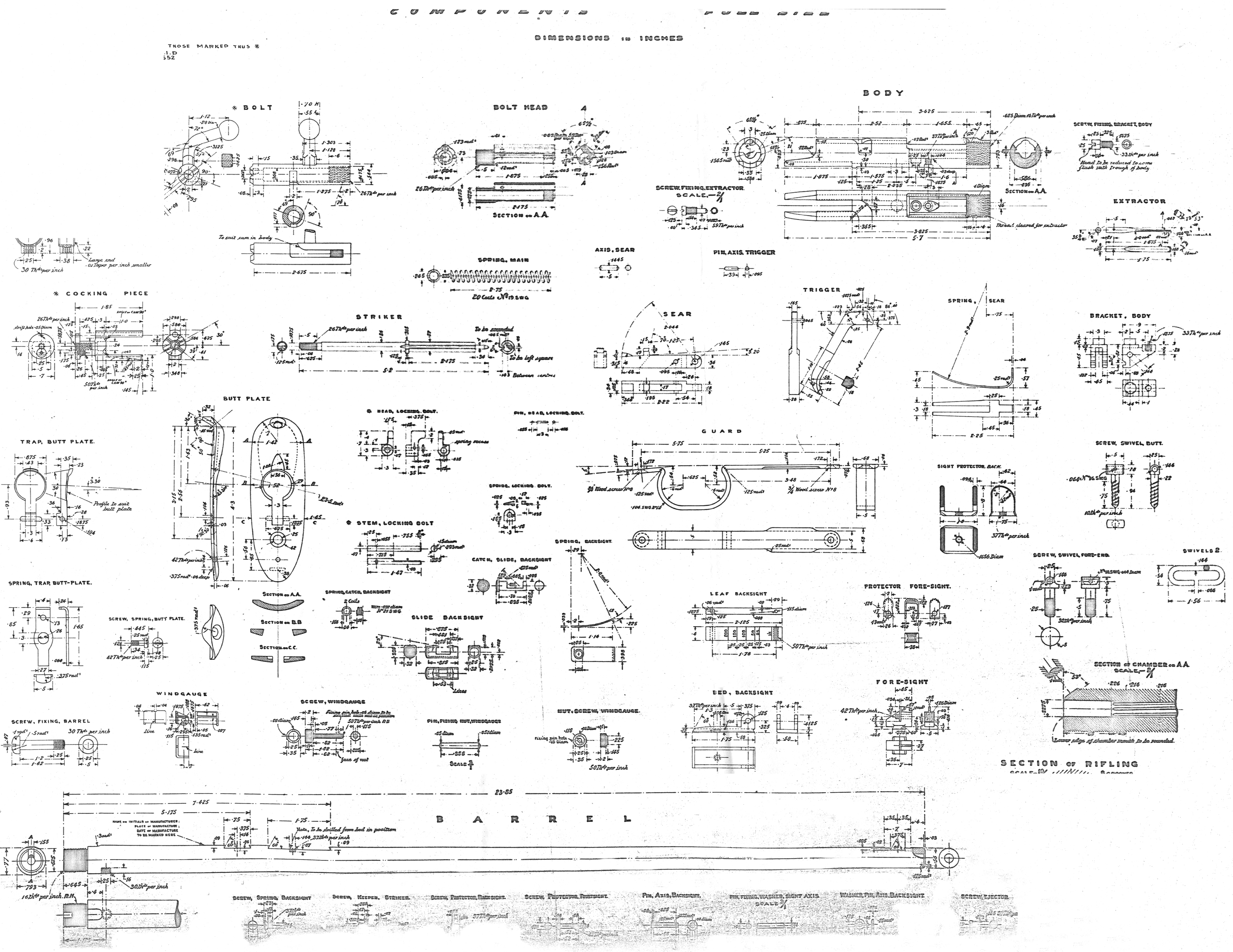

Below is an image of a section of the R.S.A.F. drawing of the components of the W.O.P. Miniature rifle showing the bolt detail.

By kind permission of the Trustees of the Imperial War Museum

Below left is an image of the single extractor unhooded bolt-head of an early London Small Arms Company rifle, to the original R.S.A.F. drawings, and, right, another image in which are shown both the BSA twin extractor bolt-head and their patented version with the integral hood protecting the extractor spring , which can clearly be seen as part of the newly designed casting for the bolt-head on the right; Patent number 14373 - August 1907.

The firing-pin is offset for the rim-fire cartridge

The need for this modification to the original bolt-head is clearly explained in an entry in " The Rifleman" the Journal of the Society of Miniature Rifle Clubs, (indeed today still the Journal of the National Small-bore Rifle Association ), in August 1907 - which reads as follows:

THE " WAR OFFICE " MINIATURE RIFLE.
"A number of somewhat mis-leading paragraphs have recently appeared in the Press with reference to the above, as regards the firms in Birmingham who manufacture the weapon. Although more than one are at present licensed to do so, only two have availed themselves of the permission, namely, The London Small Arms Co., Ltd., and The Birmingham Small Arms Co., Ltd., and chief point in which interest is centred is the fact that unfortunately in a number of cases faulty cartridges have caused the breakage of the extractor of the " War Office " Miniature Rifle. This matter has been very carefully considered for some time past by the London Small Arms Co., and they have obtained the sanction of the War Office to manufacture W.O.M. rifles with a new pattern single extractor and a safety hood, which is formed bv the continuing of the body projecting in the front of the bolt-head and the extractor. The firm have made very careful tests with this rifle in conjunction with the Government Officials, and the results obtained prove that with the modified body it is impossible for a bursting cartridge to blow out the extractor."

To the left is an image showing the,

January 1907 patented, twin extractor, bolt above, and the August 1907 hooded single extractor version below. The bolt safety catch arrangement, representative of that on the .303-inch calibre "Long" Lee-Enfield rifles and reminiscent of that fitted to the Mauser rifles, is also evident.

The root of the bolt-handle forms the bolt locking lug and engages in the indent to the RHS, into which the machined handle slot can be seen to lead, in the image below of the bolts in the open position.

This method is still commonly in use today by manufacturers of many small-bore sporting and target , although most safety catch designs operate at the side of the bolt or directly on the trigger and sear mechanism rather than

simply locking back the firing-pin striker or cocking piece.

Right is an image comparing the single shot receiver (above)

with that of the magazine rifle (below).

It has been related that the original magazine design

was for a seven round capacity.

However, only the five round version was put into production.





The specific way in which the

receiver of the original single-shot

rifle was constructed,

with the shaping of the receiver

providing a tapered loading platform,

and the bolt head being

profiled to that shape to permit

direct feeding of the round into the

chamber when the bolt was closed,

was obviously felt by B.S.A. to be

a patentable design,

because they applied for that patent

( shown left)





and it was granted in 1906 on April 23rd.,

only four days after that for the foresight protector.



The BSA registered patent no.1000 shown below was also significant in that, for whatever reason, it specifically reiterated the design for a non-rotating bolt-head which would allow of a round placed into the specially shaped receiver bolt-way being fed directly into the chamber by the closing of the bolt, but additionally dealt with the idea of a twin extractor bolt-head.

The twin extractor bolt-head,

shown earlier in the page as the upper examples in

the bolt comparison and receiver comparison images, was granted

patent in January 1907. The patent entry is here left.

The system was not manufactured for long because, by June of that

year, a further patent, for what proved to be the longer serving

design, was granted. This patent, No. 14,373, is that stamped

prominently on the bolt-heads of most surviving W.O.P. Miniature

rifles and is familiar to those who have used these rifles during their

respective lifetimes.

That patent entry is shown below.



 The sights of the War Office Pattern Miniature rifle

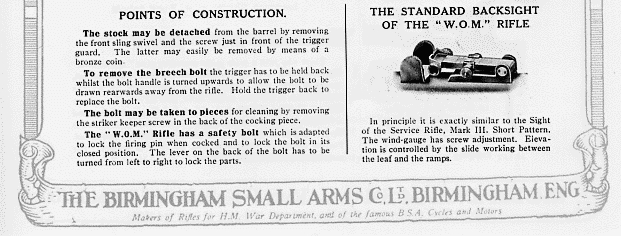

Below left: the rear-sight as illustrated in an advertisement from the 5th. edition - 1912 - of the B.S.A. catalogue.

The rear sight was intended to represent that of the full-bore Service rifle. The tangent sight leaf was calibrated for 25, 50, 100 and 200 yards and carried a fine windage adjustment. Probably more to enhance the emulation of the Short Magazine Lee- Enfield rifle than to afford protection of

the sight leaf, a pair of protector wings, to replicate those on the S.M.L.E., were fitted into a recess machined into the barrel immediately behind the twin windage adjusting knobs. This, unlike the .303 Service arm, permitted windage adjustment without the necessity to raise the sight leaf well clear of its ramp in order to gain access to the adjuster.



Below: the markings and Patent numbering on the 1908 model

For the first years of production, the date was included with the marking. Subsequently, this and the "BIRMINGHAM" stamp were replaced by

"ENGLAND", beneath which was " Cartridge .220 Long Rifle ".

What my well have been the

much earlier patent for the

rear-sight windage

adjustment arrangement is shown left below;

albeit the windage block and screw are shown attached to a S.M.L.E. type rearsight leaf with the worm and screw system of elevation adjustment.



This was not used on the W.O.P. rifle, which utilised the simpler sprung button clamping method.



For the W.O.P. Miniature rifle, BSA especially designed a foresight with an integral flip-over protector hood -

- and the patent granted in 1906 is here shown; although the hood in the patent drawing swivels in line with the barrel, whilst the production version hinges across the barrel. It is interesting to note that that same production sight, as shown on the rifle on this page, was also used on the contemporary French training rifle, the Buffalo-Lebel. We are unsure which came first.

Certainly, the production model would have been cheaper to manufacture than the design in this patent, which had a complicated locking arrangement to hold the hood in position - either up or down. The rifle could therefore have been fired with it in either position. The production fore-sight's hood only permitted firing (or at least sighting) with the hood down, and it would only be raised for carrying or storage. The lateral hinging automatically obviated displacement on firing.

The fore-sight: -

- Right:

...................................hood down...............













....and hood up.......





Left are two close-up images allowing easy

comparison of

the stock wrist, trigger guards

and magazine position on the

production magazine fed rifle.



The lower image well illustrates

the wrist chequering of

the " DeLuxe" commercial model.

............................... ....................



The next two images can be rotated and zoomed, either as initially loaded or full-screen for higher definition.

Slide cursor < > to rotate, and Click to zoom.



The upper image shows the single-shot DeLuxe rifle under discussion.

The lower image shows the same rifle rotating on its bore axis.



The prototype 7 round and production 5 round magazines are here shown together for comparison

images by courtesy of

respectively the Enfield Pattern Room and the Trustees of the Imperial War Museum

The 5 round magazine showing the slender loading platform

NOTE: We were made aware, thanks to a researcher and collector from North America, that the magazines shown here for the War Office Miniature rifle, particularly the prototype's seven round version, bear more than a passing resemblance to the magazine fitted by the Savage Arms Company to their 1903-1906 Model Repeating Rifle. We have produced a page to cover this subject seperately, with a comparison between the War Office Miniature Rifle's prototype magazine, production magazine and the Savage 1908 .22 magazine and its 1904-08 Patent. It should be mentioned that, for those owners of magazine-fed War Office Miniature rifles whose proud possessions are missing their magazines, and from whom we often receive enquiries of where replacements might be obtained, it occurs to us that either original or modern replacement Savage magazines might at least offer a source of units to put their rifles back into commission. Do look at the link above though for dimension details. One supplier of such units is the "Gunclip Depot" in the U.S., under their stock number M1166. We have yet to obtain one of these to put it to the test, since they are apparently all-too-often out of stock, but we hope to do so eventually. The Numrich Gun Parts Corp. also market these replacement magazines.

We have also embarked upon the modification of the magazine from a B.S.A. Sportsman Five rifle. This is a conversion suitable for anyone with modest metal-working and silver-soldering skills, resulting in an effectively workable magazine, albeit not a faithful replication, but which renders fully operational a hitherto all but defunct rifle.

Details of this latter means of replacing a missing magazine can be found on the page

"Replacement magazine for the War Office 1906 Pattern Miniature Rifle"

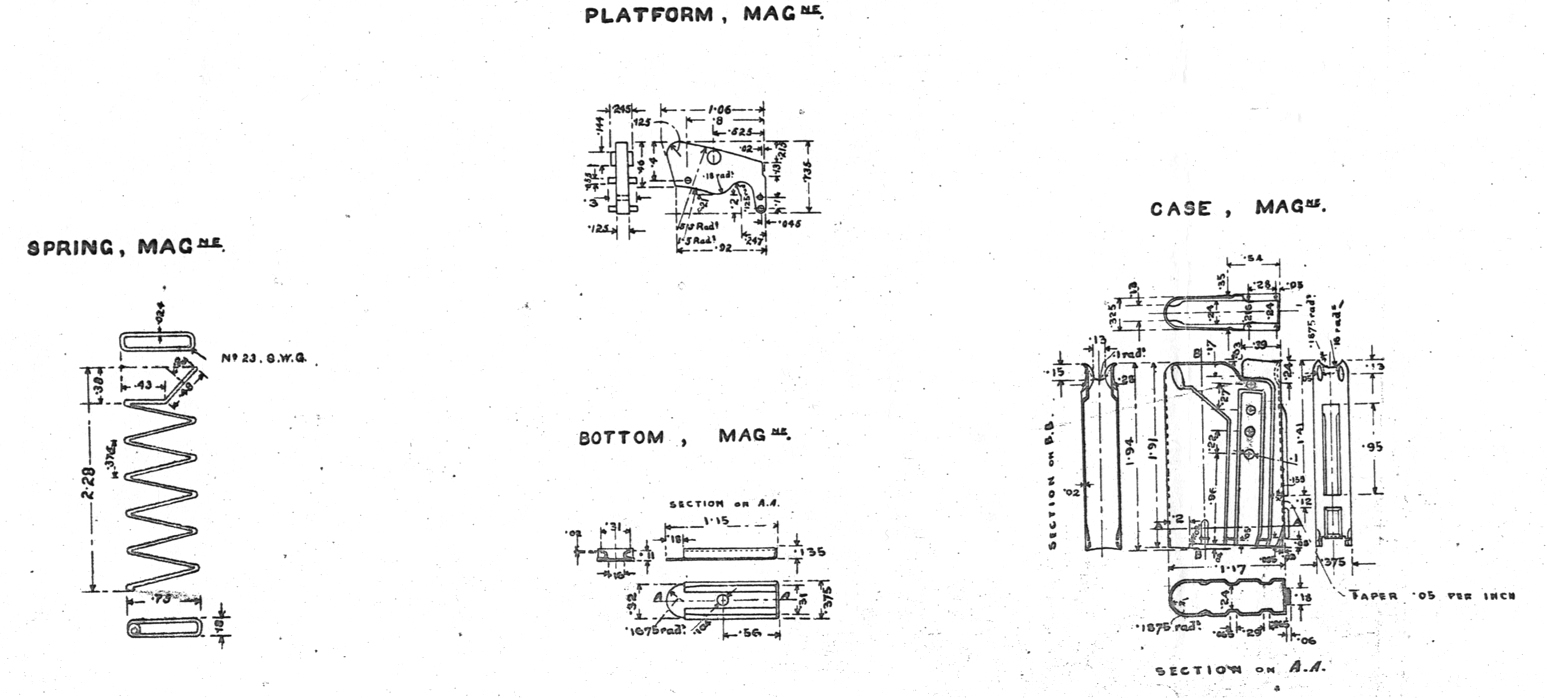

above sectional drawing of the 5 round magazine as fitted to the rifle

by kind permission of the Trustees of the Imperial War Museum



To illustrate the ease of stripping engendered by the B.S.A. Co. design,

images, right and below, show how, by slackening the main barrel bedding screw

in front of the trigger guard, and

unscrewing the forward sling swivel, the machine screw for which engages in the threaded

boss under the barrel band, the rifle can easily be disassembled -

unlike the Canadian Ross "straight-pull" training rifle, which even requires

the barrel and stock to be separated, and the rear-sight unscrewed from the rear of the

action, before the bolt can be removed.

.......

The standard rifle was fitted with a brass butt-plate along the lines of that on the Service S.M.L.E., although it was in fact a special design, necessarily slimmer. The trap for the cleaning equipment, oil bottle and pull-through, was orientated, on the BSA manufactured rifles, with the hinge at the top, as on the .303" service rifle which it was loosely intended to emulate. Interestingly, one War Office specification drawing, detailing components for the rifle, shows an alternative butt-plate with the trap inverted, which configuration has only been seen on early London Small Arms Company War Office Pattern miniature rifle production. This bottom-hinged trap is also to be found on the Canadian Ross Cadet .22RF training rifle, there properly reflecting the layout of the full-bore Ross service rifle.

It is quite possible that this was a way of permitting the BSA and LSA companies to enjoy a small, but comparatively obvious, differentiation between their respective products. There was certainly otherwise precious little room for manoeuvre in the Government specification, over and above the markings in the form of rather less noticeable company cartouches and name or logo marks on the barrels and other ironwork. Supposition perhaps, but there seems little other logical reason for such a strange variation in design, other than the possibility that the War Office felt that there might be some future necessity to easily and quickly identify the rifles of the two companies. It will be seen shortly that this situation of variance did not continue indefinitely.

A butt-plate in this inverted configuration has yet to be found on a rifle of BSA manufacture, but can appear, as already mentioned, on the early LSA rifles ( see image of rifle, serial number 531 of 1906, far right below). It will also be seen that, in common with the Royal Small Arms Factory drawing, the BSA plate ( far left) has the upper fixing screw passing perpendicularly into the butt in the same manner as its lower screw, whilst the inverted-trap butt-plate of the LSA rifle has the upper fixing screw orientated through at an angle near the top tang, rather more reminiscent of a Lee-Metford rifle than the Short Magazine Lee-Enfield rifle which it was intended to represent. David Penn, of the Imperial War Museum, reports from his own records that the early production LSA rifles had the bottom-hinged trap configuration, as too did both the original Royal Small Arms Factory ( Enfield) prototype, shown earlier on this page, and the first LSA production rifle submitted to the Pattern Room - serial number 1. Later LSA W.O.P. rifle manufacture appears to have conformed with the BSA production, with the top-hinged trap. The Imperial War Museum holds one early example of the repeating version of an LSA rifle, serial number 24, which is fitted with the more common top-hinged butt-trap, suggesting that very few LSA magazine-fed rifles, if any production, ever sported the bottom hinged version. It is by no means certain, but David Penn suspects that the London Small Arms Company used separate numbering series for the single-shot rifle and repeating rifle production. This being the case, then perhaps only a few hundred single-shot rifles ever left the factory with the bottom hinged trap version of the butt-plate. It would be useful if any owner of so specified a rifle could advise us if the serial number is greater than 531.

Please see the SURVEY DETAILS TABLE where such information can be submitted or email: Miniature-Calibre-Rifles@rifleman.org.uk

Please direct any queries relating to the Leagues to: HARC-MRL@rifleman.org.uk



The appropriate sections of the drawings ( Miniature Rifle - R.S.A.F. Drg. No. 2322A ) and alternative specification drawings are reproduced below by kind permission of the Trustees of the Imperial War Museum, who hold the originals.

Left: the production specification butt-plate............................................................................

........................................................................and right: the alternative believed never used by BSA but taken up initially by the London Small Arms Company for their own production.

...............

The drawing no. 2322A of alternative components, (which superseded the first numbered 2322), also illustrated both the specifications for the chequering on the wrist of the higher quality special finish ( latterly known as the "DeLuxe" rifles ) along with the plans for the military style "lengthened fore-end" shown as the upper rifle in the very first image on this page.

BSA designed a centre sling-swivel for fitment in place of the standard rear bedding screw. This came about as a result of the initial intended use of the rifle for target shooting. However, whilst the performance of the W.O.P. rifle was adequate for basic training, it was soon totally outclassed by B.S.A.'s subsequent designs; particularly that of the B.S.A. Model No.12 Martini actioned rifle, but even by the more simple and cheaply priced rifles such as their Model No.1 and Model No.2 dual-purpose sporting/target rifles.

This basic design of sling swivel was the precursor to those used on both the S.M.L.E., and subsequently on the Lee-Enfield No.4 rifle and its sniping version the No.4T as combination trigger-guard bedding screw and sling-swivel mount.

Left: the patent free rotating sling-swivel

fitted in front of the magazine way

on the Imperial War Museum's production exhibit.

Right: the January 1907 patent for the swivel,

subsequently, in one form or another, a familiar fitment to many a British Service rifle.

Image by courtesy of the Trustees of the Imperial War Museum



The rear / lower sling swivel can be seen, left,

with the most commonly used leather sling attached,

with the stud and tie reminiscent of that seen on

early full-bore Enfield service rifles

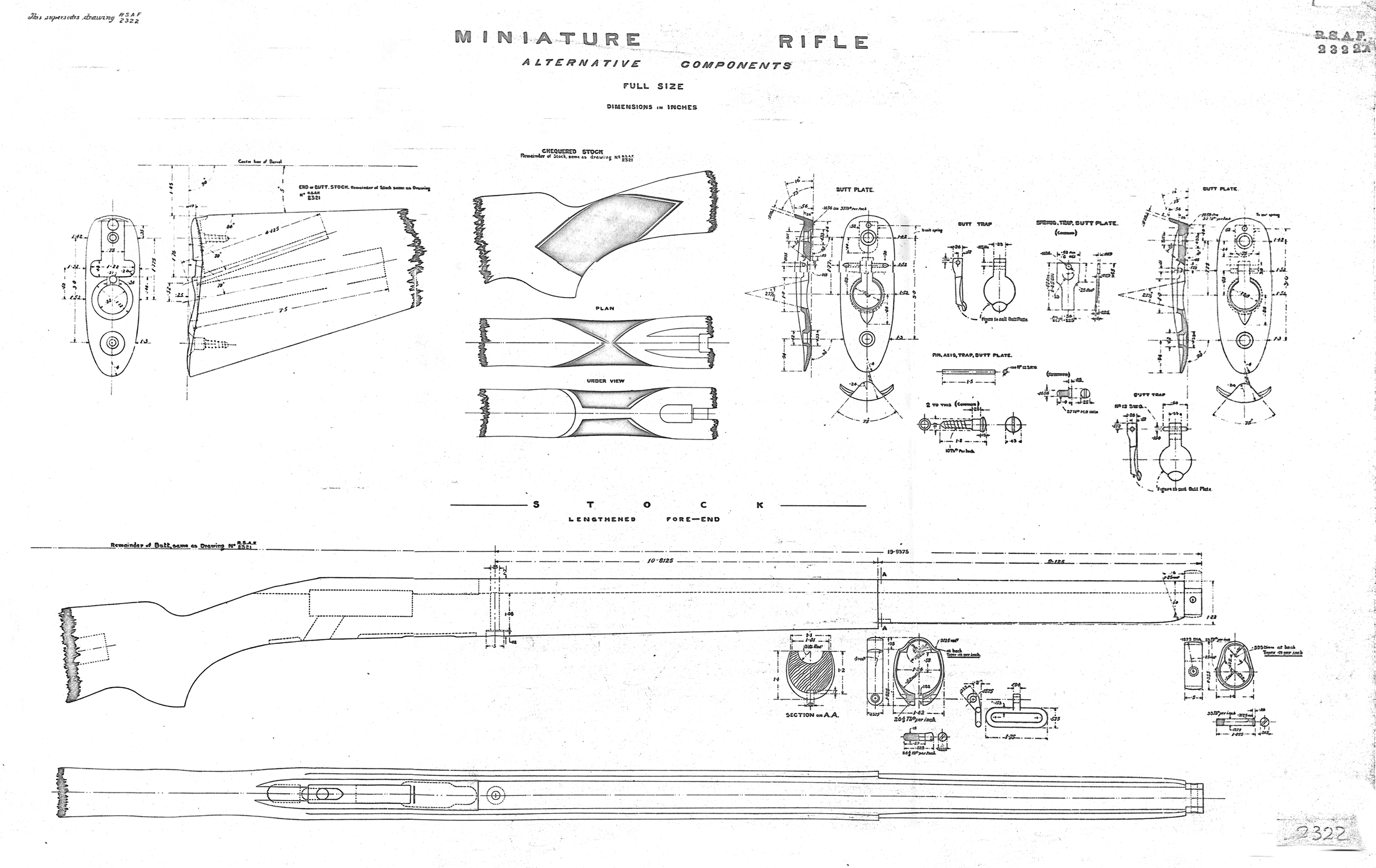

Below is the Royal Small Arms Factory drawing no.2232A of the "Alternative Components" for the rifle. These include both the DeLuxe chequered woodwork and the military full-length fore-end offered as later production options each previously discussed and illustrated.



Image of drawing copied in sections by courtesy of the Trustees of the Imperial War Museum and reconstructed by us .

We hope to be able to bring you the main drawings for the production rifle in due course, with the kind assistance of the staff of the Enfield Pattern Room at the Leeds Royal Armouries.

Again by kind permission of the Trustees of the Imperial War Museum, we can show you the R.S.A.F. drawings of the 5 round production magazine and its components.



Further to the reputation earned by the W.O.P. rifle, we include some contemporary comment by some famous shooting pundits of the day.

The latter of these reports, by Ernest Robinson, can be described as little less than damning!



L.R. Tippins, in his 1910 edition of "The Rifleman's Companion", wrote honestly and fairly as follows:

" The War Office miniature is a boys' rifle in its essential features. It is not a bad rifle, especially with latest improvements, which were, however, very much needed. No makers, and few vendors, have yet succeeded in making any profit on it. A better rifle, in the writer's opinion, on the same lines, is the B.S.A. bolt rifle, at a lower price. It is generally acknowledged to be the best value at the price ever produced.
The best rifle for members of the service, is a service pattern -22, fitted with sights for service and for Bisley. This will do more than anything else to teach the rifleman to handle the service rifle; but he must remember that the recoil of the service rifle introduces a further problem, and his hold should be firm and consistent, and not allowed to degenerate into loose and lazy dandling. The same rifle may be fitted with match sights, and used for preparation for match rifle work.
The American rifles are very popular, especially the Stevens Ideal. It is not, in some respects, as good a rifle as the Winchester Single Shot, but it was pushed harder. The barrels are always good, and the actions moderate. The extraction is poor, but the barrels shoot any sort of cartridge reasonably well. Many of the other -22 rifles will only do well with some particular make of cartridge. The Winchester rifles are always well made, and the barrels accurate in bore and rifling. They are not so well known here as the Stevens, but are certainly in no way inferior to them. There are other rifles which might be mentioned if space permitted. Some of them are like the curate's egg, " good in parts," but putrid in others—and of some the trade might very well be much ashamed."

In the first edition of the edition of "The Citizen Rifleman" in 1906, when the W.O.P. rifle had barely " hit the streets", E.J.D. Newitt, commenting factually on the inception of the rifle and its specification, wrote:

"In 1895 the French Government issued a manual for the instruction of pupils in the primary schools, and this has since been systematically carried out and the results very favourably reported upon by the Minister of War. Annual Government grants to enable the schools to provide rifles and range appliances have been made for some years past, the practical utility of which is evidenced by the fact that this grant is increased in amount every year.
In the latter part of 1905, a Committee of the British War Office, assisted by representatives of the National Rifle Association and Society of Miniature Rifle Clubs, met for the purposes of determining the details of a low-power rifle to meet the requirements of Civilian Rifle Clubs, schools and other organisations for teaching marksmanship in England.
' In 1906 a complete specimen, constructed at the Government Small Arms Factory at Enfield, was adopted, sealed as a pattern, and is now in course of manufacture by the Birmingham Small Arms Co. and the London Small Arms Co.
The calibre is .22, and the pitch of the rifling is suited to the .32-5-40 cartridge. The bolt action is similar in appearance and operation to that of the British Service rifle. The stock has a pistol grip and a short fore-arm, terminating about eight inches from the muzzle. The weight is 5 lbs. 5 ozs., the barrel being tapered towards the muzzle, and somewhat thinner and lighter than the best examples of American .22 calibre rifles.
The sights are of military pattern, the backsight permitting of vertical adjustment by means of a slide resting upon an inclined ramp, and of lateral adjustment by means of a screw. The front sight, owing to the tapering of the barrel and height of the back-sight, has a total height of three-quarters of an inch, the point being protected by a neatly designed hinged cover. The radius between the sights is 18 inches. The Continental system of long pull or draw trigger, and swivels and sling similar to those of the Service arm, which this rifle resembles in miniature, have been adopted."

Immediately post the First World War (1914-18) , there was absolutely no mention of the War Office Miniature rifle

in the then new edition of "The Citizen Rifleman"

Just prior to the Great War (1914-18), two British officers, H. Ommundsen and E.H. Robinson, wrote the famous reference book "Rifles and Ammunition".

Lt. Ommundsen was killed early in the War, but Ernest Robinson survived to continue penning a number of rifle training books, including " Rifle Training for War" which he first published in 1914 and re-edited, as Captain, for later publication in 1940 during WWII. He was destined to become, at Bisley in 1923, a winner of the prestigious " King's Prize" for rifle shooting.

In "Rifles and Ammunition" in 1915, they wrote of the miniature rifle scene as follows:

"In 1904 the National Rifle Association and the Society of Miniature Rifle Clubs held a meeting in conjunction at Olympia from April 25 to April 30. The ranges were still 20 yards and 50 yards, but the TARGETS had been altered to conform more nearly to N.R.A. usage, the central being done away with and the bull's-eye, scoring five marks, being reduced to four-fifths of an inch at 20 yards. The prone position was adopted for both ranges at all competitions, with the result that there was considerable improvement as regards the scores. A. J. Comber, the N.R.A. Gold Medallist, was again a prominent competitor, as was also Mr. Fulton, Snr. An interesting feature of this particular meeting was the inclusion of a special competition for ladies, the first of a long series of ladies' competitions which have been a feature of the S.M.R.C. competitions for years past. In 1904 the Stevens and Winchester rifles were still pre-eminent, with the Francotte cadet model a good third. British-made weapons were, however, beginning to acquire a reputation, and among these the models manufactured by Greener had the biggest following. There was also on the market the " Certus" rifle made by Messrs. Cogswell & Harrison, a model which has a considerable interest because it foreshadowed in general design the cadet rifle which was soon to be fathered by the War Office.

By the end of 1905 the civilian rifle movement had got such a hold on the country that the War Office became actively interested, and decided to seal a design to be known as a cadet rifle, to be used by Cadet Corps, Rifle Clubs, and similar organisations. The War Office called to their assistance experts from the N.R.A. and the Society of Miniature Rifle Clubs, and apparently they started out with the very best intentions in the world. The rifle was to shoot the .22 cartridge, and was to cost about 30 shillings. When it was known that the War Office was going to help by the turning out of a cheap and really efficient rifle, the rifle club members were in high glee. But bitterly were they disappointed when the completed article came out. The War Office miniature rifle was doomed to failure from the start.
It shot quite decently, because it was manufactured by the Birmingham Small Arms Company and the London Small Arms Company, who know how to manufacture rifles to shoot well, but the design passed by the War Office will not permit of the rifle being sold at less than 45s. or 55s. fitted with magazine to hold five cartridges, whereas there were already several excellent rifles on the market at about the same price. The War Office miniature rifle was too light for ordinary use, as 5 lbs. will not give sufficient steadiness for the best shooting. The hollow form of the rifle was expensive, with many unnecessary refinements. A little later the Birmingham Small Arms Company showed what could be done by turning out a bolt-action rifle, the bolt of which was very similar to the War Office miniature bolt, at a price of 30s. Despite the activities of the War Office and some of the big firms, the real boom of the civilian rifle movement did not come until a genius in the gun trade had discovered that it was possible to convert old Martini-Henry rifles to fire the .22 bullet. Who this genius was it is difficult at this date to say.
To that well-known gunsmith, Mr. W. W. Greener, is usually given the credit for first showing that these old rifles could be fitted with new barrels, bored eccentrically so that the old striking-pin could be utilised for detonating the primer of the rim-fire cartridge. Once the idea had taken on, the conversion
of Martini-Henry rifles went on apace. The Society of Miniature Rifle Clubs and the National Rifle Association secured from the War Office the right to convert these weapons and to sell them at 25s. to members of clubs affiliated to them. The converted Martini, as it was called, is the most excellent cheap rifle it is possible to obtain. It is of correct military weight in nine hundred and ninety-nine cases out of a thousand, and it shoots well enough to put ten shots in succession into a half- inch carton at twenty-five yards. It is not easily damaged, and, in fact, it fulfils all the ideals of a rifle club weapon. "

Fifteen years later, in 1930, Capt. Robinson, G.M., reminisced on the War Office "Miniature" in his new book " Rifle and target". He then said:

"British small-bore rifle manufacturers use exclusively the "miniature Martini" action, which was first developed in the Martini Francotte "carbine" which old hands will well remember as something of a favourite in the early days of the small-bore game when accurate "twenty-two" rifles were difficult to obtain in this country. Talking of the old days, it is somewhat curious to remember that the small-bore rifle, despite a rapidly growing popularity, and despite every effort to set up ranges in every city, town and village in the country, was regarded by Authority as essentially a weapon for boys and youths. Hence this rifle was commonly called a carbine or labelled "Cadet," and hence the ridiculous "War Office Miniature Rifle" which appeared with a Government blessing in 1906, which was greeted with howls of derision, even in those days, and which was probably the worst small-bore rifle that has ever been designed, though most British riflemen will agree that the more recently issued U.S.A. Springfield (1926) .22 rifle runs it very close in general lack of suitability for the work, though it is not, like the War Office miniature, so light that a puff of wind would blow it away. Small-bore shooting is not a military game and any attempt to build a small-bore rifle on military lines is bound to result in failure. This does not mean that the .22 cartridge is not the best and cheapest thing to use to teach military shooting; but it does mean that for military work it should be used in the full size military rifle fitted with a suitable barrel."



Published in 1906, the book "Modern Sporting Gunnery" by Henry Sharp included a chapter on miniature rifles. Within that chapter he made mention of the coming Government miniature rifle, and wrote as follows

"The War office has produced its own model of miniature rifle, of which I understand the bolt, fore-sight protector and back-sight are all of Government design. The other items have been selected from six competing models which were submitted by gun manu­facturers, whose sole reward, I am informed, lies in the honour of contributing ideas which are regarded as unpatentable combinations. Had these gunmakers been responsible for the whole effort, they would not have had much to boast about.
This miniature rifle is very much on the lines of the American small-bore rifles, already alluded to and so familiar here during many years, having the same pitch of rifling, and shooting an American cartridge of .22-bore.

This Government miniature rifle is on the bolt principle.

Length of barrel, 24 inches.
Length over all, 41½ inches.
Weight, 5 lb. 5 oz.
Bore, .22 for long cartridge, rim-fire.
Charge of powder, 5 grs. semi-smokeless.
Weight of bullet, 40 grs.
Length of cartridge, 31/32nds., of an inch.
Length of case, 39/64ths.,  of an inch.
Weight of cartridge, 55 grs.

It is sighted to 200 yards, which is an extreme range for the long '22 cartridge, and is principally intended for indoor use at 25 yards, and also for shooting up to 100 yards, in this respect confirming the mistaken policy adopted by the National Rifle Association with regard to the range for miniature competitions.
The best feature of the weapon is the back-sight. It is of the flap-up pattern similar to the new service sight, and has a wind-gauge bar, though of an antiquated pattern. The Westley Richards sight of this pattern is far superior and of more mechanical construction.
This new Government weapon has not yet been subjected to a thorough test, but it may prove successful within its limit. If produced cheaply, it may have a demand, but the civilian who takes rifle-shooting seriously is more likely to prefer one of the superior rifles of large calibre and longer range which I have described.

In a small but very instructive pamphlet, entitled The Art of Shooting with the Rifle, published in 1888 by the late Sir Henry Halford—who gave a life-long devotion to the art of rifle-shooting —we read at the conclusion of his work—
"I shall be well repaid for my trouble if I can induce one Englishman to become a rifleman. Believe me, the use of the rifle is a sport in itself. More than that—and far more-- the rifle of the present day is the long-bow of the middle ages. If the youth of England could use the rifle, the strength and power of the United Kingdom would be invincible."
When this experienced rifle-shot uttered these words, he was only foreshadowing what we all hope may be the outcome of the civilian rifle movement.
"

The whole of this informative piece is available via this link - Miniature Rifles by Henry Sharp.

Next in our presentation, shown below are three articles (two photo reproductions and one text), taken from the S.M.R.C. journal, "The Rifleman" in April, September and October 1906, heralding the War Office Pattern rifle which had been so much talked about and eagerly awaited. Each article relates a view on the introduction and specification of the 'new' rifle. Much relevant information can be derived from careful perusal of these pieces. Interestingly, the earliest, April 1906, piece illustrates the magazine-fed rifle, whilst later in the year it is the single shot version which is described.

" THE NEW STANDARD MINIATURE RIFLE - APRIL 1906 "

"THE WAR OFFICE MINIATURE RIFLE, .22 CALIBRE - SEPTEMBER 1906

In October 1906, Lieutenant Colonel Burgess wrote the following piece on the "War Office Miniature"

with informative notes on a number of its contemporaries.

"NOTES ON MINIATURE RIFLES, &c.

The War Office having adopted the .22 calibre rim-fire cartridge for its new standard miniature rifle, a few remarks on this may be of interest.
The ".22 " Long Rifle " cartridge having a bullet of 40grains, driven by 5 grains of black powder, is very accurate, though of course with a high trajectory to 200 yards, to which range the new standard rifle is sighted.
The "'.22 Short " cartridge, which can also be used in rifles chambered for the -22 " long rifle." has a 30 grain bullet with a 3 grain powder charge. It is extremely accurate to 50 yards, '(the " "22 conical bullet cap" (C.B.C.) which is only the "22 short with a shorter case and lighter charge, is also very accurate to 20 yards.
All .22 R.F. cartridges loaded with black powder are very reliable if of one of the well known American brands, such as the Winchester, U.M.C,, and Peters, but with black powder the folding requires frequent wiping out of the bore. I am not sure that the smokeless are equally reliable - they certainly were not when first introduced.
Rifles specially bored and chambered for the .22 short cartridge shoot better with it, but it is convenient to have a rifle to carry all the three kinds of ammunition, It would make little difference except perhaps in the hands of an expert.


.22 CALIBRE MINIATURE RIFLES


The War Office Pattern rifle has a bolt action manipulated like the service rifle ; it is also fitted with a small box magazine, which can also be attached if required, holding five rounds. The sights are not unlike those of the new short service rifle and are graduated to ranges of from 25 to 200 yards; they are fitted with a wind-gauge arrangement. The rifle has a 25-inch barrel and weighs about 5lbs.
There are many other cheap and reliable .22 calibre rifles, mostly of American Make. The .22 single shot
Winchester, 1900 model, bolt action rifle, is a very accurate little weapon, its cost is only 21/- (shillings). A later pattern of this rife, weighing a pound or so more (with a heavier barrel) can he had for a few shillings extra; it would give better shooting of course. The .22 single shot Stevens, bolt action rifle, costing about the same, is also a very reliable arm. The same may be said of the .22 Savage bolt action single shot rifle, which, in action, worked by an under lever, and a detachable barrel, it is heavy enough to give steady shooting and is very accurate. The cost is about 30/-. The Winchester and the Stevens " Ideal " single shot .22 calibre rifles are very superior weapons, also they are extremely
accurate. Their price is of course considerably higher. There are many .22 calibre repeating rifles also which shoot extremely well, but I do not see the necessity of a repeater for target practice. Several English gunmakers are now turning out reliable .22 calibre rifles at a moderate cost from 42/- upwards.
"

With regard to the introduction of the magazine-fed rifle, it is relevant to note that, in the following Army and Navy Stores Catalogue entry of 1907 the "repeating" option was still "in the course of manufacture" and implied that it should soon be available and that orders should be passed without delay.



As a Post Script, we leave you with an copy of a late 1906 advertisement by the London Small Arms Co. Ltd., for their version of the W.O.P. rifle, proudly publicising successes achieved at the main Miniature Rifle shooting meetings of the year. Ironically, the claims are not for the "War Office" miniature rifle, but for their miniature calibre service rifles in the form of the obsolescent "Long" Lee-Enfield. Sold commercially, such expensive rifles - at nearly twice the cost of the W.O.P.rifle - would not have been conversions per se, but rifles newly built using new spares. Such rifles bear no military markings, usually only the manufacturer's own company marking on the right-hand side of the butt socket. The superior finishing of the metal and woodworking is often a give-away in this respect. Whilst originally fitted with purpose manufacture solid .22" calibre barrels, many such rifles have been "Parker-Rifled" in later years. One so fitted, and having been carefully cleaned and cared for, will still shoot to a significant degree of accuracy, certainly within a group of half an inch at 25 yards in the hands of a competent shot.

The single extractor bolt/action, barrel markings and butt-stock cartouche of an early 1906 London Small Arms version of rifle are shown below for comparison with the BSA marks.

It will be seen that the patent registration no.475418 is identical to the BSA markings, as would be expected.

The Government stamping of the Crown with " MIN. RIFLE - W.O. PATT." ( Miniature Rifle - War Office Pattern)

is also common to the rifles of both manufacturers

The cartouches, LSA to the left and BSA to the right, are shown here near actual size.

LSA put their logo onto on the right-hand-side of the butt, as with either of the two leftmost images, whilst BSA traditionally placed their more familiar "piled arms" trade mark onto the left-hand-side of the butt, as the right-hand image.

.................................................

Below is an image of the front of the 1906 London Small Arms Company brochure for the War Office Miniature rifle,



A point worthy of mention is that these rifles were owned and used by those at all levels of society. The National Maritime Museum at Greenwich (London) holds, in its firearms collection, a BSA 1908 manufactured War Office Pattern Miniature rifle (believed serial no. 5340) originally owned by Admiral Lord Cunningham (born 1883 died 1963). During his illustrious career, Lord Cunningham was Admiral of the Fleet, Commander-in-Chief of the Mediterranean Fleet, August 1940, and served as First Sea Lord between 1943 - 1946.




In relation to dating and serial numbers, David Penn, of the Imperial War Museum, wrote to an enquirer from the H.B.S.A.

(The Historical Breech-loading Small-arms Association) that:

"When I started looking into W.O. Miniature Pattern rifles some years back, I came to the following conclusions:

Both B.S.A. and L.S.A. Co. started their serial ranges at 1.

I have seen LSA Co. rifles with date marks between 1907 and 1911, and with a high 1911 serial number of 4,855 that indicates average production of less than 1,000 a year. To confuse the issue, however, I have a report of a LSA Co. single shot rifle dated 1913 with a serial number of 2,480, which I have not examined. I suspect that LSA Co. had a separate serial range for its magazine version, as number 24 is held in the Imperial War Museum collection.
BSA seems to have stopped putting a year of manufacture on its W.O. Miniature Pattern rifles in 1911 (I have not come across one that is later), by which time its serial numbers were in the 8,000 range. By 1914 or early 1915, when production I think ceased, the highest serial number that I have found was 21,505.
[Our survey now updates that highest serial no. to 21,908 - Ed]. The rifle was still being advertised in the 1914 A.J. Parker catalogue.

The information on these pages is obtained from best known available sources.

If you have details to add, or are aware that anything we have mentioned is in error, then please let us know.

Additionally, we are carrying out a survey of rifles with respect to the relationship between manufacturer, serial number and date of manufacture to enable more definite reporting of such subjects for readers' benefit. If you own or have access to one of these rifles, we would be most grateful for such information. We have tabulated (link below) a reference table to illustrate what we are trying to acheive. We are frequently asked to provide owners with an accurate date for the manufacture of their new acquisition or family heirloom, and this is the means to that end.

or CLICK HERE TO VIEW THE DATA TABLE & SURVEY DETAILS

N.B. We have been made aware that a change of website hosting had affected the survey form.
If you have tried to submit data and the submission failed, then do please try again with the updated form.

Click here to access a Chronology of Enfield genre Training Rifles, Adapters & Cartridges


ACKNOWLEDGEMENTS

The history of the War Office Pattern Miniature rifle has for many years been much researched by David Penn who was, until his semi-retirement into consultancy work, Keeper of Exhibits & Firearms at the Imperial War Museum. Our thanks must go to him for his considerable assistance with the provision of information and advice relating to any number of the rifles and subjects dealt with by this website.

We must also acknowledge the so freely and good humouredly given assistance of the late Herbert Woodend, Curator - and most significant developer - of the Ministry of Defence Enfield Pattern Room Collection, originally at Enfield, later at the Royal Small Arms Factory (Nottingham) and latterly removed to the Royal Armouries premises at Leeds, where it remains a working collection and resource.

With thanks also to Brian Woodall at the N.S.R.A. for unearthing the contemporary articles from the S.M.R.C. "Rifleman" archives.

Return to: SITE MAP or MENU PAGE or TOP of PAGE


Get your counter
