The heavy barrelled Model No.8 below has been retro-fitted with the BSA No.FS22 or Parker-Hale No2 tunnel fore-sight introduced circa 1930. These sights are virtually indistinguishable without close inspection of the manufacturer's markings. The rifle would, more usually, have left the factory with the BSA No.19 small-tunnel fore-sight.
Below: a circa 1912 advertisement for the Model No.8
As shown above, the No.9 Model was as the No.8 but fitted with a long fore-end.
In its original configuration, with a tapered barrel and short, tapered fore-end, the Model No.8 rifle weighed in at 6lbs. 9ozs. The Model No.9 rifle, with a longer fore-end, weighed just 5ozs. more.
No image of a No.9 has yet been found to confirm the exact configuration of this longer woodwork, which may, or may not, resemble that of the Model Nos.10 and 11 rifles, which carry the quasi-military fore-end with a single front barrel-band.

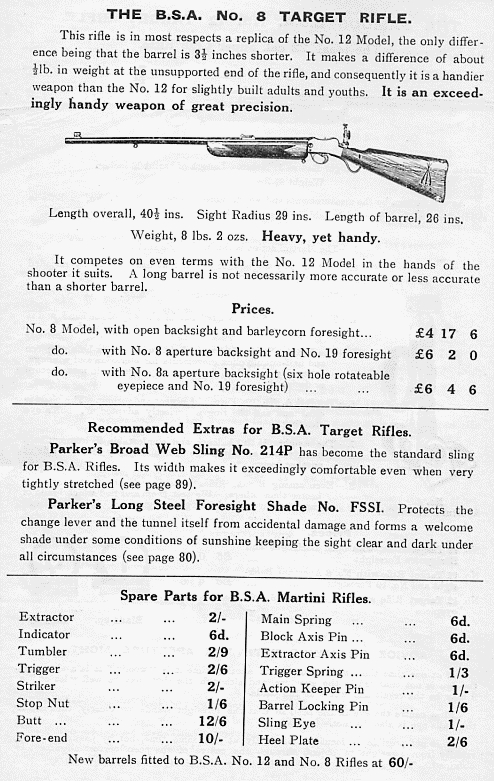

Below: a 1933 advertisement
The later Model No.8 rifle had increased in weight considerably, by virtue of the larger fore-end now being fitted as more suitable for target shooting and the heavier - almost parallel sectioned - target barrel.
All Model No.8 rifles were manufactured on the "narrow" one inch wide action body - unlike the Models 12, 13, 12/15 and 15, which were all built on the one-and-a-quarter inch ( 1.25") wide action.

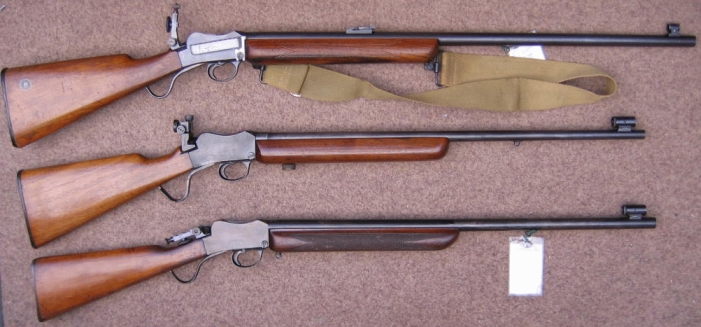

Below is a comparison image of the Model No.12 (top), Model No.13 (centre) and Model No.8 ( bottom) rifles
